COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12249		Well Classification: GW Status: PR - 12/1/2009
Well Name/No:N. PARACHUTE #MF06B-4 CO4 696
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2009
FacilityID:284640LocationID:311638
County:GARFIELD #045Location:NENW 4 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5817 ft.
Basin:PICEANCE BASIN
Planned Location:1013FNL  2490 FWLLat/Long: 39.561639 / -108.111669Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.561800 / -108.111650Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

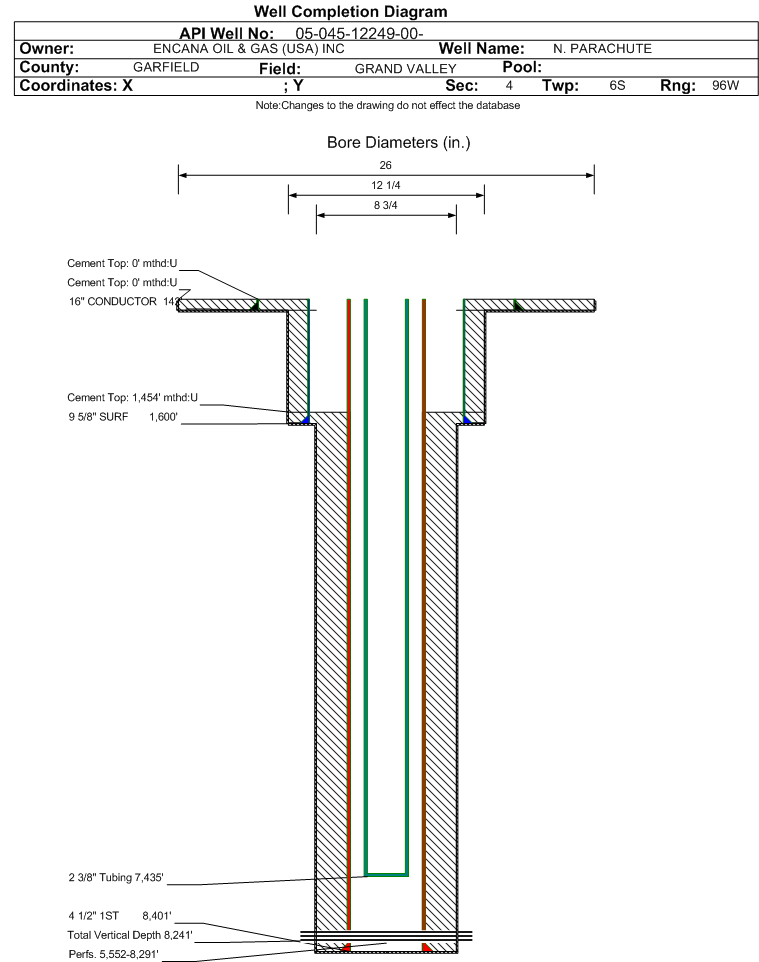

Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2009             Measured TD: 8340 ft.    Vertical TD: 8241 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2009
Wellbore PermitDIRECTIONAL
Permit #:20080963 Expiration Date:4/13/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1655 FNL  1985 FWL
Bottom Hole Location:Sec:4 Twp: 6S 96W Footage: 1655 FNL  1985 FWL
Proposed Depth/Form:10083 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/12/2009
Spud Date:9/30/2008Spud Date Is:ACTUAL
Measured TD:8340 ft.Measured PB depth:8356 ft.
True Vertical TD:8241 ft.True Vertical PB depth:8275 ft.
Top PZ Location:Sec:4 Twp: 6S 96WFootage: 1635 FNL  2006 FWL
Bottom Hole Location:Sec:4 Twp: 6S 96WFootage: 1635 FNL  2006 FWL
Log Types:CBL, MUD, RST
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 142 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 142 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1600 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 565, Top: 0 ft., Bottom: 1588 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8401 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1248, Top: 1454 ft., Bottom: 8401 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4760 ft.8315 ft.NN
ROLLINS8315 ft.8421 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/1/2009                 Interval Top: 5552 ft.    Interval Bottom: 8291 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:9/28/2009Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/15/2009
Treatment Summary:TREATMENT DATES: 8/24/2009 - 9/15/2009. STAGES 01 - 14 TREATED W/ A TOTAL OF: 71,796.3 BBLS SLICKWATER; 168 BBLS 15% HCI; 166 BBLS 24% METHANOL. NO SAND.
Tubing Size:2.375 in.Tubing Setting Depth:7435 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/1/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1170
CALC_MCF_GAS 1177
CASING_PRESS 982
MCF_GAS 1177
TUBING_PRESS 451
Perforation Data:
Interval Top:5552 ft.# Of Holes:420
Interval Bottom:8291 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)138
Total Gas Produced (MCF)25259
GOR183036
GOR DeterminationMCFE
Average BOE per Day12.314
Average MCFE per Day71.400

 Federal Financial Assurance  i

 Tribal Well  i No
