Wellbore #00 Wellbore Classification: GW Status: PR - 9/30/2008 Measured TD: 8605 ft. Vertical TD: 8449 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/30/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20080308 | Expiration Date: | 2/28/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 197 FSL 2084 FWL | | Bottom Hole Location: | Sec:15 Twp: 6S 94W | Footage: 197 FSL 2084 FWL | | Proposed Depth/Form: | 8775 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

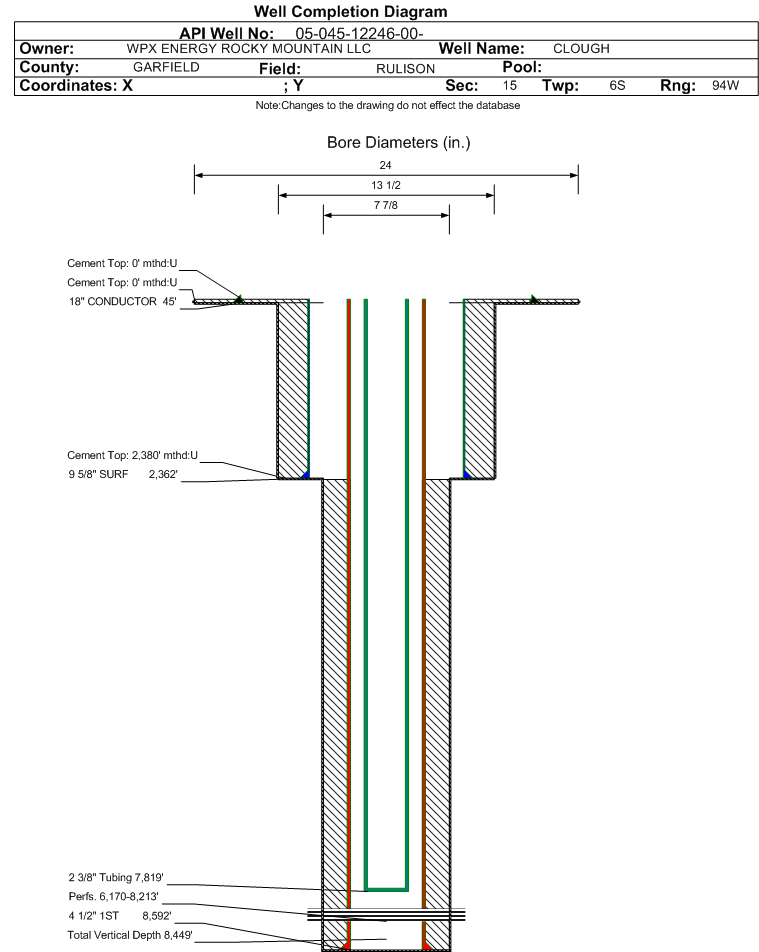

| Wellbore Completed | | Completion Date: | 5/26/2008 | | Spud Date: | 5/17/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8605 ft. | Measured PB depth: | 8558 ft. | | True Vertical TD: | 8449 ft. | True Vertical PB depth: | 8402 ft. | | Top PZ Location: | Sec:15 Twp: 6S 94W | Footage: 186 FSL 2063 FWL | | Bottom Hole Location: | Sec:15 Twp: 6S 94W | Footage: 186 FSL 2063 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2362 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 535, Top: 0 ft., Bottom: 2361 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8592 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1021, Top: 2380 ft., Bottom: 8592 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2121 ft. | | N | N | | MESAVERDE | 4759 ft. | | N | N | | CAMEO | 7586 ft. | | N | N | | ROLLINS | 8498 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/30/2008 Interval Top: 6170 ft. Interval Bottom: 8213 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/15/2008 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/14/2008 | | Treatment Summary: | 3069 GALS 7 1/2 % HCL; 773300# 20/40 SAND; 21708 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7819 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/30/2008 | Test Method: | FLOWING | | Hours Tested: | 19 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 846 | | CASING_PRESS | 768 | | MCF_GAS | 670 | | TUBING_PRESS | 506 |
| | Perforation Data: | | Interval Top: | 6170 ft. | # Of Holes: | 126 | | Interval Bottom: | 8213 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 38 |
| Total Gas Produced (MCF) | 15712 |
| GOR | 413473 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.526 |
| Average MCFE per Day | 43.644 |
| Federal Financial Assurance | i | |
|
|
