Wellbore #00 Wellbore Classification: GW Status: PR - 3/6/2006 Measured TD: 8761 ft. Vertical TD: 8532 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/6/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061080 | Expiration Date: | 5/7/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2440 FSL 1950 FWL | | Bottom Hole Location: | Sec:15 Twp: 6S 94W | Footage: 2421 FSL 1986 FWL | | Proposed Depth/Form: | 8954 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S2 |
| | |

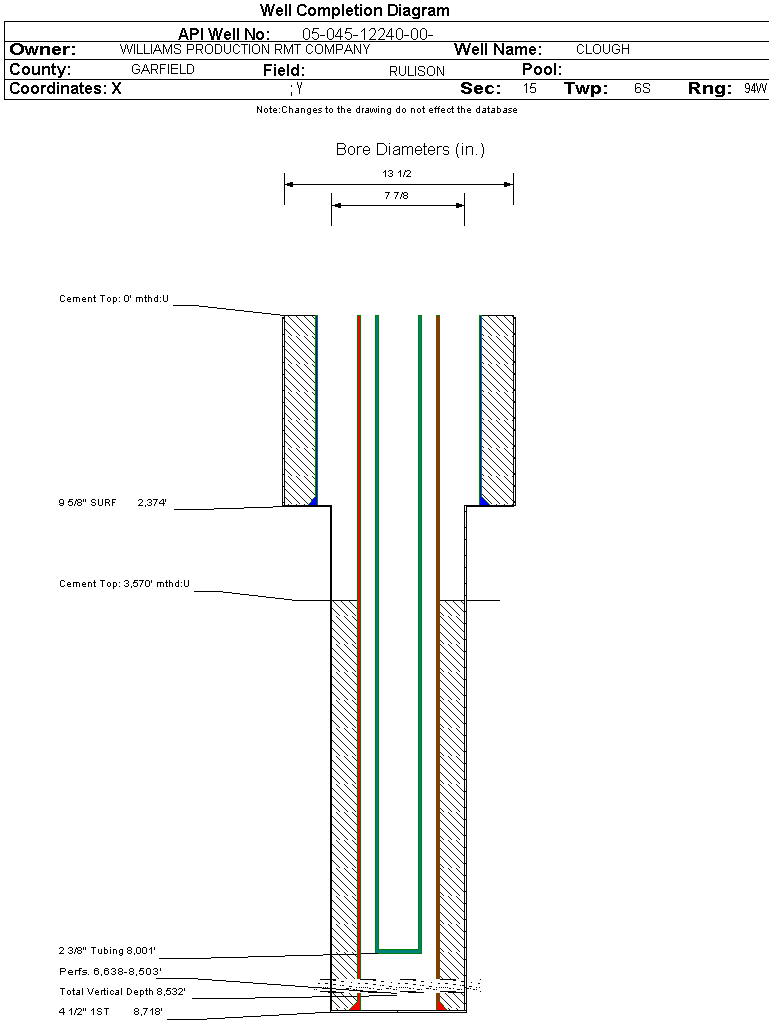

| Wellbore Completed | | Completion Date: | 2/7/2007 | | Spud Date: | 1/16/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8761 ft. | Measured PB depth: | 8642 ft. | | True Vertical TD: | 8532 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:15 Twp: 6S 94W | Footage: 2434 FSL 1988 FWL | | Bottom Hole Location: | Sec:15 Twp: 6S 94W | Footage: 2434 FSL 1988 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2374 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 527, Top: 0 ft., Bottom: 2373 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8718 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1317, Top: 3570 ft., Bottom: 8717 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2124 ft. | | N | N | | MESAVERDE | 4904 ft. | | N | N | | CAMEO | 7710 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 7/27/2007 Interval Top: 6638 ft. Interval Bottom: 8503 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/14/2007 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/13/2007 | | Treatment Summary: | 2500 GALS 7 1/2% HCL, 656600# 20/40 SAND, 17333 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8001 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/27/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1198 | | MCF_GAS | 1118 | | TUBING_PRESS | 941 |
| | Perforation Data: | | Interval Top: | 6638 ft. | # Of Holes: | 104 | | Interval Bottom: | 8503 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 30 |
| Total Gas Produced (MCF) | 14026 |
| GOR | 467533 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.706 |
| Average MCFE per Day | 38.920 |
| Federal Financial Assurance | i | |
|
|
