COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-12235		Well Classification: GW	Status: PR - 10/20/2008
Well Name/No:	CLOUGH #RMV 157-15 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	10/20/2008
FacilityID:	284630	LocationID:	335068
County:	GARFIELD #045	Location:	SWSW 15 6S94W 6
Field:	RULISON - #75400	Elevation:	5770 ft.
Basin:	PICEANCE BASIN
Planned Location:	1067FSL 1120 FWL	Lat/Long: 39.521054 / -107.880022	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.521053 / -107.880020	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 10/20/2008 Measured TD: 8550 ft. Vertical TD: 8464 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 10/20/2008
Wellbore Permit			DIRECTIONAL
Permit #:	20080305	Expiration Date:	2/28/2009
Proposed Top PZ Location:	Sec: Twp:	Footage: 837 FSL 2003 FWL
Bottom Hole Location:	Sec:15 Twp: 6S 94W	Footage: 837 FSL 2003 FWL
Proposed Depth/Form:	8651 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2

Wellbore Completed
Completion Date:	5/4/2008
Spud Date:	4/25/2008	Spud Date Is:	ACTUAL
Measured TD:	8550 ft.	Measured PB depth:	8505 ft.
True Vertical TD:	8464 ft.	True Vertical PB depth:	8419 ft.
Top PZ Location:	Sec:15 Twp: 6S 94W	Footage: 829 FSL 2009 FWL
Bottom Hole Location:	Sec:15 Twp: 6S 94W	Footage: 829 FSL 2009 FWL
Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE

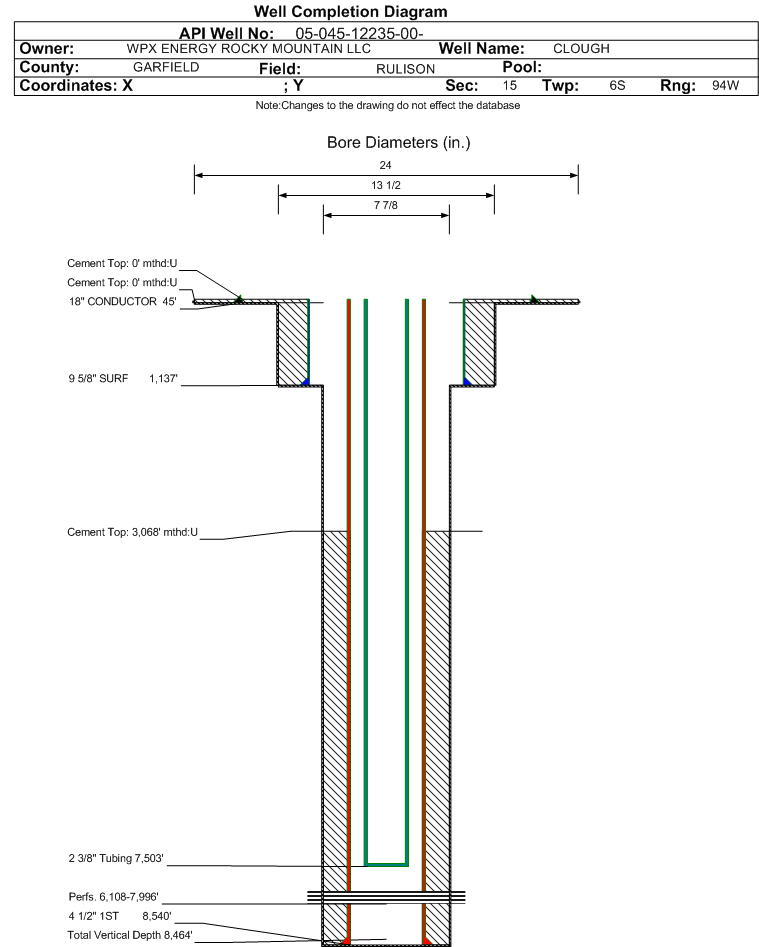

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method:
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1137 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 273, Top: 0 ft., Bottom: 1139 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8540 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 937, Top: 3068 ft., Bottom: 8539 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2076 ft.		N	N
MESAVERDE	4699 ft.		N	N
CAMEO	7522 ft.		N	N
ROLLINS	8444 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 10/20/2008 Interval Top: 6108 ft. Interval Bottom: 7996 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	7/15/2008	Choke Size:	0.188 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/14/2008
Treatment Summary:	2201 GAS 7 1/2% HCL; 1646800# 20/40 SAND; 4264 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7503 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	10/20/2008	Test Method:	FLOWING
Hours Tested:	19	Gas Type:	DRY
Gas Disposal:	SOLD
CALC_MCF_GAS	1172
CASING_PRESS	805
MCF_GAS	928
TUBING_PRESS	540

Perforation Data:
Interval Top:	6108 ft.	# Of Holes:	139
Interval Bottom:	7996 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	44
Total Gas Produced (MCF)	19953
GOR	453477
GOR Determination	MCFE
Average BOE per Day	9.528
Average MCFE per Day	55.286

Federal Financial Assurance

Tribal Well
