Wellbore #00 Wellbore Classification: GW Status: PR - 3/16/2007 Measured TD: 7615 ft. Vertical TD: 7220 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/16/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061100 | Expiration Date: | 4/27/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 440 FNL 30 FEL | | Bottom Hole Location: | Sec:36 Twp: 6S 93W | Footage: 440 FNL 30 FEL | | Proposed Depth/Form: | 7956 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

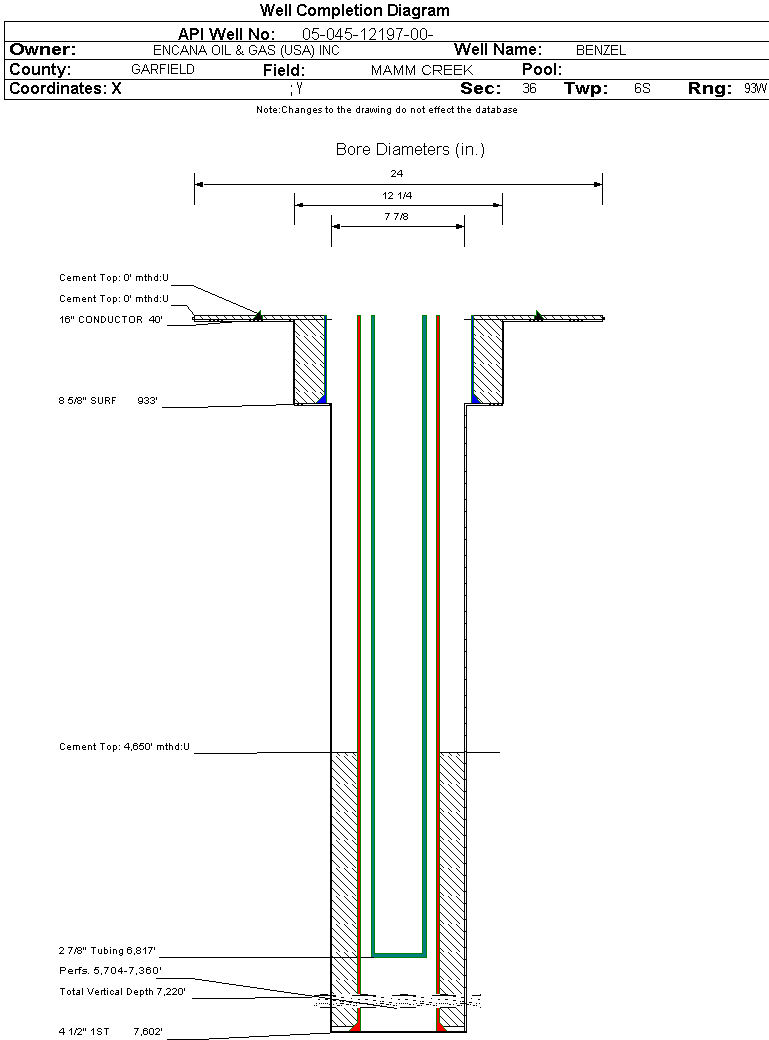

| Wellbore Completed | | Completion Date: | 12/29/2006 | | Spud Date: | 12/17/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7615 ft. | Measured PB depth: | 7553 ft. | | True Vertical TD: | 7220 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:36 Twp: 6S 93W | Footage: 420 FNL 34 FEL | | Bottom Hole Location: | Sec:36 Twp: 6S 93W | Footage: 420 FNL 34 FEL | | Log Types: | RST/GR/CCL/TEMP; CBL/GR/CCL/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 933 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 933 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7602 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 4650 ft., Bottom: 7550 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4494 ft. | N | N | | WILLIAMS FORK | 4495 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 3/16/2007 Interval Top: 5704 ft. Interval Bottom: 7360 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/3/2007 | Choke Size: | 0.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/19/2007 | | Treatment Summary: | STAGES 01-07 WERE TREATED WITH A TOTAL OF 38,982 BBLS OF SLICKWATER AND 980,572 LBS 20-40 WHITE SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6817 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/16/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 288 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 288 | | CALC_MCF_GAS | 782 | | CASING_PRESS | 1650 | | MCF_GAS | 782 | | TUBING_PRESS | 1050 |
| | Perforation Data: | | Interval Top: | 5704 ft. | # Of Holes: | 160 | | Interval Bottom: | 7360 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 75 |
| Total Gas Produced (MCF) | 20610 |
| GOR | 274800 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.942 |
| Average MCFE per Day | 57.672 |
| Federal Financial Assurance | i | Y |
|
|
