COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12174		Well Classification: GW Status: PR - 5/15/2010
Well Name/No:GMU #33-3(K33NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C54737
Facility Status:PRStatus Date5/15/2010
FacilityID:284426LocationID:334632
County:GARFIELD #045Location:NESW 33 6S93W 6
Field:MAMM CREEK - #52500Elevation:6618 ft.
Basin:PICEANCE BASIN
Planned Location:2524FSL  1755 FWLLat/Long: 39.482392 / -107.783106Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.482398 / -107.783122Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/15/2010             Measured TD: 9477 ft.    Vertical TD: 9137 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/15/2010
Wellbore PermitDIRECTIONAL
Permit #:20082502 Expiration Date:7/1/2009
Proposed Top PZ Location:Sec: Twp: Footage: 660 FNL  1980 FWL
Bottom Hole Location:Sec:33 Twp: 6S 93W Footage: 1310 FNL  1970 FWL
Proposed Depth/Form:9811 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC56608X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 32 , Citings Type: PLANNED
Cement:Sacks: 1060, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9811 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 755, Top: 500 ft., Bottom: 9811 ft.
Wellbore Completed
Completion Date:7/6/2009
Spud Date:5/12/2009Spud Date Is:ACTUAL
Measured TD:9477 ft.Measured PB depth:9412 ft.
True Vertical TD:9137 ft.True Vertical PB depth:9072 ft.
Top PZ Location:Sec:33 Twp: 6S 93WFootage: 628 FNL  2007 FWL
Bottom Hole Location:Sec:33 Twp: 6S 93WFootage: 660 FNL  1996 FWL
Log Types:CBL,RST

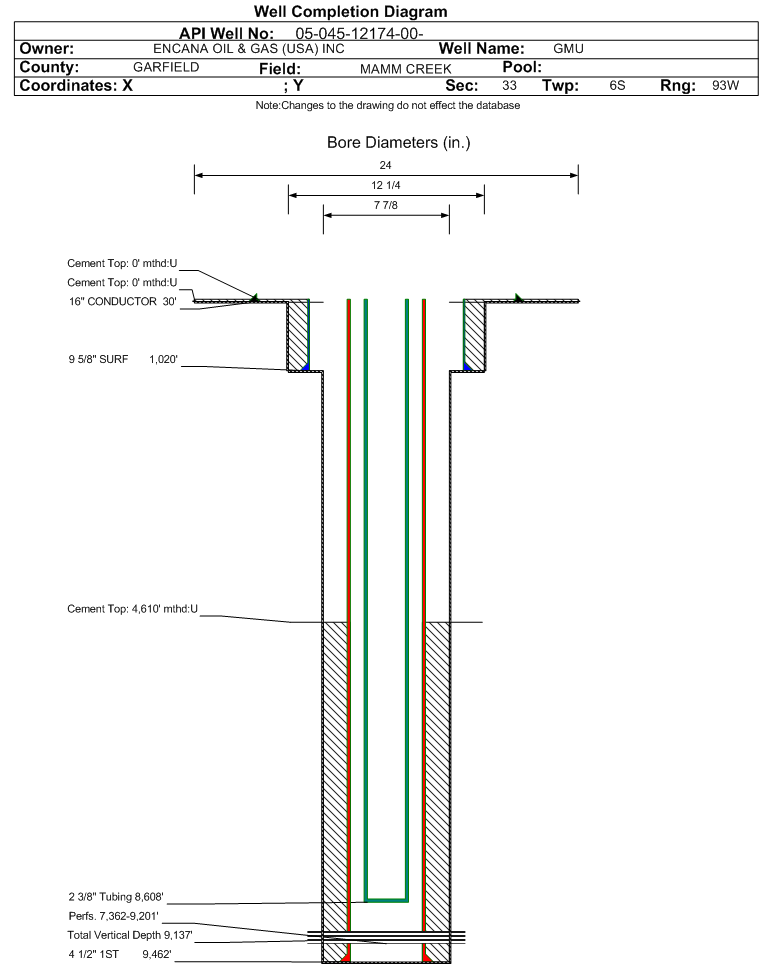

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 30 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1020 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 345, Top: , Bottom: 1025 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9462 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1286, Top: 4610 ft., Bottom: 9462 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
OHIO CREEK5622 ft.6359 ft.
WILLIAMS FORK6360 ft.9333 ft.
ROLLINS9334 ft.9477 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/15/2010                 Interval Top: 7362 ft.    Interval Bottom: 9201 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:3/14/2010Choke Size:24.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/13/2010
Treatment Summary:STAGES 01-07 TREATED WITH A TOTAL OF 52153.3 BBLS OF SLICKWATER, 705257 LBS 20/40 WHITE SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8608 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/15/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 260
BBLS_OIL 16
BTU_GAS 1170
CALC_BBLS_H2O 260
CALC_BBLS_OIL 16
CALC_GOR 89234
CALC_MCF_GAS 1428
CASING_PRESS 1450
GRAVITY_OIL 54
MCF_GAS 1427
TUBING_PRESS 825
Perforation Data:
Interval Top:7362 ft.# Of Holes:189
Interval Bottom:9201 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)7438
GOR218764
GOR DeterminationMCFE
Average BOE per Day3.609
Average MCFE per Day20.912

 Federal Financial Assurance  i Y

 Tribal Well  i No
