Wellbore #00 Wellbore Classification: GW Status: PR - 4/18/2009 Measured TD: 9320 ft. Vertical TD: 9020 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/18/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071352 | Expiration Date: | 4/17/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1330 FSL 330 FWL | | Bottom Hole Location: | Sec:33 Twp: 6S 93W | Footage: 1330 FSL 330 FWL | | Proposed Depth/Form: | 9400 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC56608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

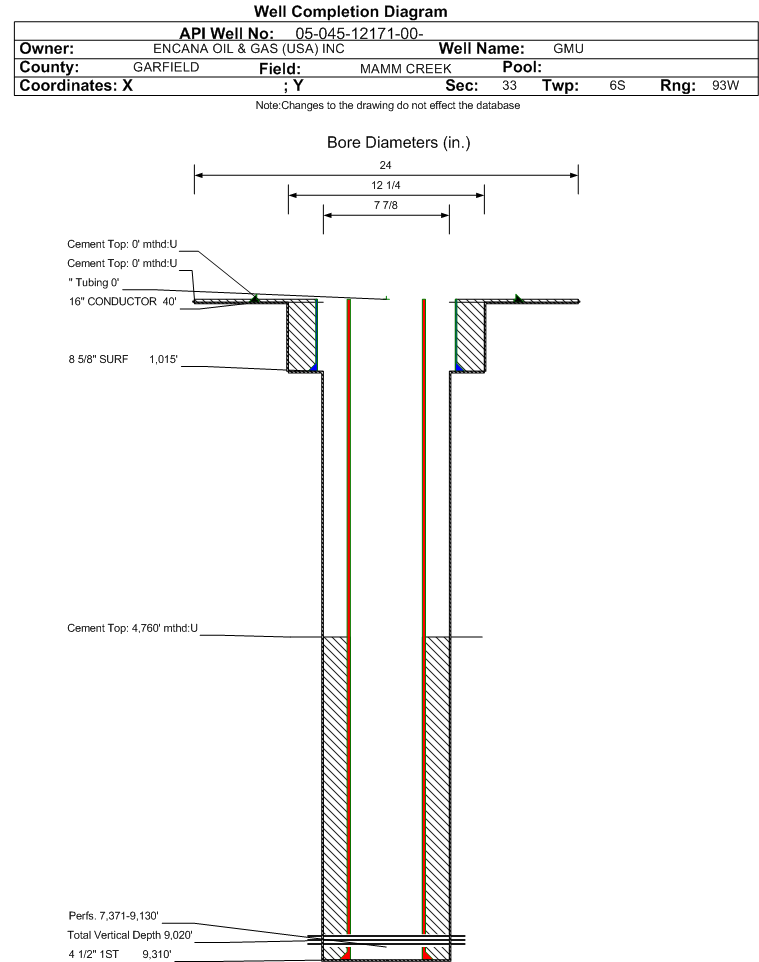

| Wellbore Completed | | Completion Date: | 10/21/2007 | | Spud Date: | 10/4/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 9320 ft. | Measured PB depth: | 9265 ft. | | True Vertical TD: | 9020 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:33 Twp: 6S 93W | Footage: 1342 FSL 315 FWL | | Bottom Hole Location: | Sec:33 Twp: 6S 93W | Footage: 1342 FSL 315 FWL | | Log Types: | RST/GR, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1015 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 712, Top: 0 ft., Bottom: 1015 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9310 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 802, Top: 4760 ft., Bottom: 9320 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 6116 ft. | N | N | | WILLIAMS FORK | 6117 ft. | 9191 ft. | N | N | | ROLLINS | 9192 ft. | 9320 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/1/2011 Interval Top: 7371 ft. Interval Bottom: 9130 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/18/2009 | | Treatment Summary: | SET 4 1/2' 10K COMPOSITE BRIDGE PLUG AT 7280'. TESTED CASING TO 1500 PSI AND DUMP BAILED 2 SX CEMENT ON PLUG. TEMPORARILY ABANDONED WELL 4/18/09 TO DRILL ADDITIONAL WELLS ON PAD. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 16 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 16 | | CALC_MCF_GAS | 1200 | | CASING_PRESS | 1700 | | MCF_GAS | 1200 | | TUBING_PRESS | 1175 |
| | Perforation Data: | | Interval Top: | 7371 ft. | # Of Holes: | 196 | | Interval Bottom: | 9130 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 127 |
| Total Gas Produced (MCF) | 25169 |
| GOR | 198181 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.244 |
| Average MCFE per Day | 71.027 |
| Federal Financial Assurance | i | Y |
|
|
