COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12169		Well Classification: GW Status: PR - 5/1/2010
Well Name/No:GMU #33-3D(K33NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C54737
Facility Status:PRStatus Date5/1/2010
FacilityID:284421LocationID:334632
County:GARFIELD #045Location:NESW 33 6S93W 6
Field:MAMM CREEK - #52500Elevation:6618 ft.
Basin:PICEANCE BASIN
Planned Location:2538FSL  1769 FWLLat/Long: 39.482431 / -107.783056Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.482435 / -107.783072Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2010             Measured TD: 10317 ft.    Vertical TD: 10158 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2010
Wellbore PermitDIRECTIONAL
Permit #:20082501 Expiration Date:7/1/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1310 FNL  1970 FWL
Bottom Hole Location:Sec:33 Twp: 6S 93W Footage: 1310 FNL  1970 FWL
Proposed Depth/Form:9458 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC56608X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 32 , Citings Type: PLANNED
Cement:Sacks: 1060, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9458 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 725, Top: 500 ft., Bottom: 9458 ft.
Wellbore Completed
Completion Date:7/26/2009
Spud Date:5/10/2009Spud Date Is:ACTUAL
Measured TD:10317 ft.Measured PB depth:10246 ft.
True Vertical TD:10158 ft.True Vertical PB depth:10087 ft.
Top PZ Location:Sec:33 Twp: 6S 93WFootage: 1311 FNL  1992 FWL
Bottom Hole Location:Sec:33 Twp: 6S 93WFootage: 1348 FNL  2001 FWL
Log Types:CBL,RST

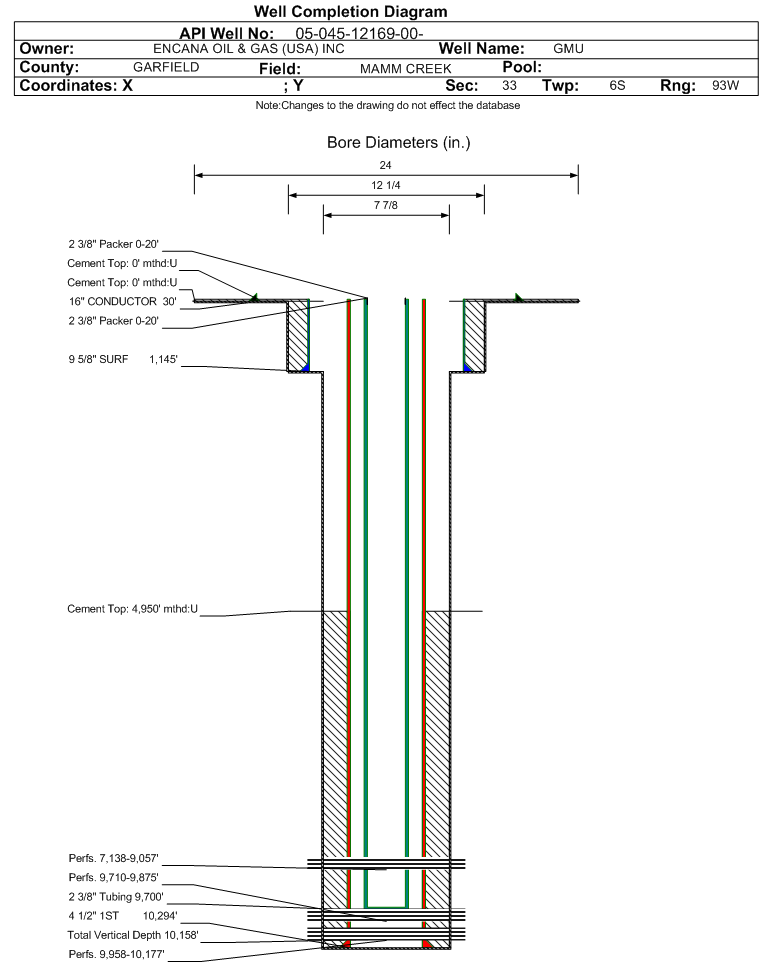

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 30 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 30 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1145 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 373, Top: 0 ft., Bottom: 1160 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10294 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1122, Top: 4950 ft., Bottom: 10298 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2742 ft.5460 ft.
OHIO CREEK5461 ft.6175 ft.
WILLIAMS FORK6176 ft.9108 ft.
ROLLINS9109 ft.9692 ft.
COZZETTE9693 ft.9956 ft.
CORCORAN9957 ft.10317 ft.

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 5/1/2010                  Interval Top: 9958 ft.    Interval Bottom: 10177 ft.

 Completed Information for Formation CORCORAN
1st Production Date:2/25/2010Choke Size:18.000 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/12/2010
Treatment Summary:STAGES 01 TREATED WITH A TOTAL OF 9126 BBLS SLICKWATER, 127385 LBS 20/40 WHITE SAND.
Tubing Size:2.375 in.Tubing Setting Depth:9700 ft.
Tubing Packer Depth:0 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 366
BBLS_OIL 15
BTU_GAS 1170
CALC_BBLS_H2O 366
CALC_BBLS_OIL 15
CALC_GOR 114306
CALC_MCF_GAS 1743
CASING_PRESS 2950
GRAVITY_OIL 54
MCF_GAS 1743
TUBING_PRESS 1975
Perforation Data:
Interval Top:9958 ft.# Of Holes:27
Interval Bottom:10177 ft.Hole Size:0.34 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 5/1/2010                  Interval Top: 9710 ft.    Interval Bottom: 9875 ft.

 Completed Information for Formation COZZETTE
1st Production Date:2/25/2010Choke Size:18.000 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/13/2010
Treatment Summary:STAGES 02 TREATED WITH A TOTAL OF 9813 BBLS OF SLICKWATER, 129606 LBS 20/40 WHITE SAND
Tubing Size:2.375 in.Tubing Setting Depth:9700 ft.
Tubing Packer Depth:0 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 366
BBLS_OIL 15
BTU_GAS 1170
CALC_BBLS_H2O 366
CALC_BBLS_OIL 15
CALC_GOR 114306
CALC_MCF_GAS 1743
CASING_PRESS 2950
GRAVITY_OIL 54
MCF_GAS 1743
TUBING_PRESS 1975
Perforation Data:
Interval Top:9710 ft.# Of Holes:27
Interval Bottom:9875 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/1/2010                  Interval Top: 7138 ft.    Interval Bottom: 9057 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/25/2010Choke Size:18.000 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/15/2010
Treatment Summary:STAGES 03-10 TREATED WITH A TOTAL OF 63762.4 BBLS OF SLICKWATER, 893901 LBS 20/40 WHITE SAND.
Tubing Size:2.375 in.Tubing Setting Depth:9700 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 366
BBLS_OIL 15
BTU_GAS 1170
CALC_BBLS_H2O 366
CALC_BBLS_OIL 15
CALC_GOR 114306
CALC_MCF_GAS 1743
CASING_PRESS 2950
GRAVITY_OIL 54
MCF_GAS 1743
TUBING_PRESS 1975
Perforation Data:
Interval Top:7138 ft.# Of Holes:216
Interval Bottom:9057 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)111
Total Gas Produced (MCF)21126
GOR190324
GOR DeterminationMCFE
Average BOE per Day10.283
Average MCFE per Day59.643

 Federal Financial Assurance  i Y

 Tribal Well  i No
