Wellbore #00 Wellbore Classification: GW Status: PR - 2/27/2006 Measured TD: 6840 ft. Vertical TD: 6707 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/27/2006 | | Wellbore Permit | | | Permit #: | 20060979 | Expiration Date: | 4/17/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1488 FSL 2589 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 96W | Footage: 1488 FSL 2589 FWL | | Proposed Depth/Form: | 6880 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

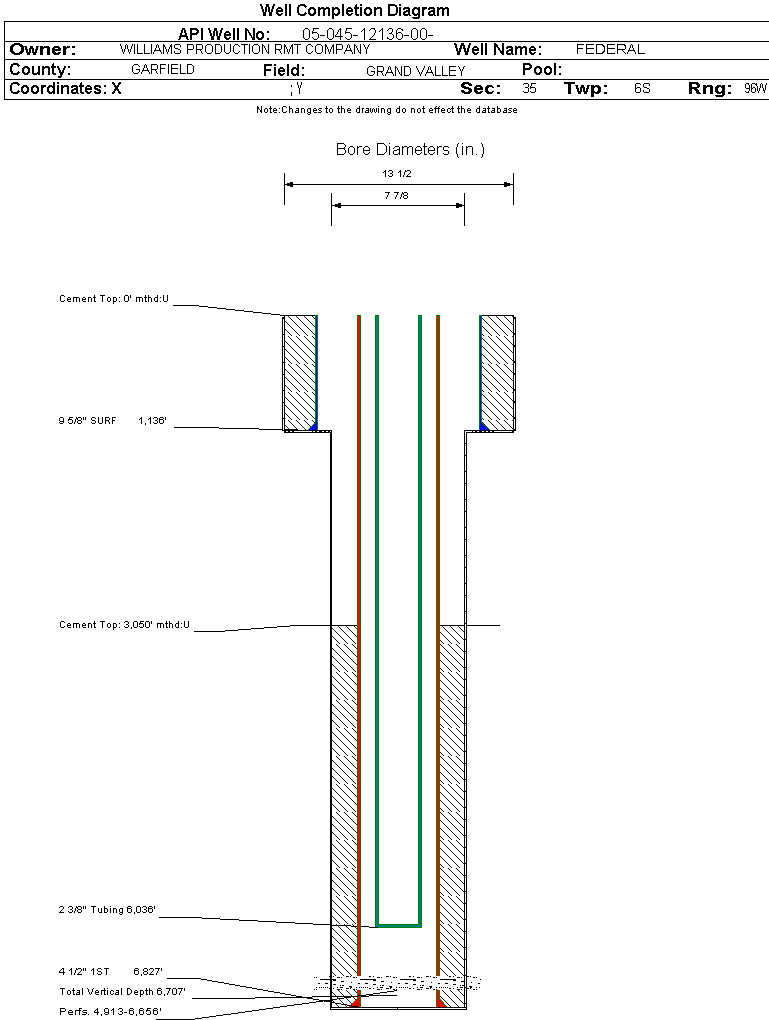

| Wellbore Completed | | Completion Date: | 8/28/2006 | | Spud Date: | 8/17/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6840 ft. | Measured PB depth: | 6802 ft. | | True Vertical TD: | 6707 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:35 Twp: 6S 96W | Footage: 1489 FSL 2584 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 96W | Footage: 1489 FSL 2584 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION/SPECTRAL DENSITY/DUAL SPACED NEUTRON | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1136 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1136 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6827 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 3050 ft., Bottom: 6827 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1725 ft. | | N | N | | FORT UNION | 2057 ft. | | N | N | | MESAVERDE | 3650 ft. | | N | N | | CAMEO | 6252 ft. | | N | N | | ROLLINS | 6724 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/25/2006 Interval Top: 4913 ft. Interval Bottom: 6656 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/21/2006 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/18/2006 | | Treatment Summary: | 2513' GALS 7 1/2% HCL; 828700# 30/50 SAND; 18748 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6036 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/25/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1353 | | MCF_GAS | 990 | | TUBING_PRESS | 1136 |
| | Perforation Data: | | Interval Top: | 4913 ft. | # Of Holes: | 100 | | Interval Bottom: | 6656 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 6933 |
| GOR | 630272 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.307 |
| Average MCFE per Day | 19.177 |
| Federal Financial Assurance | i | Y |
|
|
