Wellbore #00 Wellbore Classification: GW Status: PR - 2/27/2006 Measured TD: 6710 ft. Vertical TD: 6667 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/27/2006 | | Wellbore Permit | | | Permit #: | 20060977 | Expiration Date: | 4/17/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 225 FSL 2567 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 96W | Footage: 225 FSL 2567 FWL | | Proposed Depth/Form: | 6721 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

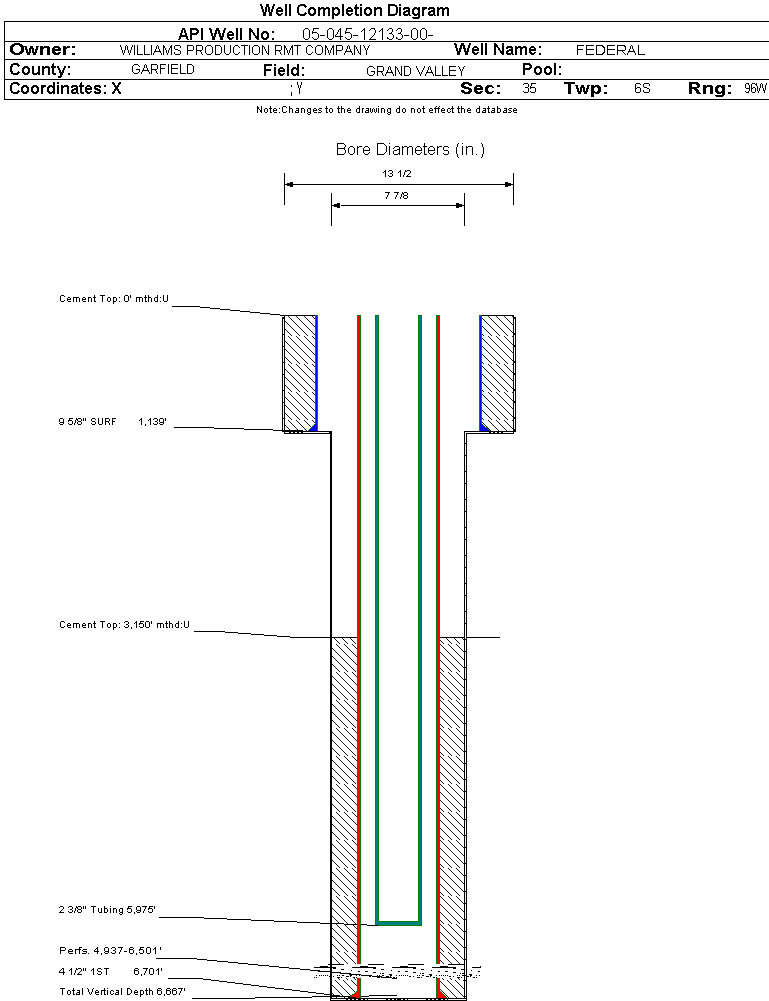

| Wellbore Completed | | Completion Date: | 9/28/2006 | | Spud Date: | 9/18/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6710 ft. | Measured PB depth: | 6675 ft. | | True Vertical TD: | 6667 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:35 Twp: 6S 96W | Footage: 232 FSL 2572 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 96W | Footage: 232 FSL 2572 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION/SPECTRAL DENSITY/DUAL SPACED NEUTRON; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1139 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1139 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6701 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 810, Top: 3150 ft., Bottom: 6701 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1694 ft. | | N | N | | FORT UNION | 2026 ft. | | N | N | | MESAVERDE | 3499 ft. | | N | N | | CAMEO | 6125 ft. | | N | N | | ROLLINS | 6584 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 12/2/2006 Interval Top: 4937 ft. Interval Bottom: 6501 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/21/2006 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/20/2006 | | Treatment Summary: | 2706 GALS 7 1/2% HCL; 776400# 30/50 SAND; 17457 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5975 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/2/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1170 | | MCF_GAS | 1208 | | TUBING_PRESS | 1158 |
| | Perforation Data: | | Interval Top: | 4937 ft. | # Of Holes: | 90 | | Interval Bottom: | 6501 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 23 |
| Total Gas Produced (MCF) | 18670 |
| GOR | 811739 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.880 |
| Average MCFE per Day | 51.529 |
| Federal Financial Assurance | i | Y |
|
|
