Wellbore #00 Wellbore Classification: GW Status: PR - 2/18/2008 Measured TD: 8767 ft. Vertical TD: 8687 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/18/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071757 | Expiration Date: | 4/25/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1216 FSL 637 FWL | | Bottom Hole Location: | Sec:9 Twp: 6S 94W | Footage: 1216 FSL 637 FWL | | Proposed Depth/Form: | 8685 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

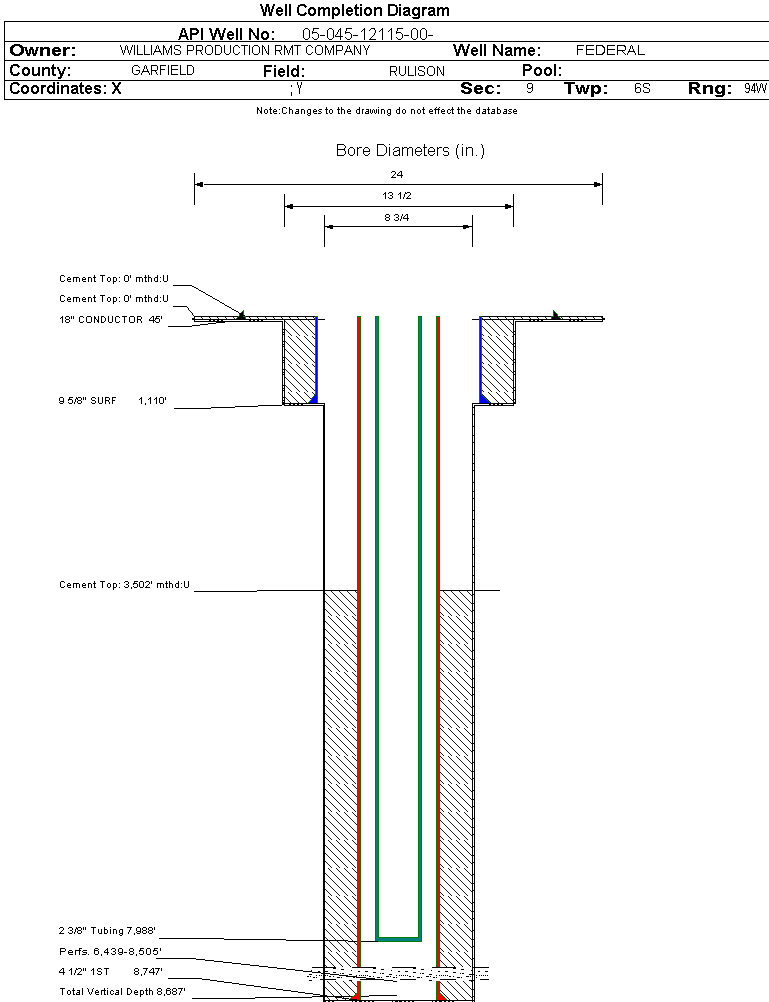

| Wellbore Completed | | Completion Date: | 8/4/2007 | | Spud Date: | 7/11/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8767 ft. | Measured PB depth: | 8714 ft. | | True Vertical TD: | 8687 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:9 Twp: 6S 94W | Footage: 1220 FSL 658 FWL | | Bottom Hole Location: | Sec:9 Twp: 6S 94W | Footage: 1220 FSL 658 FWL | | Log Types: | HIGH RESOUTION INDUCITON SPECTRAL DENSITY, DUAL SPACED NEUTRON, CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1110 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 1110 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8747 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1303, Top: 3502 ft., Bottom: 8747 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2400 ft. | | N | N | | WILLIAMS FORK | 4907 ft. | | N | N | | CAMEO | 7733 ft. | | N | N | | ROLLINS | 8648 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/18/2008 Interval Top: 6439 ft. Interval Bottom: 8505 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/25/2007 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/25/2007 | | Treatment Summary: | 3000 GALS 7 1/2% HCL; 606,800 # PREMIUM WHITE 20; 17,919 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7988 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/18/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1072 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1268 | | CASING_PRESS | 1275 | | TUBING_PRESS | 1121 |
| | Perforation Data: | | Interval Top: | 6439 ft. | # Of Holes: | 126 | | Interval Bottom: | 8505 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 61 |
| Total Gas Produced (MCF) | 15612 |
| GOR | 255934 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.540 |
| Average MCFE per Day | 43.749 |
| Federal Financial Assurance | i | Y |
|
|
