Wellbore #00 Wellbore Classification: GW Status: PR - 2/9/2006 Measured TD: 8797 ft. Vertical TD: 8611 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/9/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20060757 | Expiration Date: | 4/11/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 779 FNL 638 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 94W | Footage: 779 FNL 638 FWL | | Proposed Depth/Form: | 8784 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: W2 |
| | |

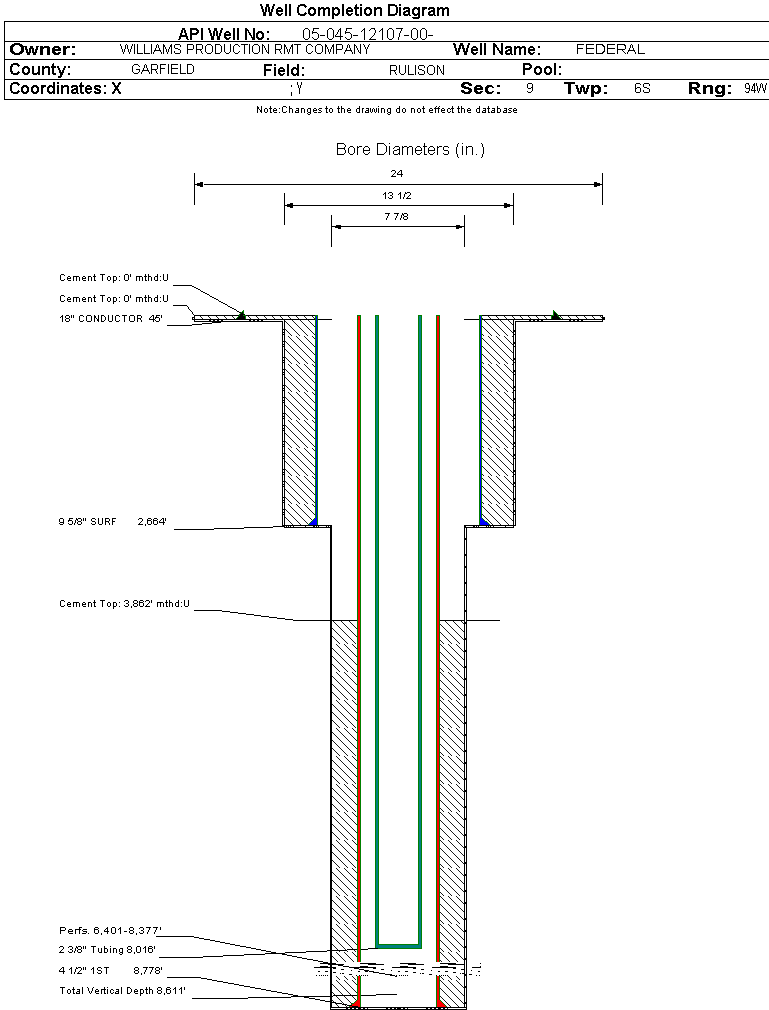

| Wellbore Completed | | Completion Date: | 3/14/2007 | | Spud Date: | 2/19/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8797 ft. | Measured PB depth: | 8515 ft. | | True Vertical TD: | 8611 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:16 Twp: 6S 94W | Footage: 763 FNL 615 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 94W | Footage: 763 FNL 615 FWL | | Log Types: | CBL; HRI/SD/DSN; MUDLOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2664 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 583, Top: 0 ft., Bottom: 2664 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8778 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1080, Top: 3862 ft., Bottom: 8778 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2456 ft. | | N | N | | MESAVERDE | 5004 ft. | | N | N | | CAMEO | 7822 ft. | | N | N | | ROLLINS | 8739 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/6/2007 Interval Top: 6401 ft. Interval Bottom: 8377 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/26/2007 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/18/2007 | | Treatment Summary: | 3750 GALS 7 1/2% HCL; 645,700# 20/40 SAND; 17,788 BB;S SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8016 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/6/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1766 | | MCF_GAS | 1054 | | TUBING_PRESS | 1547 |
| | Perforation Data: | | Interval Top: | 6401 ft. | # Of Holes: | 120 | | Interval Bottom: | 8377 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 15 |
| Total Gas Produced (MCF) | 13756 |
| GOR | 917066 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.542 |
| Average MCFE per Day | 37.949 |
| Federal Financial Assurance | i | Y |
|
|
