COGIS - WELL SCOUT CARD

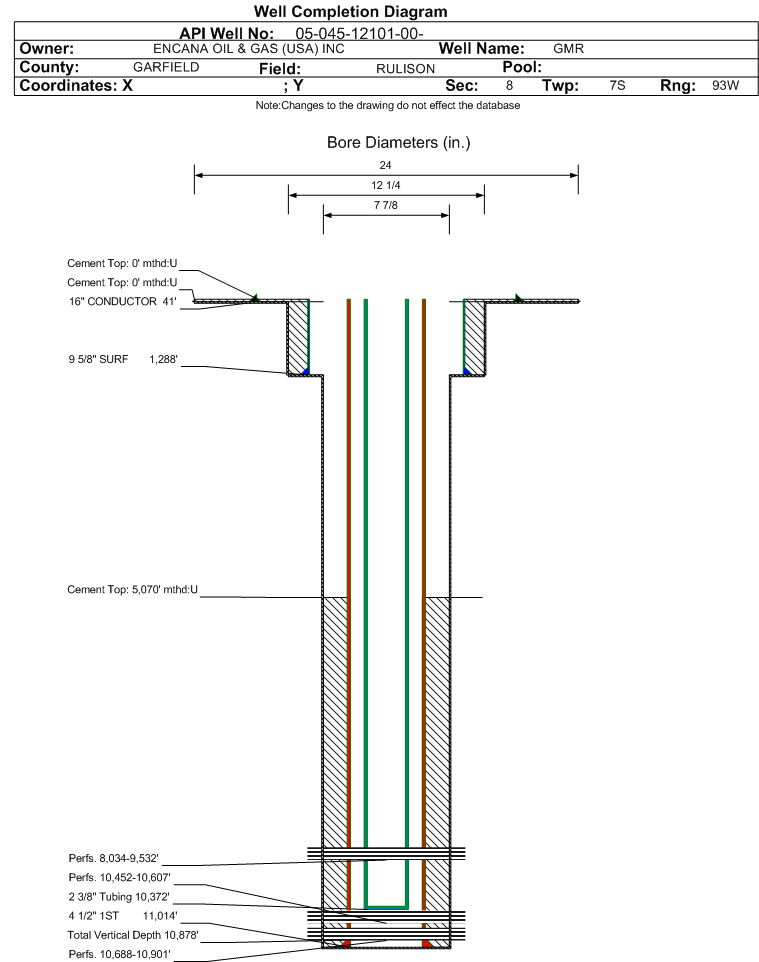

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12101		Well Classification: GW Status: PR - 1/1/2022
Well Name/No:GMR #8-6 (K8W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2022
FacilityID:284219LocationID:311645
County:GARFIELD #045Location:NESW 8 7S93W 6
Field:RULISON - #75400Elevation:7826 ft.
Basin:PICEANCE BASIN
Planned Location:1928FSL  1930 FWLLat/Long: 39.458113 / -107.799879Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.458121 / -107.799894Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2022             Measured TD: 11024 ft.    Vertical TD: 10878 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2022
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/19/2012
Proposed Top PZ Location:Sec:8 Twp: 7S 93W Footage: 1930 FNL  1899 FWL
Bottom Hole Location:Sec:8 Twp: 7S 93W Footage: 1930 FNL  1899 FWL
Proposed Depth/Form:11188 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 139-98 , Unit Acreage: 20, Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-98 , Unit Acreage: 10, Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: linepipe , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 1250 ft., Weight: 36# , Citings Type: PLANNED
Cement:Sacks: 547, Top: 0 ft., Bottom: 1250 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 11188 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1282, Top: 0 ft., Bottom: 11188 ft.
Wellbore Completed
Completion Date:8/30/2010
Spud Date:7/4/2010Spud Date Is:ACTUAL
Measured TD:11024 ft.Measured PB depth:10986 ft.
True Vertical TD:10878 ft.True Vertical PB depth:10840 ft.
Top PZ Location:Sec:8 Twp: 7S 93WFootage: 1926 FNL  1819 FWL
Bottom Hole Location:Sec:8 Twp: 7S 93WFootage: 1935 FNL  1816 FWL
Log Types:RST & CBL logs. The LAS log uploaded to COGCC has both the RST and Cement Bond Log in the file.
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 41 ft., Weight: Linepipe , Citings Type: ACTUAL
Cement:Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1288 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 413, Top: 0 ft., Bottom: 1300 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 11014 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 983, Top: 5070 ft., Bottom: 11014 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK6895 ft.9982 ft.
ROLLINS9983 ft.10442 ft.
COZZETTE10443 ft.10673 ft.
CORCORAN10674 ft.11024 ft.

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 1/1/2022                  Interval Top: 10688 ft.    Interval Bottom: 10901 ft.

 Completed Information for Formation CORCORAN
1st Production Date:10/11/2010Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/8/2010
Treatment Summary:Stages 01 treated with a total of: 8325 bbls of Slickwater, 110400 lbs 20-40 Sand, Treatment Date 10/8/2010.
Tubing Size:2.375 in.Tubing Setting Depth:10372 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/4/2010Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 325
BBLS_OIL 30
BTU_GAS 1170
CALC_BBLS_H2O 325
CALC_BBLS_OIL 30
CALC_MCF_GAS 3475
CASING_PRESS 2275
GRAVITY_OIL 54
MCF_GAS 3475
TUBING_PRESS 2250
Perforation Data:
Interval Top:10688 ft.# Of Holes:27
Interval Bottom:10901 ft.Hole Size:0.34 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 1/1/2022                  Interval Top: 10452 ft.    Interval Bottom: 10607 ft.

 Completed Information for Formation COZZETTE
1st Production Date:10/11/2010Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/11/2010
Treatment Summary:Stages 02 treated with a total of: 8159 bbls of Slickwater, 110000 lbs 20-40 Sand, Treatment Date 10/11/2010.
Tubing Size:2.375 in.Tubing Setting Depth:10372 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/4/2010Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 325
BBLS_OIL 30
BTU_GAS 1170
CALC_BBLS_H2O 325
CALC_BBLS_OIL 30
CALC_MCF_GAS 3475
CASING_PRESS 2275
GRAVITY_OIL 54
MCF_GAS 3475
TUBING_PRESS 2250
Perforation Data:
Interval Top:10452 ft.# Of Holes:27
Interval Bottom:10607 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/1/2022                  Interval Top: 8034 ft.    Interval Bottom: 9532 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/11/2010Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/13/2010
Treatment Summary:Stages 3-10 treated with a total of: 64889 bbls of Slickwater, 890900 lbs 20-40 Sand. Treatment Date 10/13/2010 - 11/2/2010
Tubing Size:2.375 in.Tubing Setting Depth:10372 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/4/2010Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 325
BBLS_OIL 30
BTU_GAS 1170
CALC_BBLS_H2O 325
CALC_BBLS_OIL 30
CALC_MCF_GAS 3475
CASING_PRESS 2775
GRAVITY_OIL 54
MCF_GAS 3475
TUBING_PRESS 2250
Perforation Data:
Interval Top:8034 ft.# Of Holes:216
Interval Bottom:9532 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)316
Total Gas Produced (MCF)50322
GOR159246
GOR DeterminationMCFE
Average BOE per Day24.523
Average MCFE per Day142.244

 Federal Financial Assurance  i

 Tribal Well  i No
