COGIS - WELL SCOUT CARD

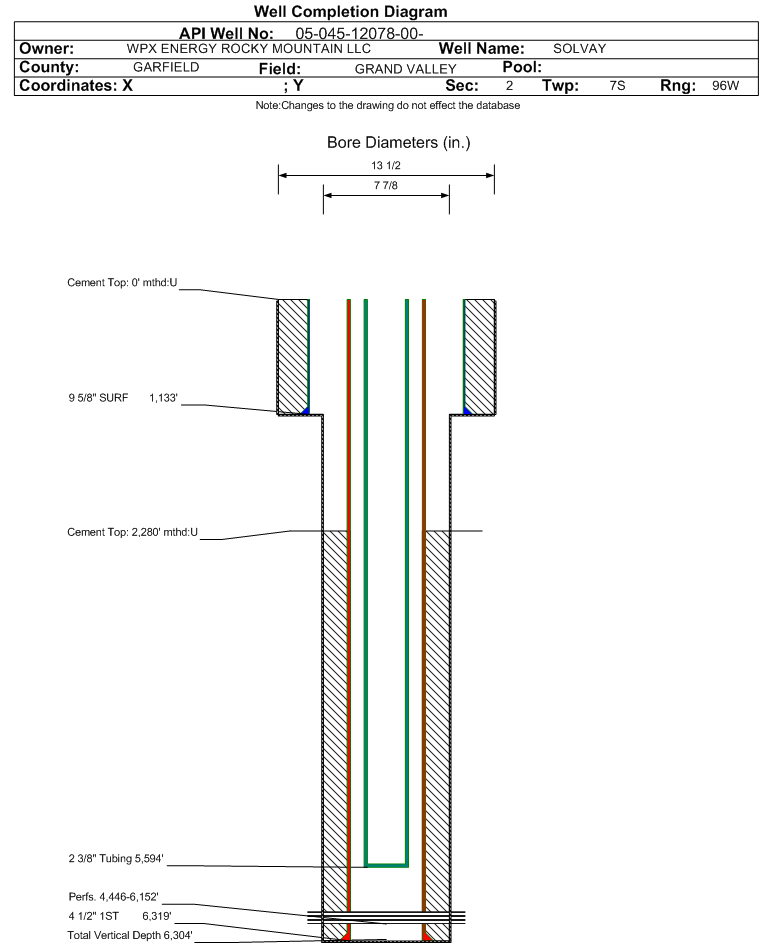

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12078		Well Classification: GW Status: PR - 2/13/2007
Well Name/No:SOLVAY #GM 422-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/13/2007
FacilityID:284088LocationID:323962
County:GARFIELD #045Location:SENW 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5220 ft.
Basin:PICEANCE BASIN
Planned Location:2202FNL  1657 FWLLat/Long: 39.467305 / -108.079360Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.467302 / -108.079363Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/13/2007             Measured TD: 6330 ft.    Vertical TD: 6304 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/13/2007
Wellbore PermitDIRECTIONAL
Permit #:20060607 Expiration Date:4/4/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2074 FNL  1238 FWL
Bottom Hole Location:Sec:2 Twp: 7S 96W Footage: 2074 FNL  1238 FWL
Proposed Depth/Form:6368 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:11/1/2006
Spud Date:10/25/2006Spud Date Is:ACTUAL
Measured TD:6330 ft.Measured PB depth:6286 ft.
True Vertical TD:6304 ft.True Vertical PB depth:
Top PZ Location:Sec:2 Twp: 7S 96WFootage: 2067 FNL  1259 FWL
Bottom Hole Location:Sec:2 Twp: 7S 96WFootage: 2067 FNL  1259 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1132 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6319 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 2280 ft., Bottom: 6319 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1467 ft.NN
FORT UNION1774 ft.NN
MESAVERDE3223 ft.NN
CAMEO5711 ft.NN
ROLLINS6212 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/13/2007                 Interval Top: 4446 ft.    Interval Bottom: 6152 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/16/2006Choke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/15/2006
Treatment Summary:2998 GALS 7 1/2% HCL; 636432# 30/50 SAND; 19273 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:5594 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/25/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1345
MCF_GAS 1204
TUBING_PRESS 946
Perforation Data:
Interval Top:4446 ft.# Of Holes:92
Interval Bottom:6152 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)11039
GOR919916
GOR DeterminationMCFE
Average BOE per Day5.250
Average MCFE per Day30.443

 Federal Financial Assurance  i

 Tribal Well  i No
