COGIS - WELL SCOUT CARD

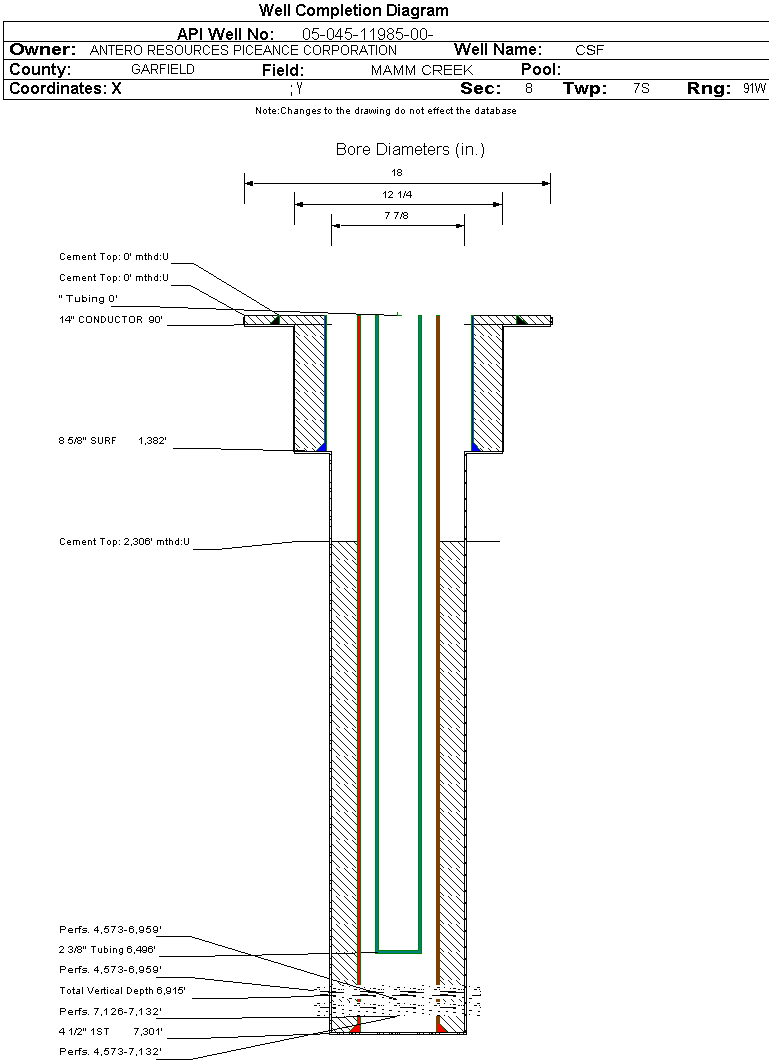

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11985		Well Classification: GW Status: PR - 12/1/2021
Well Name/No:CSF #21B-08-07-91
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66578
Facility Status:PRStatus Date12/1/2021
FacilityID:283753LocationID:335052
County:GARFIELD #045Location:SWNW 8 7S91W 6
Field:MAMM CREEK - #52500Elevation:6450 ft.
Basin:PICEANCE BASIN
Planned Location:1823FNL  891 FWLLat/Long: 39.464020 / -107.583230Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.464070 / -107.582620Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2021             Measured TD: 7315 ft.    Vertical TD: 6915 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2021
Wellbore PermitDIRECTIONAL
Permit #:20060291 Expiration Date:3/9/2007
Proposed Top PZ Location:Sec: Twp: Footage: 666 FNL  1993 FWL
Bottom Hole Location:Sec:8 Twp: 7S 91W Footage: 666 FNL  1993 FWL
Proposed Depth/Form:7309 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/6/2006
Spud Date:8/23/2006Spud Date Is:ACTUAL
Measured TD:7315 ft.Measured PB depth:7250 ft.
True Vertical TD:6915 ft.True Vertical PB depth:6850 ft.
Top PZ Location:Sec:8 Twp: 7S 91WFootage: 645 FNL  2000 FWL
Bottom Hole Location:Sec:8 Twp: 7S 91WFootage: 645 FNL  2000 FWL
Log Types:TRIPLE COMBO(TO BE SNT BY LOGGING CO),MUD LOG, TEMP.SURVEY,CEMENT BOND
Casing:String Type: CONDUCTOR, Hole Size: 18 in., Size: 14 in., Top: 0 ft., Depth: 90 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 90 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1382 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 0 ft., Bottom: 1382 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7301 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 792, Top: 2306 ft., Bottom: 7301 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3164 ft.NN
CAMEO COAL6735 ft.NN
ROLLINS7065 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 12/1/2021                 Interval Top: 7126 ft.    Interval Bottom: 7132 ft.

 Completed Information for Formation ROLLINS
1st Production Date:10/11/2006Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2006
Treatment Summary:RLNS: FRAC'D W/ 2047 BBLS SLICKWATER & 56,250# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RLNS.
Perforation Data:
Interval Top:7126 ft.# Of Holes:21
Interval Bottom:7132 ft.Hole Size:0.36 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2021                 Interval Top: 4573 ft.    Interval Bottom: 6959 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/11/2006Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2006
Treatment Summary:WFCM: FRAC'D W/ 13,644 BBLS SLICKWATER & 300,500# 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:4573 ft.# Of Holes:99
Interval Bottom:6959 ft.Hole Size:0.36 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 3/11/2009                 Interval Top: 4573 ft.    Interval Bottom: 6959 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/11/2006Choke Size:0.750 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/6/2006
Treatment Summary:5 ZONES WERE ACIDIZED WITH 3750 GALLONS IN 5 STAGES. 5 ZONES WERE FRACTURE STIMULATED W/ A TOTAL OF 528,949 LBS OF 30/50 SAND IN 640,868 GALLONS OF SLICKWATER IN 5 STAGES. SEE WELLBORE DIAGRAM FOR DETAILS OF EACH TREATMENT.
Tubing Size:2.375 in.Tubing Setting Depth:6496 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/17/2006Test Method:THROUGH SEPARAT
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 600
CALC_BBLS_H2O 600
CALC_MCF_GAS 650
CASING_PRESS 850
MCF_GAS 650
Perforation Data:
Interval Top:4573 ft.# Of Holes:120
Interval Bottom:6959 ft.Hole Size:0.36 in.

Formation WMRCM                   Formation Classification:  GW                   Status:  CM - 11/17/2006                Interval Top: 4573 ft.    Interval Bottom: 7132 ft.

 Completed Information for Formation WILLIAMS FK-ROLLINS-CAMEO
1st Production Date:10/11/2006Choke Size:0.750 in.
Formation Name:WILLIAMS FK-ROLLINS-CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2006
Treatment Summary:SEE INDIVIDUAL FORMATION BREAKDOWN
Tubing Size:2.375 in.Tubing Setting Depth:6496 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/17/2006Test Method:SEPARATOR
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 600
BBLS_OIL 0
BTU_GAS 1064
CALC_BBLS_H2O 600
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 650
CASING_PRESS 850
MCF_GAS 650
Perforation Data:
Interval Top:4573 ft.# Of Holes:120
Interval Bottom:7132 ft.Hole Size:0.36 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)2
Total Gas Produced (MCF)1153
GOR576500
GOR DeterminationMCFE
Average BOE per Day0.548
Average MCFE per Day3.194

 Federal Financial Assurance  i Y

 Tribal Well  i No
