Wellbore #00 Wellbore Classification: GW Status: PR - 1/18/2006 Measured TD: 6972 ft. Vertical TD: 6958 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/18/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20060241 | Expiration Date: | 3/1/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2016 FSL 574 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2016 FSL 574 FEL | | Proposed Depth/Form: | 6887 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2 |
| | |

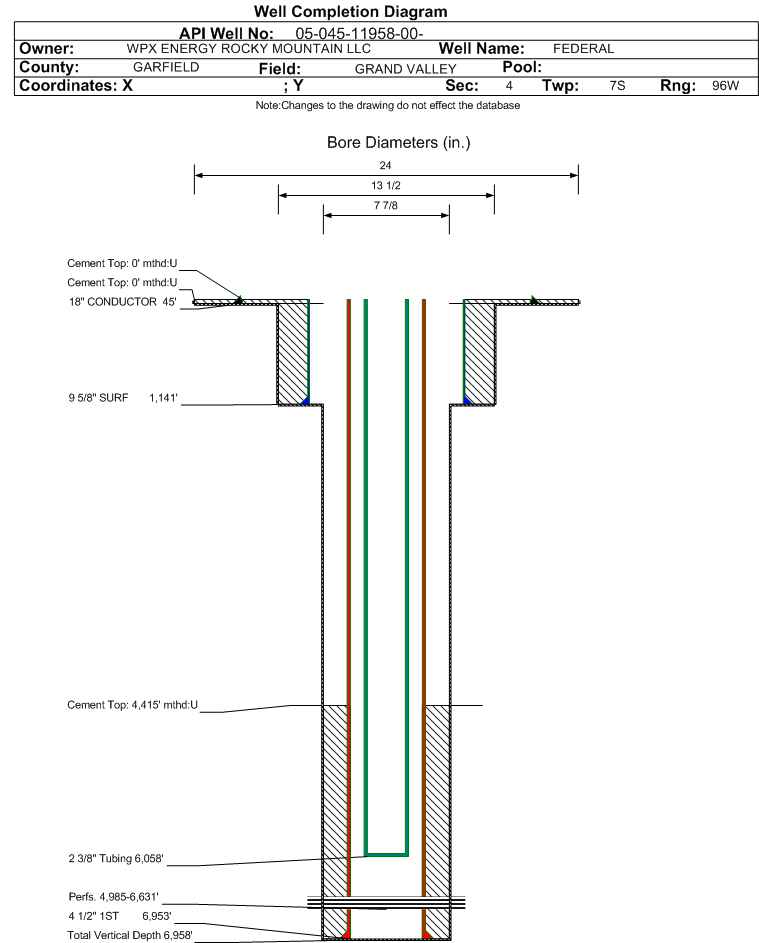

| Wellbore Completed | | Completion Date: | 10/30/2006 | | Spud Date: | 10/16/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6972 ft. | Measured PB depth: | 6806 ft. | | True Vertical TD: | 6958 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:4 Twp: 7S 96W | Footage: 2027 FSL 538 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 96W | Footage: 2027 FSL 538 FEL | | Log Types: | CBL; HIGH RES.INDUCTION,SPECTRAL DENSITY,DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1141 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 1141 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6953 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 811, Top: 4415 ft., Bottom: 6953 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2180 ft. | | N | N | | FORT UNION | 2474 ft. | | N | N | | MESAVERDE | 3747 ft. | | N | N | | CAMEO | 6280 ft. | | N | N | | ROLLINS | 6747 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/3/2007 Interval Top: 4985 ft. Interval Bottom: 6631 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/23/2007 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/8/2006 | | Treatment Summary: | 3092 GALS 7 1/2% HCL; 843,400# 30/50 SAND; 16029 BBLS SLICKWATER, 660 TONS CO2 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6058 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/3/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1274 | | MCF_GAS | 1105 | | TUBING_PRESS | 1173 |
| | Perforation Data: | | Interval Top: | 4985 ft. | # Of Holes: | 104 | | Interval Bottom: | 6631 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 9987 |
| GOR | 554833 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.765 |
| Average MCFE per Day | 27.658 |
| Federal Financial Assurance | i | Y |
|
|
