Wellbore #00 Wellbore Classification: GW Status: PR - 1/10/2006 Measured TD: 6410 ft. Vertical TD: 6378 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/10/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20060137 | Expiration Date: | 2/27/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1876 FNL 2317 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 96W | Footage: 1876 FNL 2317 FEL | | Proposed Depth/Form: | 6385 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N2 |
| | |

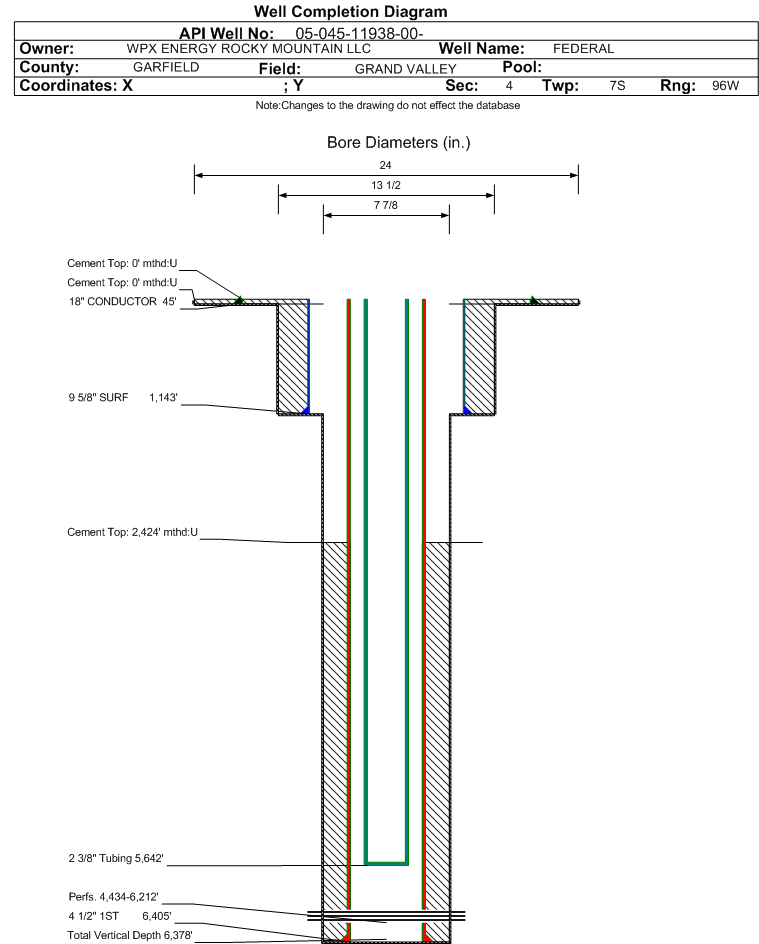

| Wellbore Completed | | Completion Date: | 8/3/2006 | | Spud Date: | 7/24/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6410 ft. | Measured PB depth: | 6379 ft. | | True Vertical TD: | 6378 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:4 Twp: 7S 96W | Footage: 1869 FNL 2355 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 96W | Footage: 1869 FNL 2355 FEL | | Log Types: | CBL; RESERVIOR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1143 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1143 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6405 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 805, Top: 2424 ft., Bottom: 6405 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1726 ft. | | N | N | | FORT UNION | 1981 ft. | | N | N | | MESAVERDE | 3258 ft. | | N | N | | CAMEO | 5777 ft. | | N | N | | ROLLINS | 6247 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/8/2006 Interval Top: 4434 ft. Interval Bottom: 6212 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/31/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/31/2006 | | Treatment Summary: | 3504 GALS 7 1/2% HCL; 973200 # 30/50 SAND; 22362 BBLS SLICKWATER; |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5642 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/8/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1455 | | MCF_GAS | 681 | | TUBING_PRESS | 1357 |
| | Perforation Data: | | Interval Top: | 4434 ft. | # Of Holes: | 119 | | Interval Bottom: | 6212 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 14231 |
| GOR | 547346 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.799 |
| Average MCFE per Day | 39.399 |
| Federal Financial Assurance | i | Y |
|
|
