Wellbore #00 Wellbore Classification: GW Status: PR - 12/16/2005 Measured TD: 6847 ft. Vertical TD: 6654 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/16/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20055055 | Expiration Date: | 1/30/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2051 FNL 549 FWL | | Bottom Hole Location: | Sec:3 Twp: 7S 95W | Footage: 2051 FNL 549 FWL | | Proposed Depth/Form: | 6876 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-12 , Unit Acreage: 640, Drill Unit: SEC. |
| | |

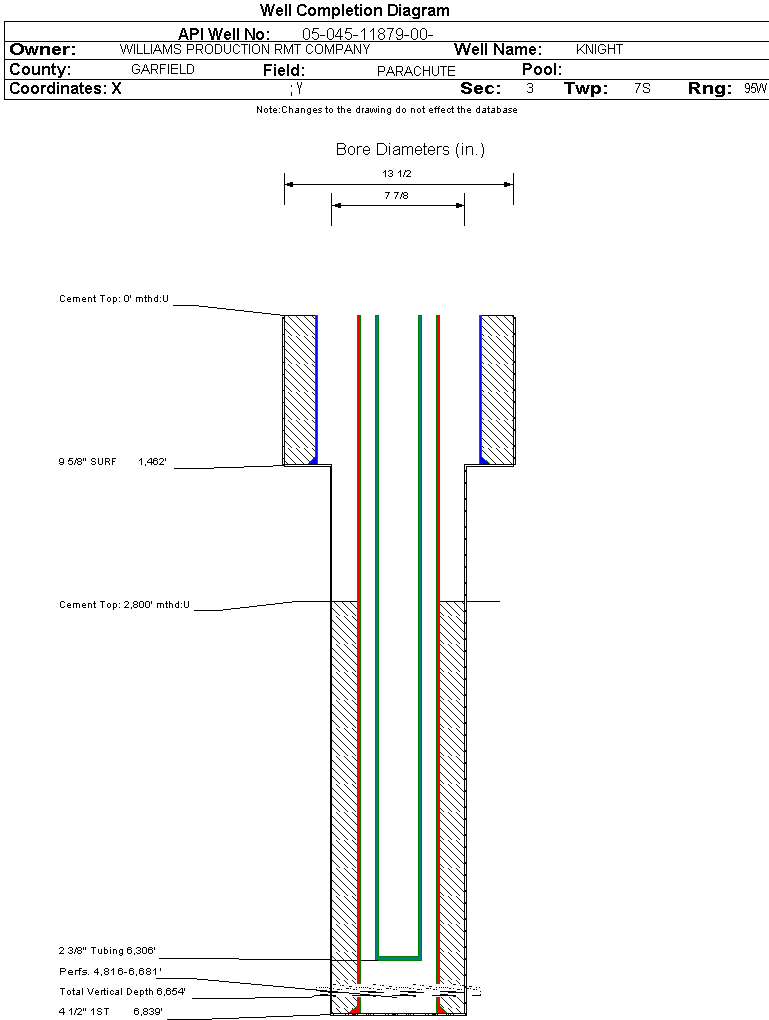

| Wellbore Completed | | Completion Date: | 4/14/2006 | | Spud Date: | 4/5/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6847 ft. | Measured PB depth: | 6795 ft. | | True Vertical TD: | 6654 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:3 Twp: 7S 95W | Footage: 2068 FNL 573 FWL | | Bottom Hole Location: | Sec:3 Twp: 7S 95W | Footage: 2068 FNL 573 FWL | | Log Types: | CBL,PLATFORM EXPRESS,GAMMA RAY,ARRAY INDUCTION/SP | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1462 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1461 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6839 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 925, Top: 2800 ft., Bottom: 6838 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1230 ft. | | N | N | | FORT UNION | 1497 ft. | | N | N | | MESAVERDE | 3432 ft. | | N | N | | CAMEO COAL | 6067 ft. | | N | N | | ROLLINS | 6752 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 7/16/2006 Interval Top: 4816 ft. Interval Bottom: 6681 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/19/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/15/2006 | | Treatment Summary: | 3502 GALS 7 1/2% HCL; 885,200# 30/50 SAND; 20,511 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6306 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/16/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 1824 | | MCF_GAS | 1512 | | TUBING_PRESS | 11759 |
| | Perforation Data: | | Interval Top: | 4816 ft. | # Of Holes: | 138 | | Interval Bottom: | 6681 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 29 |
| Total Gas Produced (MCF) | 22467 |
| GOR | 774724 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.699 |
| Average MCFE per Day | 62.065 |
| Federal Financial Assurance | i | |
|
|
