Wellbore #00 Wellbore Classification: GW Status: PR - 5/22/2007 Measured TD: 6412 ft. Vertical TD: 6318 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/22/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054881 | Expiration Date: | 1/25/2007 | | Proposed Top PZ Location: | Sec:29 Twp: 6S 92W | Footage: 1322 FSL 1973 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 92W | Footage: 1322 FSL 1973 FEL | | Proposed Depth/Form: | 7076 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: , Drill Unit: |
| | |

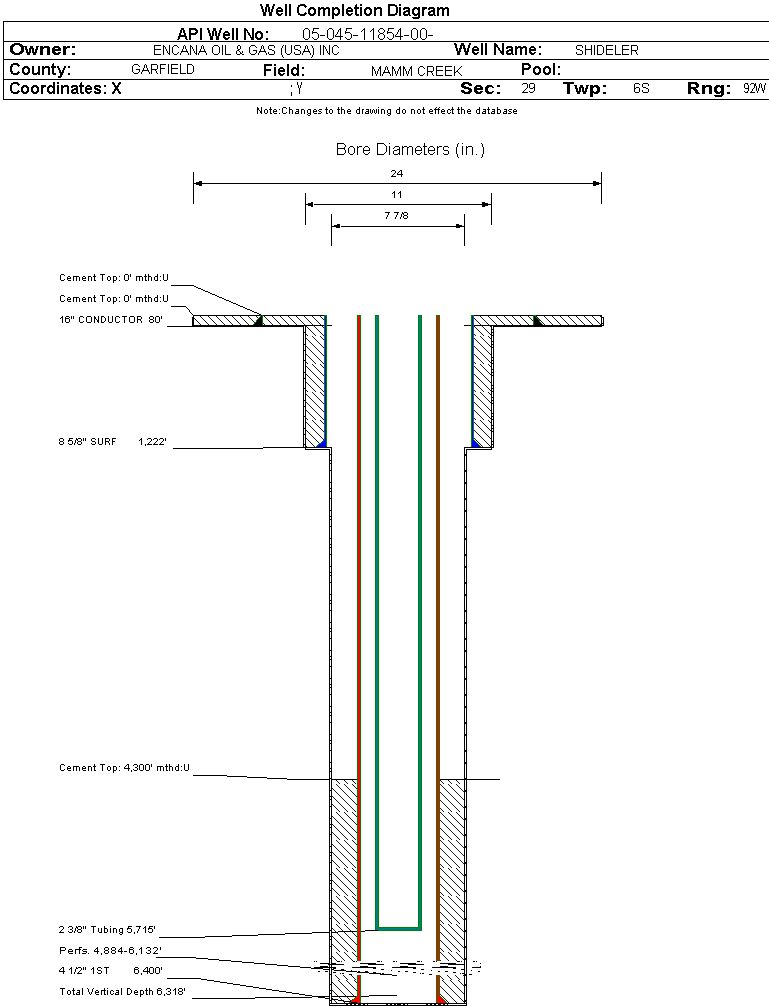

| Wellbore Completed | | Completion Date: | 3/23/2007 | | Spud Date: | 4/16/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6412 ft. | Measured PB depth: | | | True Vertical TD: | 6318 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:29 Twp: 6S 92W | Footage: 1322 FSL 1973 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 92W | Footage: 1322 FSL 1973 FEL | | Log Types: | | | Log Types: | RST/GR,CBL/GR/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 0 ft., Bottom: 80 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 1222 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 545, Top: 0 ft., Bottom: 1222 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6400 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 735, Top: 4300 ft., Bottom: 6400 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3556 ft. | N | N | | WILLIAMS FORK | 3557 ft. | 6412 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 5/22/2007 Interval Top: 4884 ft. Interval Bottom: 6132 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 5/19/2007 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/13/2007 | | Treatment Summary: | STAGES 01-05 WERE TREATED WITH A TOTAL OF 26,405 BBLS SLICKWATER. 365,158 LBS 20-40 WHITE SAND, AND 11,077 LBS NON API FLEX SAND MSE 14/30. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5715 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/22/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 60 | | BBLS_OIL | 20 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 60 | | CALC_BBLS_OIL | 20 | | CALC_GOR | 52150 | | CALC_MCF_GAS | 1043 | | CASING_PRESS | 1975 | | GRAVITY_OIL | 53.6 | | MCF_GAS | 1043 | | TUBING_PRESS | 1650 |
| | Perforation Data: | | Interval Top: | 4884 ft. | # Of Holes: | 112 | | Interval Bottom: | 6132 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 18879 |
| GOR | 18879000 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.921 |
| Average MCFE per Day | 51.724 |
| Federal Financial Assurance | i | |
|
|
