COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11850		Well Classification: GW Status: PR - 5/1/2022
Well Name/No:CHEVRON #GM 431-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2022
FacilityID:282833LocationID:311561
County:GARFIELD #045Location:NWNE 29 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5484 ft.
Basin:PICEANCE BASIN
Planned Location:1303FNL  1587 FELLat/Long: 39.498906 / -108.128796Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.498869 / -108.128780Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2022             Measured TD: 6820 ft.    Vertical TD: 6747 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2022
Wellbore PermitDIRECTIONAL
Permit #:20054940 Expiration Date:1/25/2006
Proposed Top PZ Location:Sec:29 Twp: 6S 96W Footage: 578   1937
Bottom Hole Location:Sec:29 Twp: 6S 96W Footage: 578   1937
Proposed Depth/Form:6816 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: NE/4
Wellbore Completed
Completion Date:4/2/2006
Spud Date:3/24/2006Spud Date Is:ACTUAL
Measured TD:6820 ft.Measured PB depth:6774 ft.
True Vertical TD:6747 ft.True Vertical PB depth:
Top PZ Location:Sec:29 Twp: 6S 96WFootage: 578 FNL  1937 FEL
Bottom Hole Location:Sec:29 Twp: 6S 96WFootage: 578 FNL  1937 FEL
Log Types:CBL:RESERVOIR MONITOR TOOL ELITE.

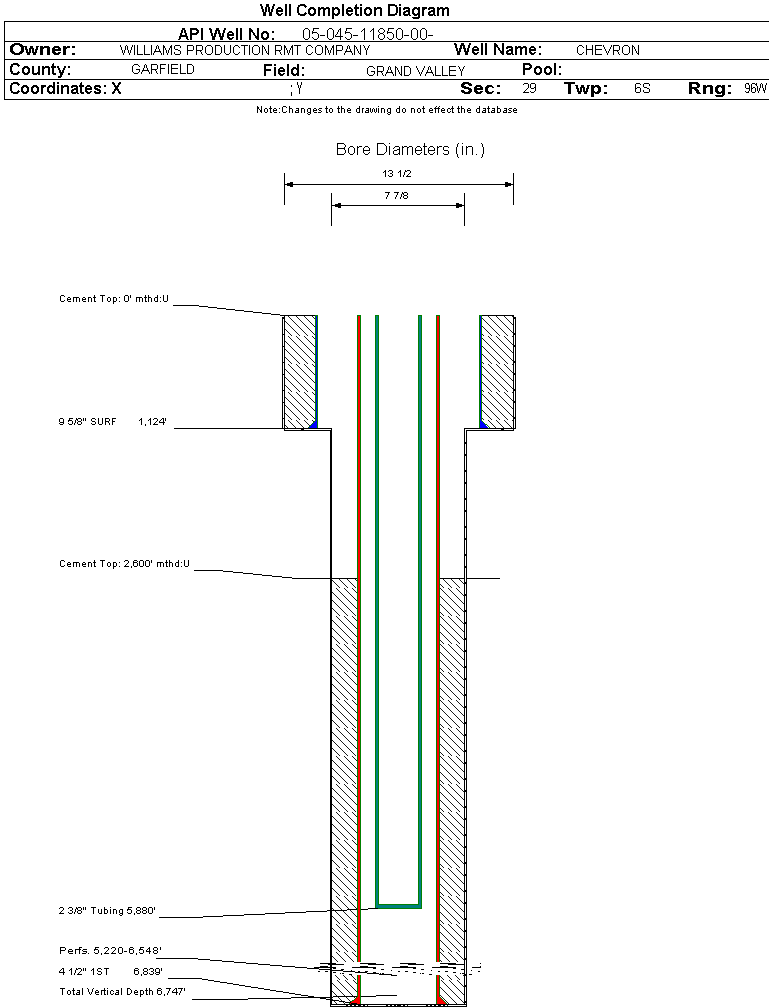

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1124 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6839 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 837, Top: 2600 ft., Bottom: 6839 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1931 ft.NN
FORT UNION2248 ft.NN
MESAVERDE3645 ft.NN
CAMEO6184 ft.NN
ROLLINS6666 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/1/2022                  Interval Top: 5220 ft.    Interval Bottom: 6548 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/8/2006Choke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/3/2006
Treatment Summary:2,833 GALS 7.5% HCL; 702,600# 30/50 SAND; 16,608 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:5880 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/9/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1275
CASING_PRESS 1625
MCF_GAS 1275
TUBING_PRESS 1322
Perforation Data:
Interval Top:5220 ft.# Of Holes:96
Interval Bottom:6548 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)12729
GOR471444
GOR DeterminationMCFE
Average BOE per Day6.092
Average MCFE per Day35.315

 Federal Financial Assurance  i

 Tribal Well  i No
