Wellbore #00 Wellbore Classification: GW Status: PR - 1/4/2008 Measured TD: 7531 ft. Vertical TD: 7504 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/4/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073022 | Expiration Date: | 7/23/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1843 FNL 660 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 92W | Footage: 1843 FNL 660 FEL | | Proposed Depth/Form: | 7712 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL |
| | |

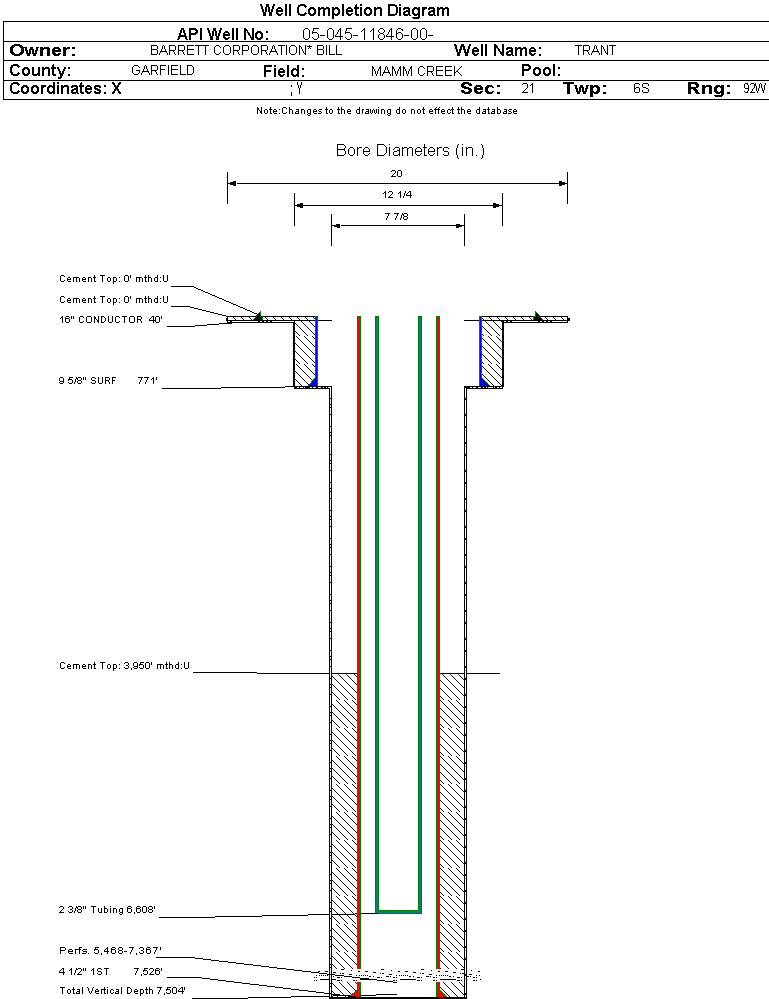

| Wellbore Completed | | Completion Date: | 10/26/2007 | | Spud Date: | 10/18/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7531 ft. | Measured PB depth: | 7486 ft. | | True Vertical TD: | 7504 ft. | True Vertical PB depth: | 7459 ft. | | Top PZ Location: | Sec:21 Twp: 6S 92W | Footage: 1846 FNL 671 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 92W | Footage: 1846 FNL 671 FEL | | Log Types: | HRI/DSN/SD; CBL/TEMP/GR/CCL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 771 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 771 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7526 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 3950 ft., Bottom: 7526 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3732 ft. | | N | N | | ROLLINS | 7401 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/4/2008 Interval Top: 5468 ft. Interval Bottom: 7367 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/23/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/6/2007 | | Treatment Summary: | 66,446 BBLS SLICKWATER; 1,337,432# WHITE 20/40 SAND; 138,009# 20/40 SLC SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6608 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/4/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 15 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 15 | | CALC_GOR | 293012 | | CALC_MCF_GAS | 4342 | | CASING_PRESS | 1250 | | GRAVITY_OIL | 50 | | MCF_GAS | 4342 | | TUBING_PRESS | 900 |
| | Perforation Data: | | Interval Top: | 5468 ft. | # Of Holes: | 168 | | Interval Bottom: | 7367 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 163 |
| Total Gas Produced (MCF) | 18620 |
| GOR | 114233 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.244 |
| Average MCFE per Day | 53.600 |
| Federal Financial Assurance | i | |
|
|
