COGIS - WELL SCOUT CARD

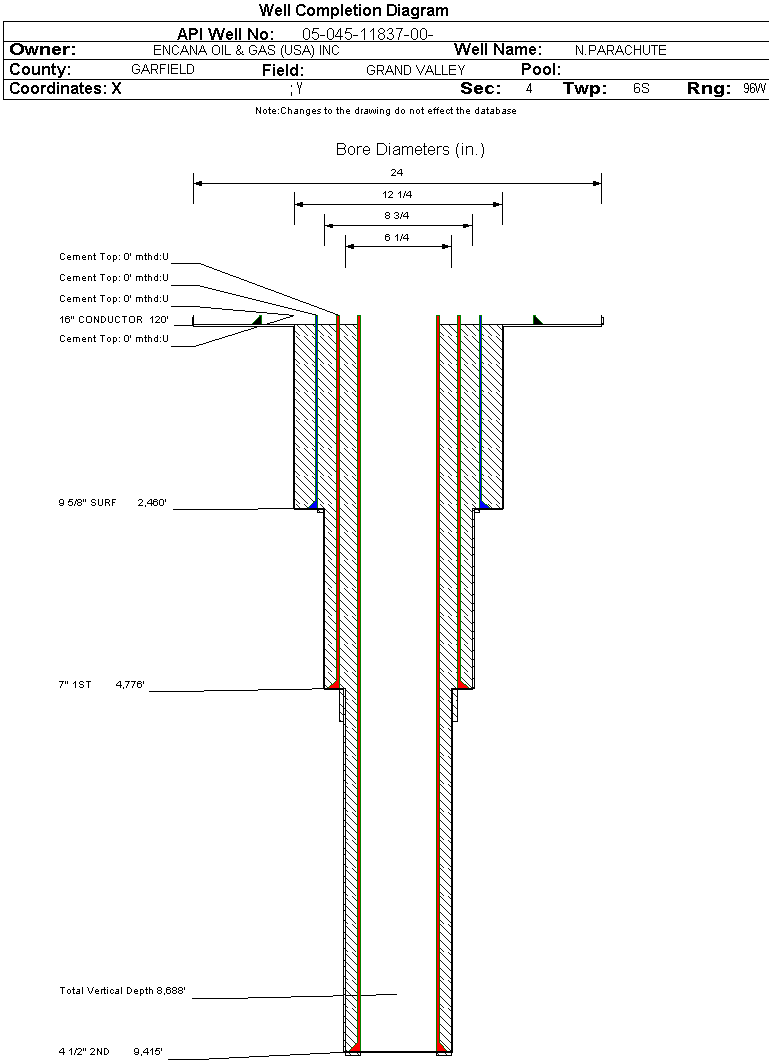

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11837		Well Classification: GW Status: PA - 6/7/2007
Well Name/No:N.PARACHUTE #MF13B C04 696
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ENCANA OIL & GAS (USA) INC - 100185
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/7/2007
FacilityID:282775LocationID:311638
County:GARFIELD #045Location:NENW 4 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5817 ft.
Basin:PICEANCE BASIN
Planned Location:1068FNL  2479 FWLLat/Long: 39.560749 / -108.111852Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.561486 / -108.111708Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/7/2007             Measured TD: 9475 ft.    Vertical TD: 8688 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/7/2007
Wellbore PermitDIRECTIONAL
Permit #:20054855 Expiration Date:1/22/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1170 FNL  990 FEL
Bottom Hole Location:Sec:31 Twp: 5S 95W Footage: 990 FSL  1065 FWL
Proposed Depth/Form:9839 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/11/2007
Spud Date:6/5/2006Spud Date Is:ACTUAL
Measured TD:9475 ft.Measured PB depth:9415 ft.
True Vertical TD:8688 ft.True Vertical PB depth:
Bottom Hole Location:Sec:31 Twp: 5S 95WFootage: 1004 FSL  1119 FWL
Log Types:MUDLOG; CBL(4)
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2460 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 660, Top: 0 ft., Bottom: 2510 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 4776 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 5202 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 9415 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 505, Top: 0 ft., Bottom: 9475 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK5686 ft.9649 ft.NN
ROLLINS9349 ft.9475 ft.NN
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/07/2007
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
