Wellbore #00 Wellbore Classification: GW Status: PR - 4/27/2007 Measured TD: 9560 ft. Vertical TD: 8843 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/27/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054856 | Expiration Date: | 1/22/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1650 FNL 977 FWL | | Bottom Hole Location: | Sec:31 Twp: 5S 96W | Footage: 330 FSL 1725 FWL | | Proposed Depth/Form: | 9500 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit: |
| | |

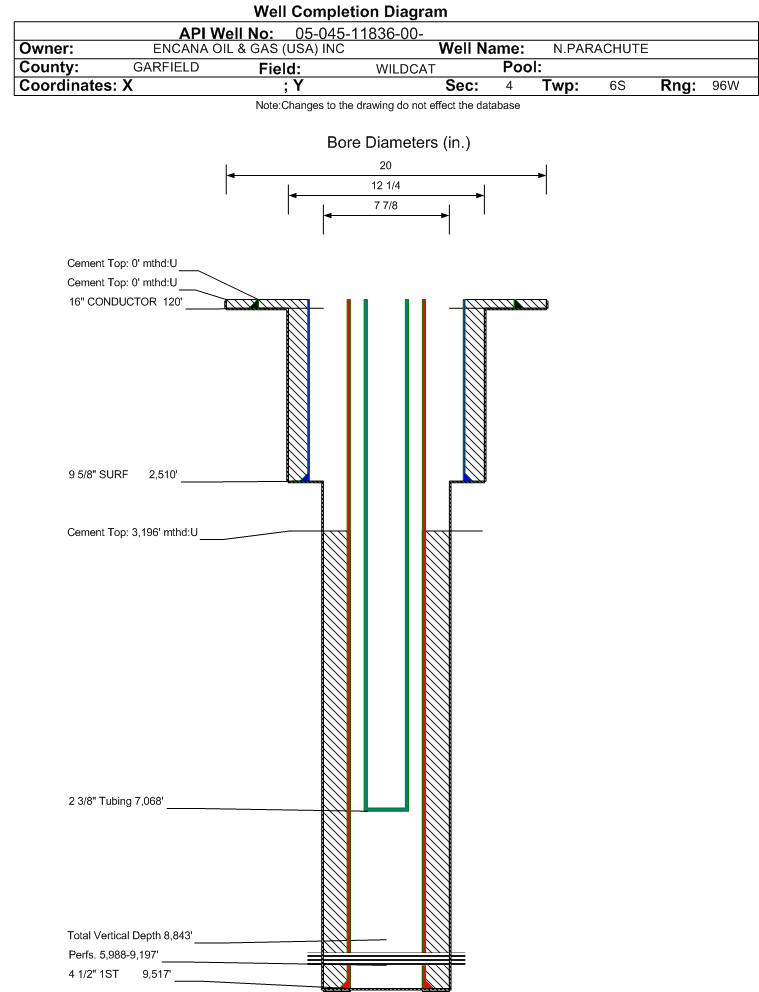

| Wellbore Completed | | Completion Date: | 10/29/2006 | | Spud Date: | 6/1/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 9560 ft. | Measured PB depth: | 9472 ft. | | True Vertical TD: | 8843 ft. | True Vertical PB depth: | 8755 ft. | | Top PZ Location: | Sec:31 Twp: 5S 96W | Footage: 272 FSL 2487 FWL | | Bottom Hole Location: | Sec:31 Twp: 5S 96W | Footage: 272 FSL 2487 FWL | | Log Types: | MUD, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2510 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 2515 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9517 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1095, Top: 3196 ft., Bottom: 9560 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5666 ft. | 9334 ft. | N | N | | ROLLINS | 9334 ft. | 9560 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/27/2007 Interval Top: 5988 ft. Interval Bottom: 9197 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/31/2007 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/27/2007 | | Treatment Summary: | STAGES 01-09 TREATED WITH A TOTAL OF: 32,551 BBLS OF SLICKWATER WITH 1,212,262 LBS 20-40 SAND WITH 36 BBLS 15% HCL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7068 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/27/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1175 | | CASING_PRESS | 1440 | | MCF_GAS | 1175 | | TUBING_PRESS | 1165 |
| | Perforation Data: | | Interval Top: | 5988 ft. | # Of Holes: | 234 | | Interval Bottom: | 9197 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 131 |
| Total Gas Produced (MCF) | 24060 |
| GOR | 183664 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.727 |
| Average MCFE per Day | 68.011 |
| Federal Financial Assurance | i | |
|
|
