COGIS - WELL SCOUT CARD

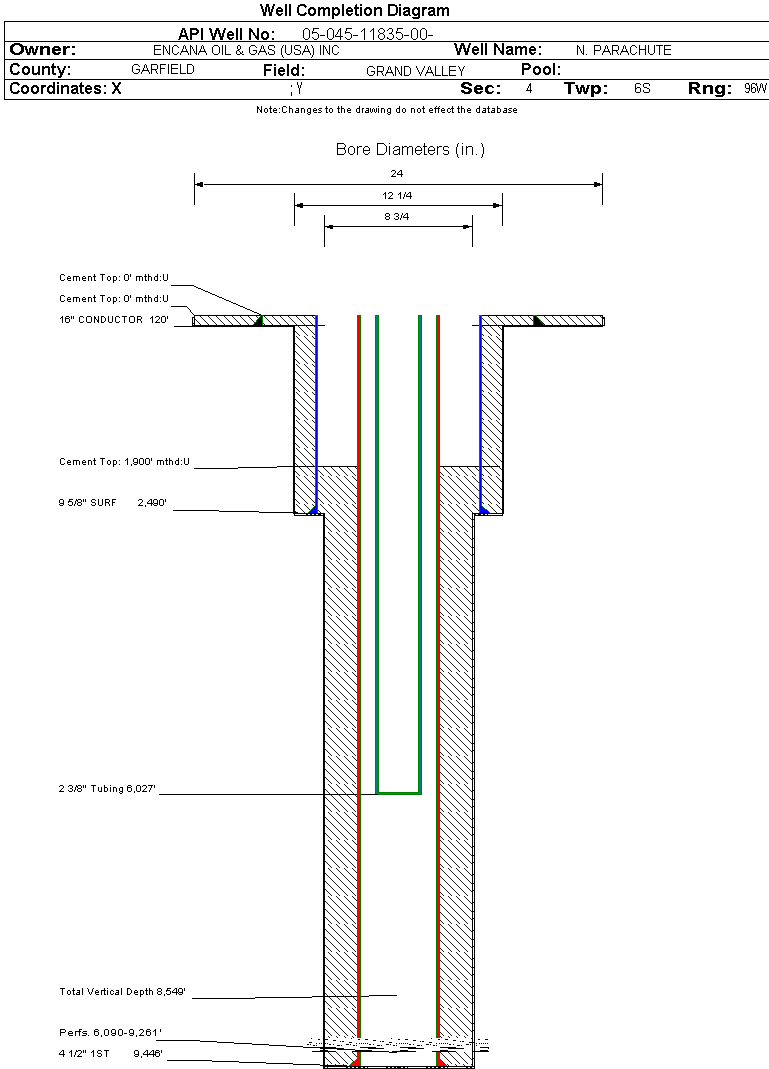

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11835		Well Classification: GW Status: PR - 4/12/2007
Well Name/No:N. PARACHUTE #MF04D CO4 696
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/12/2007
FacilityID:282777LocationID:311638
County:GARFIELD #045Location:NENW 4 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5818 ft.
Basin:PICEANCE BASIN
Planned Location:1077FNL  2485 FWLLat/Long: 39.560723 / -108.111832Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.561461 / -108.111683Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/12/2007             Measured TD: 9492 ft.    Vertical TD: 8549 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/12/2007
Wellbore PermitDIRECTIONAL
Permit #:20054853 Expiration Date:1/22/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1815 FNL  330 FEL
Bottom Hole Location:Sec:3 Twp: 6S 96W Footage: 990 FNL  317 FWL
Proposed Depth/Form:10261 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/10/2006
Spud Date:7/5/2006Spud Date Is:ACTUAL
Measured TD:9492 ft.Measured PB depth:9423 ft.
True Vertical TD:8549 ft.True Vertical PB depth:8480 ft.
Top PZ Location:Sec:3 Twp: 6S 96WFootage: 760 FNL  397 FWL
Bottom Hole Location:Sec:3 Twp: 6S 96WFootage: 760 FNL  397 FWL
Log Types:CBL & MUD
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2490 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 2491 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9446 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1293, Top: 1900 ft., Bottom: 9446 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK5858 ft.9383 ft.NN
ROLLINS9383 ft.9492 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/12/2007                 Interval Top: 6090 ft.    Interval Bottom: 9261 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:3/31/2007Choke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/10/2006
Treatment Summary:STAGE 1-9 TREATED WITH A TOTAL OF 23,572 BBLS OF SLICKWATER, 5,297 BBLS OF SLICKWATER/ CLEAR FRAC, 1,154,840 LBS 20-40 SAND AND 18 BBLS OF 15% HCI
Tubing Size:2.375 in.Tubing Setting Depth:6027 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/12/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1170
CALC_MCF_GAS 2178
CASING_PRESS 1440
MCF_GAS 2178
TUBING_PRESS 2270
Perforation Data:
Interval Top:6090 ft.# Of Holes:237
Interval Bottom:9261 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)132
Total Gas Produced (MCF)24078
GOR182409
GOR DeterminationMCFE
Average BOE per Day11.732
Average MCFE per Day68.067

 Federal Financial Assurance  i

 Tribal Well  i No
