Wellbore #00 Wellbore Classification: GW Status: PR - 12/5/2005 Measured TD: 8323 ft. Vertical TD: 8301 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/5/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054851 | Expiration Date: | 1/22/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 485 FNL 1650 FEL | | Bottom Hole Location: | Sec:4 Twp: 6S 96W | Footage: 990 FNL 22310 FEL | | Proposed Depth/Form: | 9605 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit: |
| | |

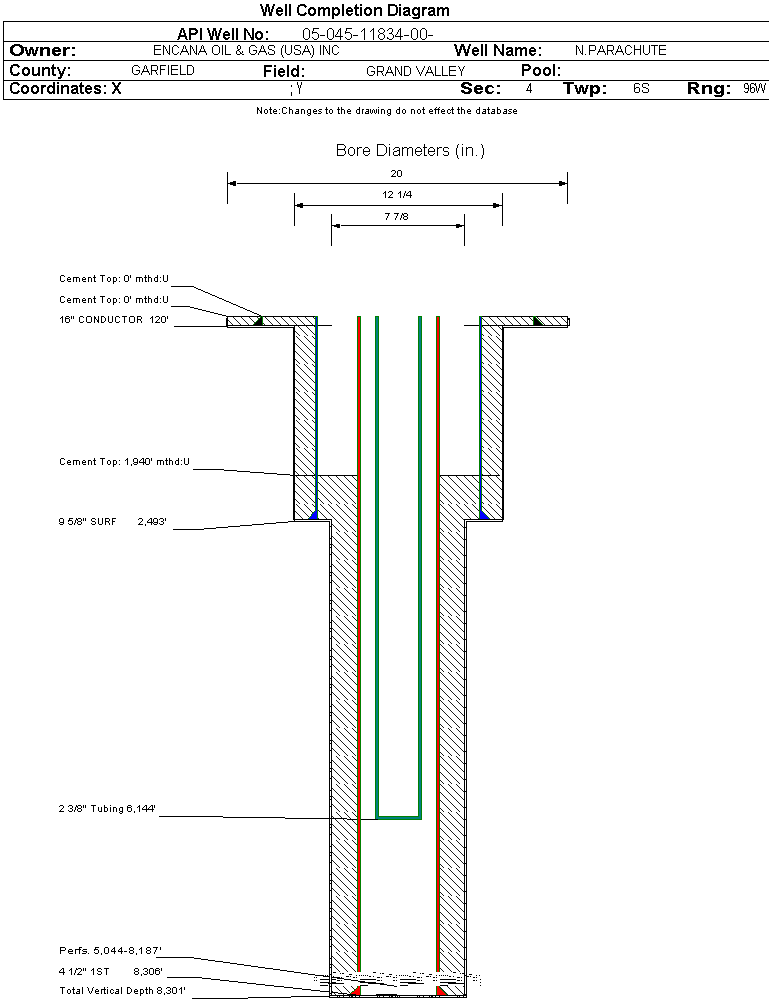

| Wellbore Completed | | Completion Date: | 12/3/2006 | | Spud Date: | 6/20/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8323 ft. | Measured PB depth: | 8283 ft. | | True Vertical TD: | 8301 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:4 Twp: 6S 96W | Footage: 912 FNL 2269 FEL | | Bottom Hole Location: | Sec:4 Twp: 6S 96W | Footage: 912 FNL 2269 FEL | | Log Types: | MUDLOG; CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2493 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 660, Top: 0 ft., Bottom: 2493 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8306 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 905, Top: 1940 ft., Bottom: 8323 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4717 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 12/30/2007 Interval Top: 5044 ft. Interval Bottom: 8187 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/12/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/7/2007 | | Treatment Summary: | STAGES 01-09 TREATED W/TOTAL OF 29889 BBLS SLICKWATER, 1094041 LBS 20-40 SAND AND 72 BBLS 15% HCL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6144 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/30/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CASING_PRESS | 499 | | MCF_GAS | 1354 | | TUBING_PRESS | 581 |
| | Perforation Data: | | Interval Top: | 5044 ft. | # Of Holes: | 234 | | Interval Bottom: | 8187 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 151 |
| Total Gas Produced (MCF) | 27706 |
| GOR | 183483 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.501 |
| Average MCFE per Day | 78.301 |
| Federal Financial Assurance | i | |
|
|
