COGIS - WELL SCOUT CARD

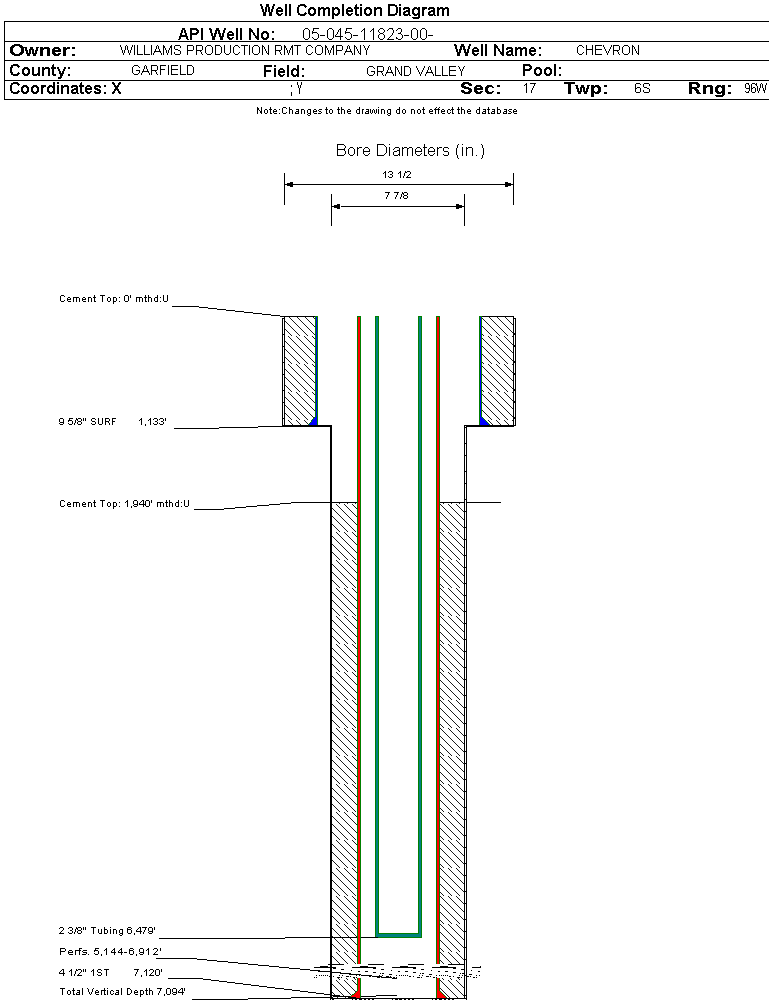

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11823		Well Classification: GW Status: PR - 1/1/2025
Well Name/No:CHEVRON #GM 544-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2025
FacilityID:282748LocationID:335074
County:GARFIELD #045Location:SESE 17 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5608 ft.
Basin:PICEANCE BASIN
Planned Location:714FSL  1156 FELLat/Long: 39.518978 / -108.127225Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.519029 / -108.127498Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2025             Measured TD: 7144 ft.    Vertical TD: 7094 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20054871 Expiration Date:1/19/2007
Proposed Top PZ Location:Sec: Twp: Footage: 170 FSL  743 FEL
Proposed Depth/Form:7117 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:7/16/2006
Spud Date:7/3/2006Spud Date Is:ACTUAL
Measured TD:7144 ft.Measured PB depth:7070 ft.
True Vertical TD:7094 ft.True Vertical PB depth:
Top PZ Location:Sec:17 Twp: 6S 96WFootage: 188 FSL  746 FEL
Bottom Hole Location:Sec:17 Twp: 6S 96WFootage: 188 FSL  746 FEL
Log Types:CBL; HIGH RES.INDUCTION/SPECTRAL DENSITY/DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1133 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 828, Top: 1940 ft., Bottom: 7120 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2147 ft.NN
FORT UNION2426 ft.NN
MESAVERDE3849 ft.NN
CAMEO6498 ft.NN
ROLLINS6966 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/1/2025                  Interval Top: 5144 ft.    Interval Bottom: 6912 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:8/4/2006Choke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/31/2006
Treatment Summary:3538 GALS 7 1/2% HCL; 1016800# 30/50 SAND; 22630 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6479 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/27/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CASING_PRESS 1350
MCF_GAS 1182
TUBING_PRESS 1221
Perforation Data:
Interval Top:5144 ft.# Of Holes:125
Interval Bottom:6912 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)21868
GOR643176
GOR DeterminationMCFE
Average BOE per Day10.508
Average MCFE per Day60.951

 Federal Financial Assurance  i

 Tribal Well  i No
