COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11821		Well Classification: GW Status: PR - 12/1/2010
Well Name/No:CHEVRON #GM 342-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2010
FacilityID:282746LocationID:324184
County:GARFIELD #045Location:SENE 17 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5590 ft.
Basin:PICEANCE BASIN
Planned Location:2204FNL  846 FELLat/Long: 39.525657 / -108.125077Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.525628 / -108.126138Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2010             Measured TD: 7267 ft.    Vertical TD: 7209 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2010
Wellbore PermitDIRECTIONAL
Permit #:20054878 Expiration Date:1/19/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1598 FNL  512 FEL
Bottom Hole Location:Sec: Twp: Footage: 1598 FNL  572 FEL
Proposed Depth/Form:7269 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:4/2/2006
Spud Date:3/18/2006Spud Date Is:ACTUAL
Measured TD:7267 ft.Measured PB depth:6959 ft.
True Vertical TD:7209 ft.True Vertical PB depth:
Top PZ Location:Sec:17 Twp: 6S 96WFootage: 1603 FNL  715 FEL
Bottom Hole Location:Sec:17 Twp: 6S 96WFootage: 1603 FNL  715 FEL
Log Types:CBL; HIGH RESOLUTION INDUCTION; SPECTRAL DENSITY; DUAL SPACED NEUTRON

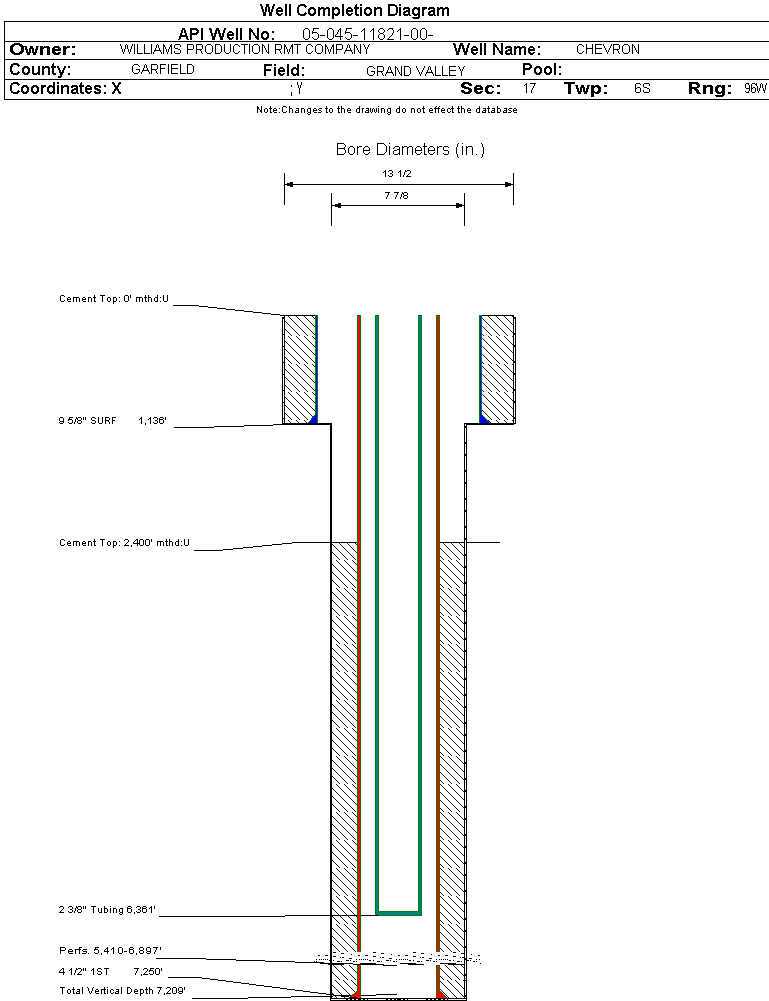

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1136 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1136 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7250 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 841, Top: 2400 ft., Bottom: 7250 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2166 ft.NN
FORT UNION2459 ft.NN
MESAVERDE3889 ft.NN
CAMEO6575 ft.NN
ROLLINS7105 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 5410 ft.    Interval Bottom: 6897 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:6/6/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/5/2006
Treatment Summary:3,020 GALS 7.5% HCL; 768,800# 30/50 SAND; 18,037 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6361 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/10/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1417
CASING_PRESS 1596
TUBING_PRESS 1658
Perforation Data:
Interval Top:5410 ft.# Of Holes:105
Interval Bottom:6897 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)8895
GOR635357
GOR DeterminationMCFE
Average BOE per Day4.245
Average MCFE per Day24.604

 Federal Financial Assurance  i

 Tribal Well  i No
