COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11802		Well Classification: GW Status: PR - 4/11/2006
Well Name/No:CHEVRON #GM 321-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC56547
Facility Status:PRStatus Date4/11/2006
FacilityID:282721LocationID:335088
County:GARFIELD #045Location:NENW 29 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5707 ft.
Basin:PICEANCE BASIN
Planned Location:974FNL  2003 FWLLat/Long: 39.499746 / -108.134728Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.499740 / -108.134732Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/11/2006             Measured TD: 6913 ft.    Vertical TD: 6913 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/11/2006
Wellbore PermitDIRECTIONAL
Permit #:20054934 Expiration Date:1/18/2007
Proposed Top PZ Location:Sec: Twp: Footage: 125 FNL  2132 FWL
Bottom Hole Location:Sec: Twp: Footage: 125 FNL  2132 FWL
Proposed Depth/Form:7034 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 160, Drill Unit: NW/4
Wellbore Completed
Completion Date:3/3/2006
Spud Date:2/19/2006Spud Date Is:ACTUAL
Measured TD:6913 ft.Measured PB depth:6900 ft.
True Vertical TD:6913 ft.True Vertical PB depth:
Top PZ Location:Sec:29 Twp: 6S 96WFootage: 120 FNL  2139 FWL
Bottom Hole Location:Sec:29 Twp: 6S 96WFootage: 120 FNL  2139 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

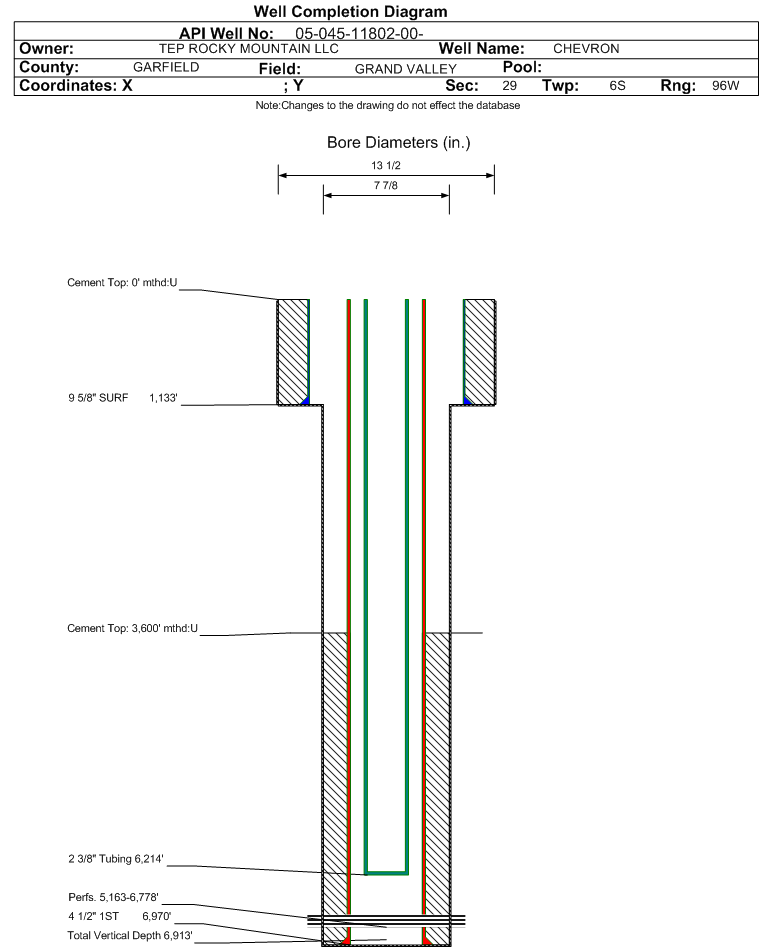

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1133 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6970 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 815, Top: 3600 ft., Bottom: 6970 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2158 ft.NN
FORT UNION2442 ft.NN
MESAVERDE3850 ft.NN
CAMEO6850 ft.NN
ROLLINS6886 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/11/2006                 Interval Top: 5163 ft.    Interval Bottom: 6778 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/20/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/18/2006
Treatment Summary:2,528 GALS 7.5% HCL; 713,200# 30/50 SAND; 16,723 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6214 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/11/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 163800
CALC_MCF_GAS 1638
CASING_PRESS 1847
MCF_GAS 1638
TUBING_PRESS 1711
Perforation Data:
Interval Top:5163 ft.# Of Holes:102
Interval Bottom:6778 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)24583
GOR723029
GOR DeterminationMCFE
Average BOE per Day11.705
Average MCFE per Day67.888

 Federal Financial Assurance  i

 Tribal Well  i No
