Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2024 Measured TD: 9010 ft. Vertical TD: 8881 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20070010 | Expiration Date: | 1/29/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1950 FNL 1150 FWL | | Bottom Hole Location: | Sec:30 Twp: 6S 93W | Footage: 1950 FNL 1150 FWL | | Proposed Depth/Form: | 9200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CMEO , Formation: CAMEO , Order: 139-47 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-47 , Unit Acreage: 640, Drill Unit: ALL |
| | |

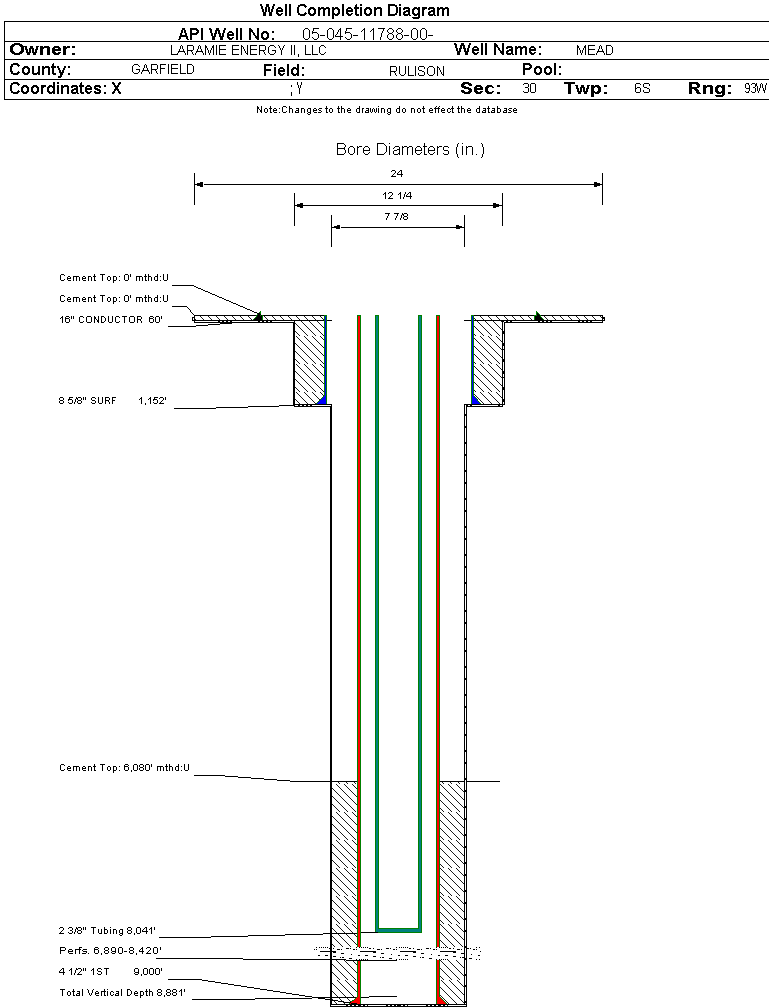

| Wellbore Completed | | Completion Date: | 5/3/2007 | | Spud Date: | 4/12/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 9010 ft. | Measured PB depth: | 9000 ft. | | True Vertical TD: | 8881 ft. | True Vertical PB depth: | 8871 ft. | | Top PZ Location: | Sec:30 Twp: 6S 93W | Footage: 1955 FNL 1148 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 93W | Footage: 1955 FNL 1148 FEL | | Log Types: | CEMENT BOND GAMMA RAY CCL, TRIPLE COMBO | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 17, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1152 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 330, Top: 0 ft., Bottom: 1152 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9000 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 6080 ft., Bottom: 9000 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | | 8054 ft. | N | N | | CAMEO | 8054 ft. | 8888 ft. | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/1/2024 Interval Top: 6890 ft. Interval Bottom: 8420 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/18/2007 | Choke Size: | 12.000 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/16/2007 | | Treatment Summary: | 778,721 GAL SLICKWATER; 384,800# 20/40 WHITE SAND; 3,000 GALS 15% HCL ACID. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8041 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/21/2007 | Test Method: | | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 267 | | BBLS_OIL | 0 | | BTU_GAS | 1024 | | CASING_PRESS | 2425 | | MCF_GAS | 1028 |
| | Perforation Data: | | Interval Top: | 6890 ft. | # Of Holes: | 102 | | Interval Bottom: | 8420 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 47 |
| Total Gas Produced (MCF) | 17806 |
| GOR | 378851 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.537 |
| Average MCFE per Day | 49.532 |
| Federal Financial Assurance | i | |
|
|
