Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2023 Measured TD: 10046 ft. Vertical TD: 9949 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20077201 | Expiration Date: | 2/6/2009 | | Proposed Top PZ Location: | Sec:27 Twp: 5S 95W | Footage: 1623 FNL 470 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 1623 FNL 470 FWL | | Proposed Depth/Form: | 12073 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit: |
| | |

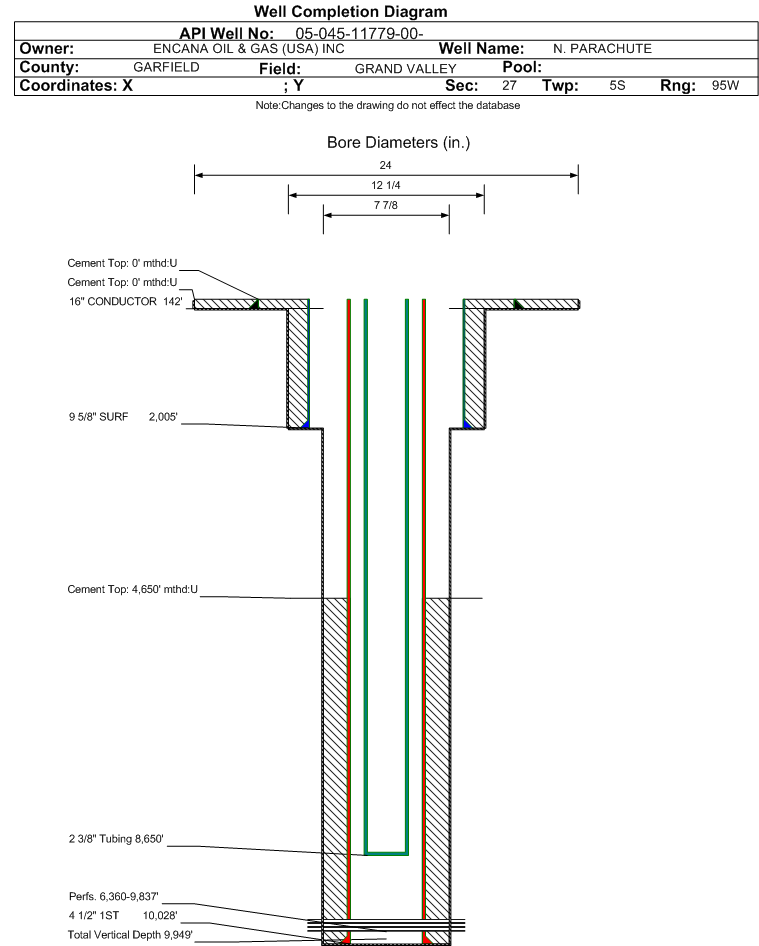

| Wellbore Completed | | Completion Date: | 8/8/2008 | | Spud Date: | 7/30/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10046 ft. | Measured PB depth: | 9997 ft. | | True Vertical TD: | 9949 ft. | True Vertical PB depth: | 9900 ft. | | Top PZ Location: | Sec:27 Twp: 5S 95W | Footage: 1623 FNL 470 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 1623 FNL 470 FWL | | Log Types: | CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 142 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 142 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2005 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 2005 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10028 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1464, Top: 4650 ft., Bottom: 10028 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6290 ft. | 9896 ft. | N | N | | ROLLINS | 9896 ft. | 10046 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 12/1/2023 Interval Top: 6360 ft. Interval Bottom: 9837 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 11/14/2008 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/3/2008 | | Treatment Summary: | STAGES 01-11 TREATED WITH A TOTAL OF: 49856 BBLS OF SLICKWATER, 549000 LBS 30/50 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8650 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/5/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1485 | | CASING_PRESS | 2350 | | MCF_GAS | 1484 | | TUBING_PRESS | 1500 |
| | Perforation Data: | | Interval Top: | 6360 ft. | # Of Holes: | 330 | | Interval Bottom: | 9837 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 51 |
| Total Gas Produced (MCF) | 9564 |
| GOR | 187529 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.678 |
| Average MCFE per Day | 27.125 |
| Federal Financial Assurance | i | |
|
|
