Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2014 Measured TD: 10240 ft. Vertical TD: 9717 ft. Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2014 | Wellbore Permit | DIRECTIONAL | Permit #: | 20077195 | Expiration Date: | 2/6/2009 | Proposed Top PZ Location: | Sec: Twp: | Footage: 1078 FSL 341 FWL | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 1078 FSL 341 FWL | Proposed Depth/Form: | 12022 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit: |
| | |

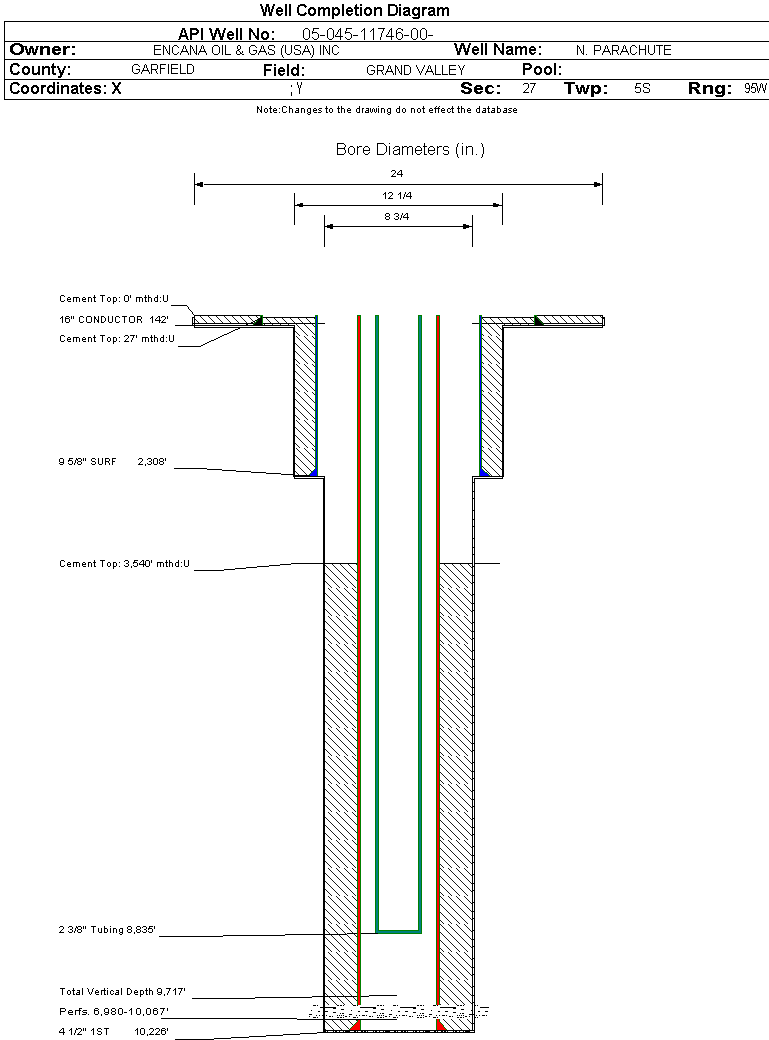

Wellbore Completed | Completion Date: | 5/4/2008 | Spud Date: | 3/19/2008 | Spud Date Is: | ACTUAL | Measured TD: | 10240 ft. | Measured PB depth: | 10204 ft. | True Vertical TD: | 9717 ft. | True Vertical PB depth: | 9681 ft. | Top PZ Location: | Sec:27 Twp: 5S 95W | Footage: 2138 FSL 751 FWL | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 2138 FSL 751 FWL | Log Types: | CBL & MUD | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 142 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 60, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2308 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 447, Top: 27 ft., Bottom: 2308 ft., Determination Method: CALC | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10226 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 1606, Top: 3540 ft., Bottom: 10226 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | WILLIAMS FORK | 6755 ft. | 10240 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/1/2014 Interval Top: 6980 ft. Interval Bottom: 10067 ft. Completed Information for Formation WILLIAMS FORK | 1st Production Date: | 7/28/2008 | Choke Size: | 0.375 in. | Formation Name: | WILLIAMS FORK | Commingled: | No | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 6/16/2008 | Treatment Summary: | STAGES 1 - 12 TREATED W/ A TOTAL OF: 54,319 BBLS SLICKWATER; 497,000# 20/40 SAND; & 99,000# 30/50 SAND. |
| Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8835 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 8/4/2008 | Test Method: | FLOWING | Hours Tested: | 24 | Gas Type: | DRY | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BTU_GAS | 1170 | CASING_PRESS | 3350 | MCF_GAS | 360 | TUBING_PRESS | 775 |
| Perforation Data: | Interval Top: | 6980 ft. | # Of Holes: | 360 | Interval Bottom: | 10067 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 57 |
Total Gas Produced (MCF) | 9420 |
GOR | 165263 |
GOR Determination | MCFE |
Average BOE per Day | 4.562 |
Average MCFE per Day | 26.490 |
