Wellbore #00 Wellbore Classification: GW Status: PR - 3/28/2007 Measured TD: 11155 ft. Vertical TD: 10006 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/28/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071610 | Expiration Date: | 4/22/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 990 FNL 990 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 990 FNL 990 FWL | | Proposed Depth/Form: | 10615 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit: |
| | |

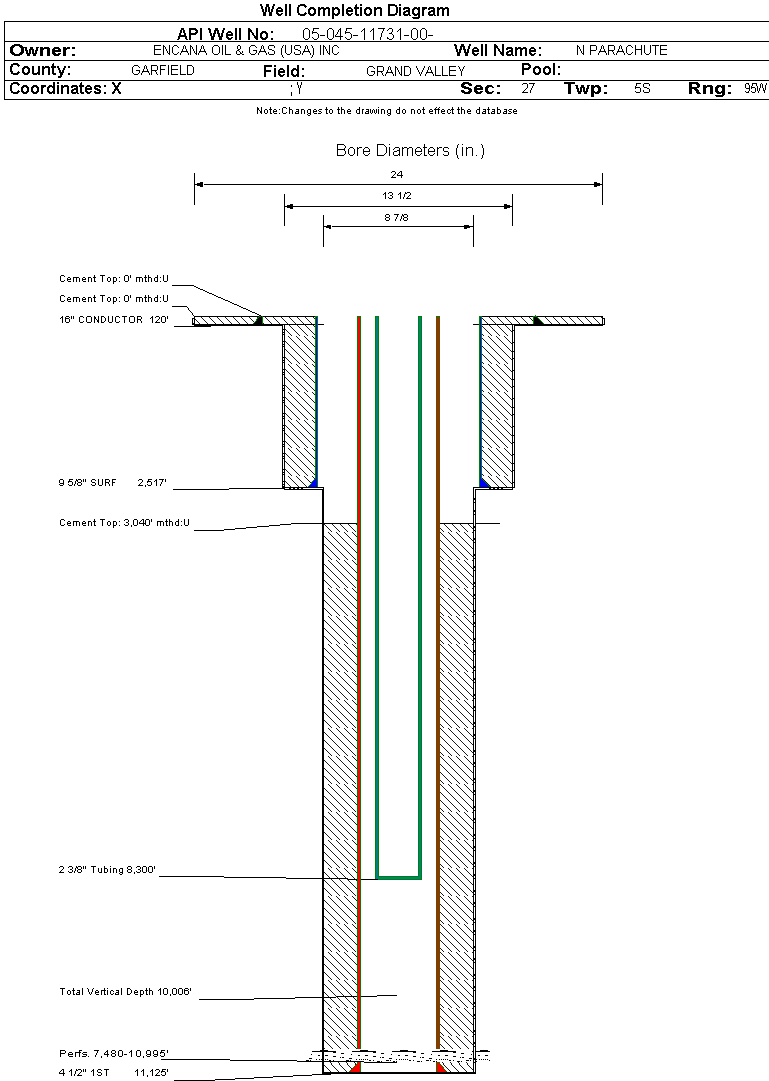

| Wellbore Completed | | Completion Date: | 11/12/2007 | | Spud Date: | 6/24/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 11155 ft. | Measured PB depth: | 11080 ft. | | True Vertical TD: | 10006 ft. | True Vertical PB depth: | 9931 ft. | | Top PZ Location: | Sec:22 Twp: 5S 95W | Footage: 2192 FSL 1998 FEL | | Bottom Hole Location: | Sec:22 Twp: 5S 95W | Footage: 2192 FSL 1998 FEL | | Log Types: | CBL, MUD | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2517 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 773, Top: 0 ft., Bottom: 2525 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.875 in., Size: 4.5 in., Top: 0 ft., Depth: 11125 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1675, Top: 3040 ft., Bottom: 11155 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 7435 ft. | 11087 ft. | N | N | | ROLLINS | 11087 ft. | 11155 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/11/2008 Interval Top: 7480 ft. Interval Bottom: 10995 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 1/4/2008 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/17/2007 | | Treatment Summary: | STAGES 1-12 TREATED W/A TOTAL OF: 31,366 BBLS SLICKWATER; 782,000# 20/40 SAND; 322,000# 30/50 SAND; & 36 BBLS OF 15% HCI. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8300 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/11/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 0 | | BTU_GAS | 1170 | | CASING_PRESS | 1150 | | MCF_GAS | 1789 | | TUBING_PRESS | 650 |
| | Perforation Data: | | Interval Top: | 7480 ft. | # Of Holes: | 360 | | Interval Bottom: | 10995 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 60 |
| Total Gas Produced (MCF) | 11096 |
| GOR | 184933 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.401 |
| Average MCFE per Day | 31.353 |
| Federal Financial Assurance | i | |
|
|
