COGIS - WELL SCOUT CARD

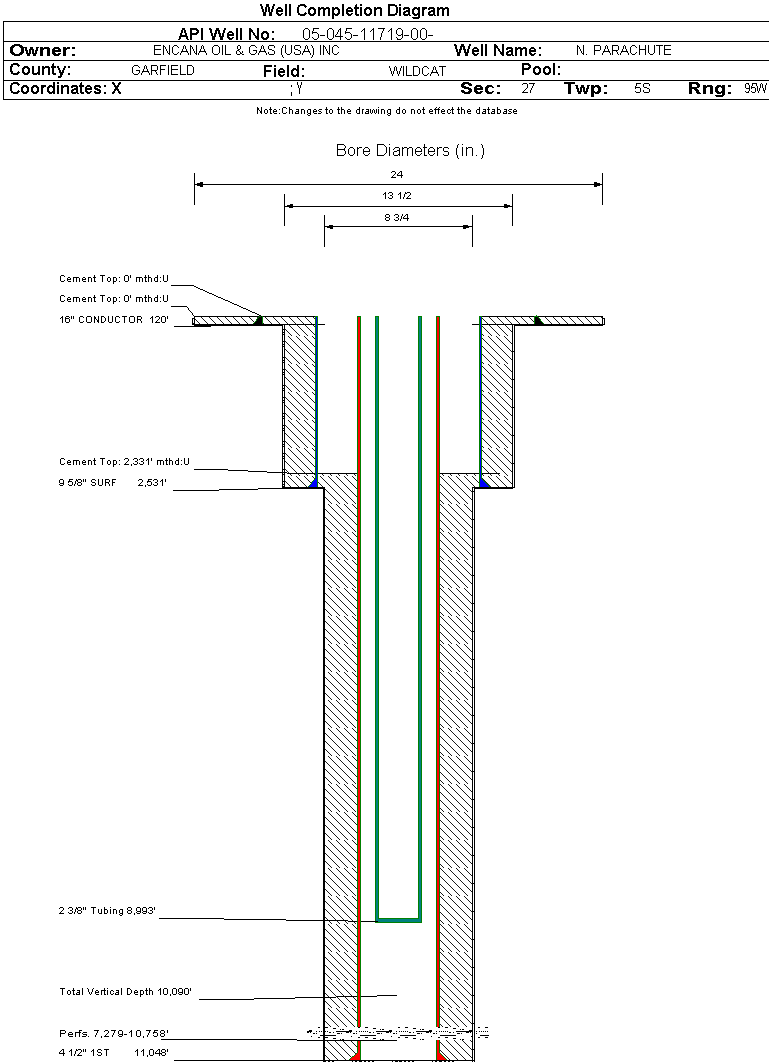

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11719		Well Classification: GW Status: PR - 5/9/2008
Well Name/No:N. PARACHUTE #EF05D-22D27 595
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/9/2008
FacilityID:282308LocationID:335574
County:GARFIELD #045Location:NWNW 27 5S95W 6
Field:GRAND VALLEY - #31290Elevation:6359 ft.
Basin:PICEANCE BASIN
Planned Location:642FNL  871 FWLLat/Long: 39.590256 / -108.046864Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.590256 / -108.046864Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/9/2008             Measured TD: 11073 ft.    Vertical TD: 10090 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/9/2008
Wellbore PermitDIRECTIONAL
Permit #:20071611 Expiration Date:4/22/2008
Proposed Top PZ Location:Sec:22 Twp: 5S 95W Footage: 2505 FNL  701 FWL
Bottom Hole Location:Sec:22 Twp: 5S 95W Footage: 2505 FNL  701 FWL
Proposed Depth/Form:11711 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/13/2008
Spud Date:11/23/2007Spud Date Is:ACTUAL
Measured TD:11073 ft.Measured PB depth:11018 ft.
True Vertical TD:10090 ft.True Vertical PB depth:10035 ft.
Top PZ Location:Sec:22 Twp: 5S 95WFootage: 2505 FNL  701 FWL
Bottom Hole Location:Sec:22 Twp: 5S 95WFootage: 2505 FNL  701 FWL
Log Types:MUD, CBL
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2531 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 319, Top: 0 ft., Bottom: 2543 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11048 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1595, Top: 2331 ft., Bottom: 11048 ft., Determination Method: CBL

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/9/2008                  Interval Top: 7279 ft.    Interval Bottom: 10758 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:5/2/2008Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/1/2008
Treatment Summary:STAGES 01-10 TREATED WITH A TOTAL OF: 53022 BBLS OF SLICKWATER, 438697 LBS 20-40 SAND, 137810 LBS 30-50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8993 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/9/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1170
CALC_MCF_GAS 830
CASING_PRESS 775
MCF_GAS 830
TUBING_PRESS 225
Perforation Data:
Interval Top:7279 ft.# Of Holes:300
Interval Bottom:10758 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)45
Total Gas Produced (MCF)7881
GOR175133
GOR DeterminationMCFE
Average BOE per Day3.847
Average MCFE per Day22.308

 Federal Financial Assurance  i

 Tribal Well  i No
