Wellbore #00 Wellbore Classification: GW Status: PR - 1/4/2007 Measured TD: 9420 ft. Vertical TD: 9411 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/4/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054378 | Expiration Date: | 12/27/2006 | | Proposed Top PZ Location: | Sec:19 Twp: 5S 95W | Footage: 1650 FNL 990 FWL | | Bottom Hole Location: | Sec:19 Twp: 5S 95W | Footage: 1650 FNL 990 FWL | | Proposed Depth/Form: | 10313 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: |
| | |

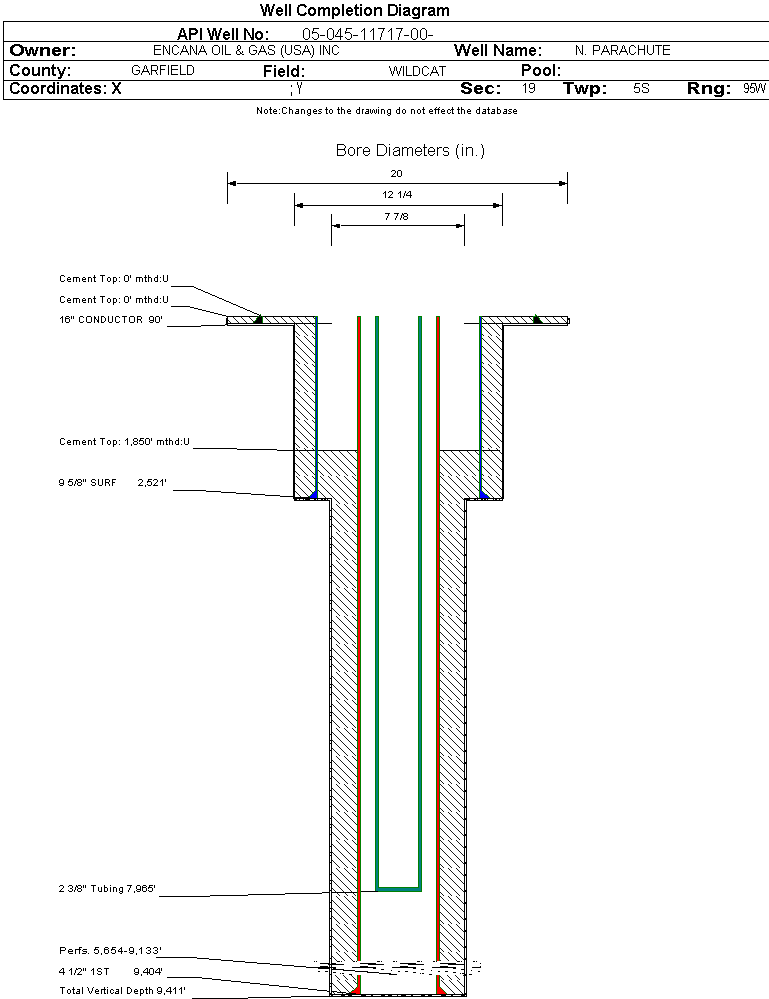

| Wellbore Completed | | Completion Date: | 7/1/2006 | | Spud Date: | 6/17/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 9420 ft. | Measured PB depth: | 9359 ft. | | True Vertical TD: | 9411 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:19 Twp: 5S 95W | Footage: 1541 FNL 1088 FWL | | Bottom Hole Location: | Sec:19 Twp: 5S 95W | Footage: 1541 FNL 1088 FWL | | Log Types: | CBL/GR/CCL; MUDLOG | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 90 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 90 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2521 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 2535 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9404 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1365, Top: 1850 ft., Bottom: 9420 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5525 ft. | 9256 ft. | N | N | | ROLLINS | 9256 ft. | 9420 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/4/2007 Interval Top: 5654 ft. Interval Bottom: 9133 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 10/3/2006 | Choke Size: | 0.333 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/11/2006 | | Treatment Summary: | STAGES 01-09 TREATED WITH A TOTAL OF: 46,888 BBLS OF SLICKWATER W/1,510,470 LBS 20-40 SAND AND 180 BBLS 15% HCL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7965 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/4/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1271 | | CASING_PRESS | 994 | | MCF_GAS | 1271 | | TUBING_PRESS | 739 |
| | Perforation Data: | | Interval Top: | 5654 ft. | # Of Holes: | 228 | | Interval Bottom: | 9133 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 56 |
| Total Gas Produced (MCF) | 10862 |
| GOR | 193964 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.277 |
| Average MCFE per Day | 30.602 |
| Federal Financial Assurance | i | |
|
|
