Wellbore #00 Wellbore Classification: GW Status: PR - 9/14/2006 Measured TD: 8255 ft. Vertical TD: 8237 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/14/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064788 | Expiration Date: | 10/29/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1040 FSL 1645 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1040 FNL 1645 FEL | | Proposed Depth/Form: | 8259 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2 |
| | |

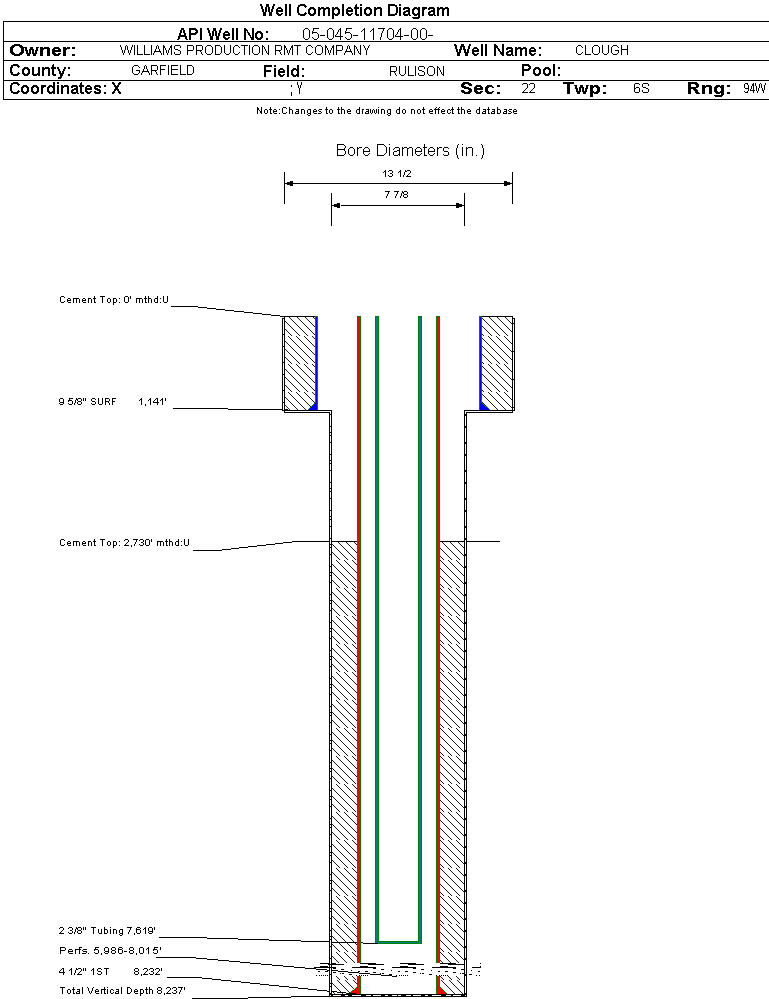

| Wellbore Completed | | Completion Date: | 4/16/2007 | | Spud Date: | 4/1/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8255 ft. | Measured PB depth: | 8058 ft. | | True Vertical TD: | 8237 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:22 Twp: 6S 94W | Footage: 1024 FNL 1636 FEL | | Bottom Hole Location: | Sec:22 Twp: 6S 94W | Footage: 1024 FNL 1636 FEL | | Log Types: | CBL; HIGH RESOLUTION IND, SPECTRAL DENSITY, DUAL SPACED NEUTRON; MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1141 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 1141 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8232 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1322, Top: 2730 ft., Bottom: 8232 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1861 ft. | | N | N | | MESAVERDE | 4374 ft. | | N | N | | CAMEO | 7226 ft. | | N | N | | ROLLINS | 8123 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 7/11/2007 Interval Top: 5986 ft. Interval Bottom: 8015 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/24/2007 | Choke Size: | 0.234 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/23/2007 | | Treatment Summary: | 3250 GALS 7 1/2% HCL; 610300 #20/40 SAND; 18458 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7619 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/11/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1352 | | MCF_GAS | 1264 | | TUBING_PRESS | 1161 |
| | Perforation Data: | | Interval Top: | 5986 ft. | # Of Holes: | 118 | | Interval Bottom: | 8015 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 31 |
| Total Gas Produced (MCF) | 19873 |
| GOR | 641064 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.467 |
| Average MCFE per Day | 54.929 |
| Federal Financial Assurance | i | |
|
|
