Wellbore #00 Wellbore Classification: GW Status: PR - 5/27/2006 Measured TD: 7703 ft. Vertical TD: 7630 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/27/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054478 | Expiration Date: | 12/15/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 567 FNL 2160 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 567 FNL 2160 FWL | | Proposed Depth/Form: | 7695 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2 |
| | |

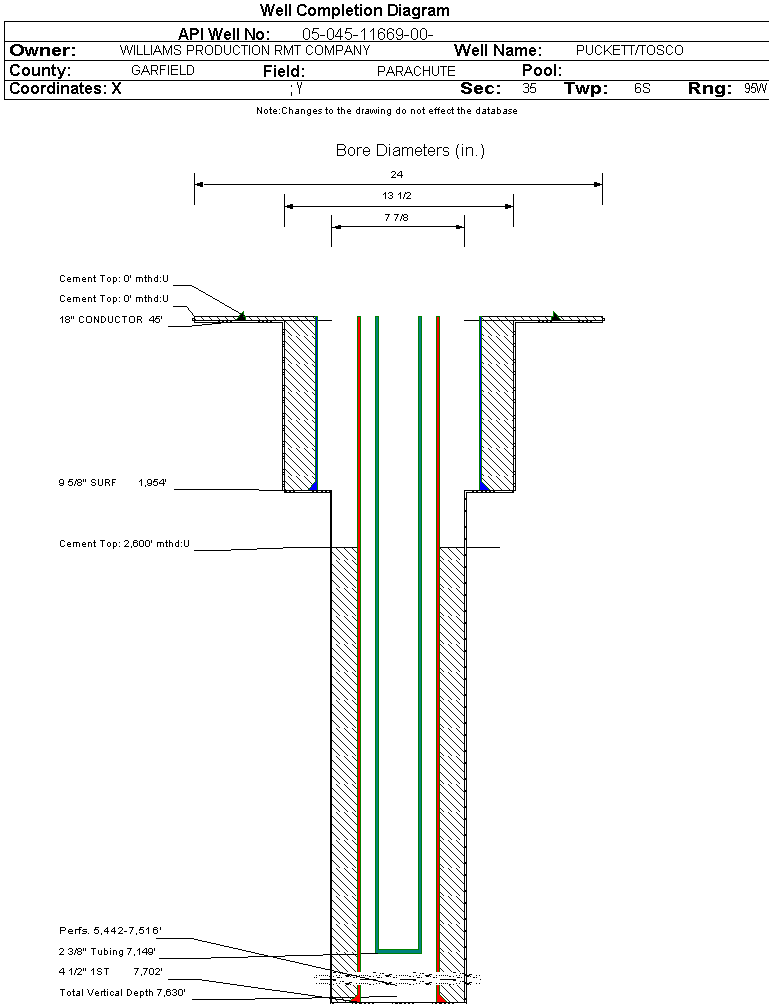

| Wellbore Completed | | Completion Date: | 3/14/2006 | | Spud Date: | 3/1/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7703 ft. | Measured PB depth: | 7670 ft. | | True Vertical TD: | 7630 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:35 Twp: 6S 95W | Footage: 560 FNL 2134 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 95W | Footage: 560 FNL 2134 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1954 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 520, Top: 0 ft., Bottom: 1954 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7702 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1030, Top: 2600 ft., Bottom: 7702 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1774 ft. | | N | N | | FORT UNION | 2067 ft. | | N | N | | MESAVERDE | 4120 ft. | | N | N | | CAMEO | 6946 ft. | | N | N | | ROLLINS | 7604 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/27/2006 Interval Top: 5442 ft. Interval Bottom: 7516 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/9/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/8/2006 | | Treatment Summary: | 3,546 GALS 7 1/2% HCL; 844,200# 30/50 SAND; 20,102 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7149 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/27/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1013 | | CASING_PRESS | 1387 | | MCF_GAS | 1013 | | TUBING_PRESS | 1222 |
| | Perforation Data: | | Interval Top: | 5442 ft. | # Of Holes: | 136 | | Interval Bottom: | 7516 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 7548 |
| GOR | 686181 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.597 |
| Average MCFE per Day | 20.860 |
| Federal Financial Assurance | i | |
|
|
