Wellbore #00 Wellbore Classification: GW Status: PR - 5/16/2006 Measured TD: 7580 ft. Vertical TD: 7568 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/16/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054480 | Expiration Date: | 12/15/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1151 FNL 2101 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1151 FNL 2101 FWL | | Proposed Depth/Form: | 7602 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: , Drill Unit: |
| | |

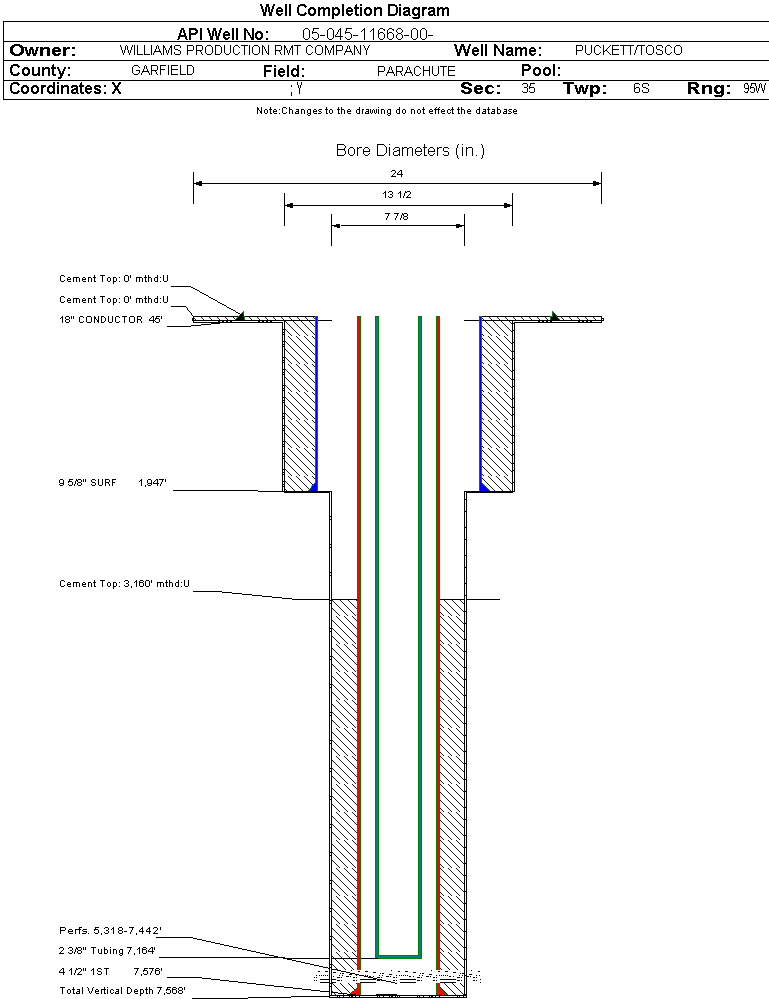

| Wellbore Completed | | Completion Date: | 3/26/2006 | | Spud Date: | 3/15/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7580 ft. | Measured PB depth: | 7544 ft. | | True Vertical TD: | 7568 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:35 Twp: 6S 95W | Footage: 1137 FNL 2109 FWL | | Bottom Hole Location: | Sec:35 Twp: 6S 95W | Footage: 1137 FNL 2109 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1947 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 521, Top: 0 ft., Bottom: 1946 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7576 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1015, Top: 3160 ft., Bottom: 7576 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1740 ft. | | N | N | | FORT UNION | 2032 ft. | | N | N | | MESAVERDE | 4009 ft. | | N | N | | CAMEO | 6833 ft. | | N | N | | ROLLINS | 7502 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/16/2006 Interval Top: 5318 ft. Interval Bottom: 7442 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/9/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/8/2006 | | Treatment Summary: | 4,034 GALS 7.5% HCL; 965,700# 30/50 SAND; 22,562 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7164 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/16/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1221 | | CASING_PRESS | 1507 | | MCF_GAS | 1221 | | TUBING_PRESS | 1372 |
| | Perforation Data: | | Interval Top: | 5318 ft. | # Of Holes: | 165 | | Interval Bottom: | 7442 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 8894 |
| GOR | 808545 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.233 |
| Average MCFE per Day | 24.549 |
| Federal Financial Assurance | i | |
|
|
