Wellbore #00 Wellbore Classification: GW Status: PR - 5/31/2006 Measured TD: 6224 ft. Vertical TD: 6206 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/31/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054359 | Expiration Date: | 12/15/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1564 FNL 848 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1564 FNL 848 FWL | | Proposed Depth/Form: | 6240 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-28 , Unit Acreage: 320, Drill Unit: W2 |
| | |

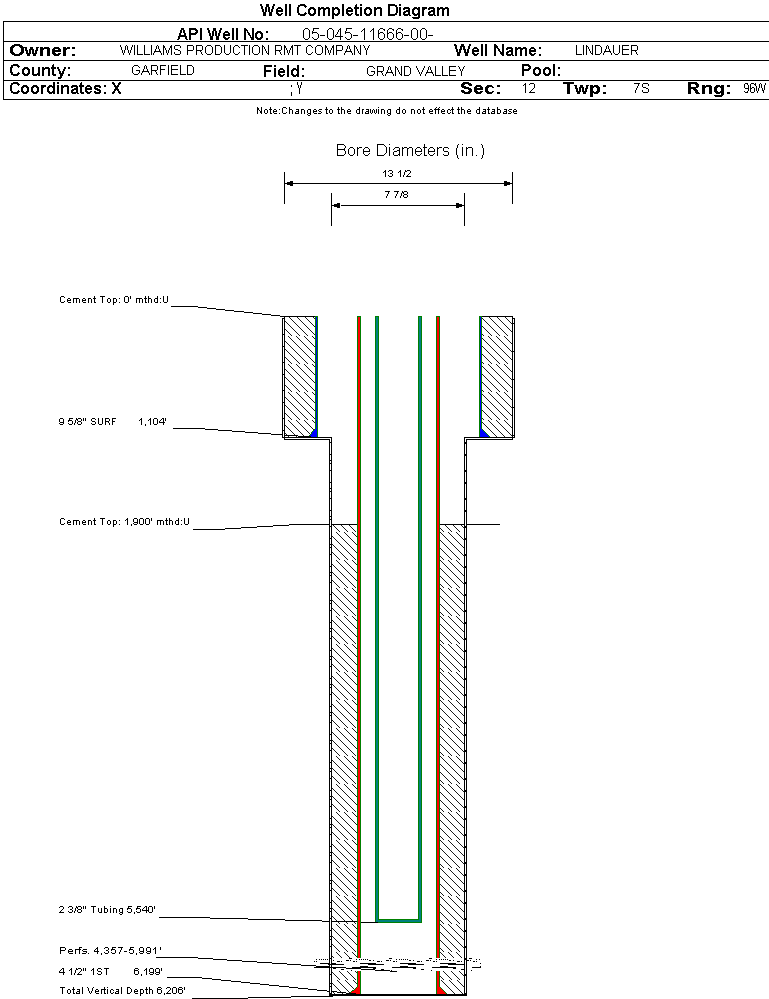

| Wellbore Completed | | Completion Date: | 4/20/2006 | | Spud Date: | 4/11/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6224 ft. | Measured PB depth: | 6120 ft. | | True Vertical TD: | 6206 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:12 Twp: 7S 96W | Footage: 1543 FNL 777 FWL | | Bottom Hole Location: | Sec:12 Twp: 7S 96W | Footage: 1543 FNL 777 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1104 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1104 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6199 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 810, Top: 1900 ft., Bottom: 6199 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1315 ft. | | N | N | | FORT UNION | 1607 ft. | | N | N | | MESAVERDE | 3069 ft. | | N | N | | CAMEO | 5604 ft. | | N | N | | ROLLINS | 6071 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/31/2006 Interval Top: 4357 ft. Interval Bottom: 5991 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/10/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/6/2006 | | Treatment Summary: | 2863 GALS 7 1/2% HCL; 876200 # 20/50 SAND; 20219 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5540 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 1395 | | CASING_PRESS | 1737 | | TUBING_PRESS | 1641 |
| | Perforation Data: | | Interval Top: | 4357 ft. | # Of Holes: | 114 | | Interval Bottom: | 5991 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 19 |
| Total Gas Produced (MCF) | 15666 |
| GOR | 824526 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.457 |
| Average MCFE per Day | 43.227 |
| Federal Financial Assurance | i | |
|
|
