Wellbore #00 Wellbore Classification: GW Status: PR - 9/21/2006 Measured TD: 9699 ft. Vertical TD: 9622 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/21/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054640 | Expiration Date: | 12/13/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1650 FNL 2310 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1650 FNL 2310 FEL | | Proposed Depth/Form: | 10500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: |
| | |

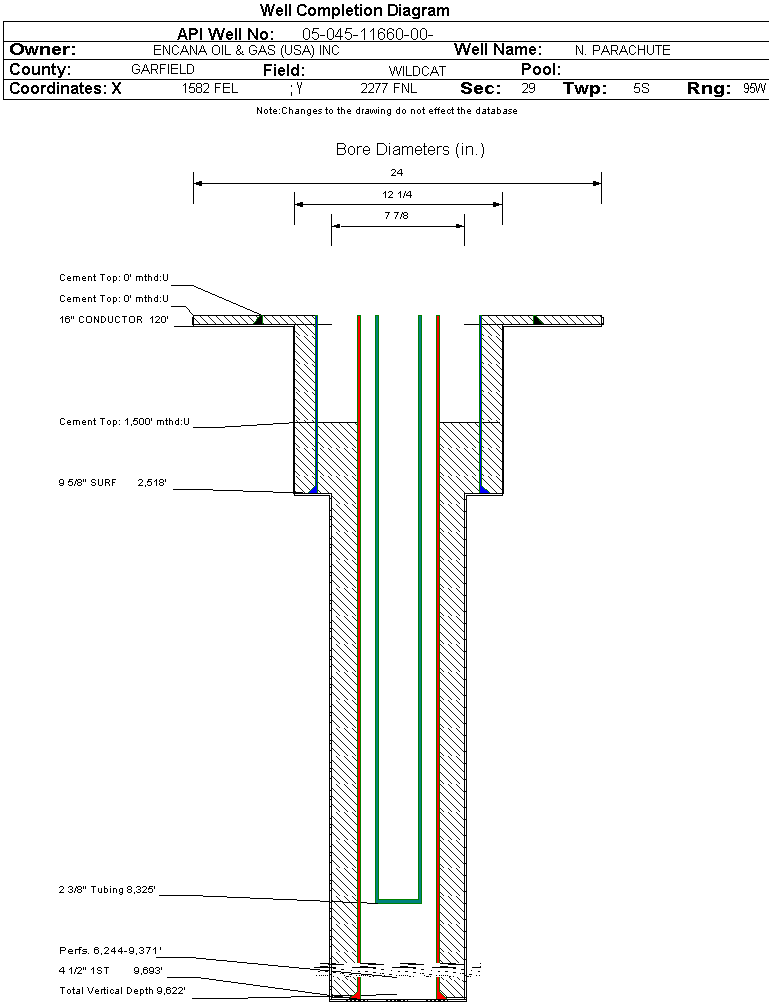

| Wellbore Completed | | Completion Date: | 5/30/2006 | | Spud Date: | 5/8/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 9699 ft. | Measured PB depth: | 9647 ft. | | True Vertical TD: | 9622 ft. | True Vertical PB depth: | 9570 ft. | | Top PZ Location: | Sec:29 Twp: 5S 95W | Footage: 1613 FNL 2230 FEL | | Bottom Hole Location: | Sec:29 Twp: 5S 95W | Footage: 1613 FNL 2230 FEL | | Log Types: | CBL, MUD, ARRAY INDUCTION | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2518 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 970, Top: 0 ft., Bottom: 2530 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9693 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1850, Top: 1500 ft., Bottom: 9669 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5832 ft. | 9498 ft. | N | N | | ROLLINS | 9498 ft. | 9622 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/21/2006 Interval Top: 6244 ft. Interval Bottom: 9371 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/12/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/28/2006 | | Treatment Summary: | STAGES 01-10 TREATED WITH A TOTAL OF 34,079 BBLS OF SLICKWATER 1,339,468 LBS 20-40 SAND 210 BBLS 15% HCL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8325 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/21/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1455 |
| | Perforation Data: | | Interval Top: | 6244 ft. | # Of Holes: | 246 | | Interval Bottom: | 9371 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 80 |
| Total Gas Produced (MCF) | 14584 |
| GOR | 182300 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.118 |
| Average MCFE per Day | 41.262 |
| Federal Financial Assurance | i | |
|
|
