COGIS - WELL SCOUT CARD

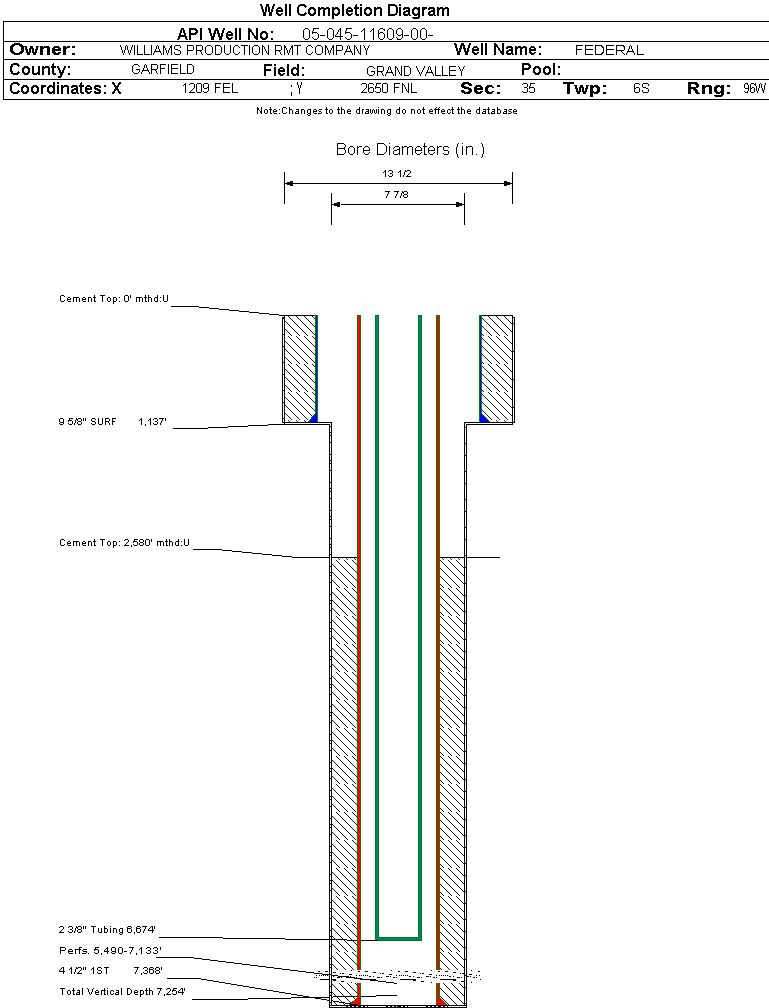

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11609		Well Classification: GW Status: PR - 9/14/2006
Well Name/No:FEDERAL #GM 432-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62163
Facility Status:PRStatus Date9/14/2006
FacilityID:282012LocationID:335148
County:GARFIELD #045Location:SENE 35 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5826 ft.
Basin:PICEANCE BASIN
Planned Location:2650FNL  1209 FELLat/Long: 39.480469 / -108.070955Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480705 / -108.070967Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/14/2006             Measured TD: 7382 ft.    Vertical TD: 7254 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/14/2006
Wellbore PermitDIRECTIONAL
Permit #:20064749 Expiration Date:10/26/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2209 FNL  2189 FEL
Bottom Hole Location:Sec: Twp: Footage: 2209 FNL  2189 FEL
Proposed Depth/Form:7369 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:1/5/2007
Spud Date:12/28/2006Spud Date Is:ACTUAL
Measured TD:7382 ft.Measured PB depth:7336 ft.
True Vertical TD:7254 ft.True Vertical PB depth:
Top PZ Location:Sec:35 Twp: 6S 96WFootage: 2190 FNL  2196 FEL
Bottom Hole Location:Sec:35 Twp: 6S 96WFootage: 2190 FNL  2196 FEL
Log Types:CBL; DSN/SD/HRI; RESV PERFORMANCE MONITOR; MUDLOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1137 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 1137 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7368 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 826, Top: 2580 ft., Bottom: 7368 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2275 ft.NN
FORT UNION2581 ft.NN
MESAVERDE4148 ft.NN
CAMEO6702 ft.NN
ROLLINS7216 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/18/2007                 Interval Top: 5490 ft.    Interval Bottom: 7133 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/25/2007Choke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/10/2007
Treatment Summary:3544 GALS 7 1/2% HCL; 916700# 30/50 SAND; 23383 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6674 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/18/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1058
MCF_GAS 923
TUBING_PRESS 759
Perforation Data:
Interval Top:5490 ft.# Of Holes:109
Interval Bottom:7133 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)35
Total Gas Produced (MCF)19046
GOR544171
GOR DeterminationMCFE
Average BOE per Day9.099
Average MCFE per Day52.751

 Federal Financial Assurance  i Y

 Tribal Well  i No
