Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2025 Measured TD: 10750 ft. Vertical TD: 10704 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054039 | Expiration Date: | 12/4/2006 | | Proposed Top PZ Location: | Sec:4 Twp: 5S 96W | Footage: 1650 FSL 2310 FWL | | Bottom Hole Location: | Sec:4 Twp: 5S 96W | Footage: 1650 FSL 2310 FWL | | Proposed Depth/Form: | 12051 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit: |
| | |

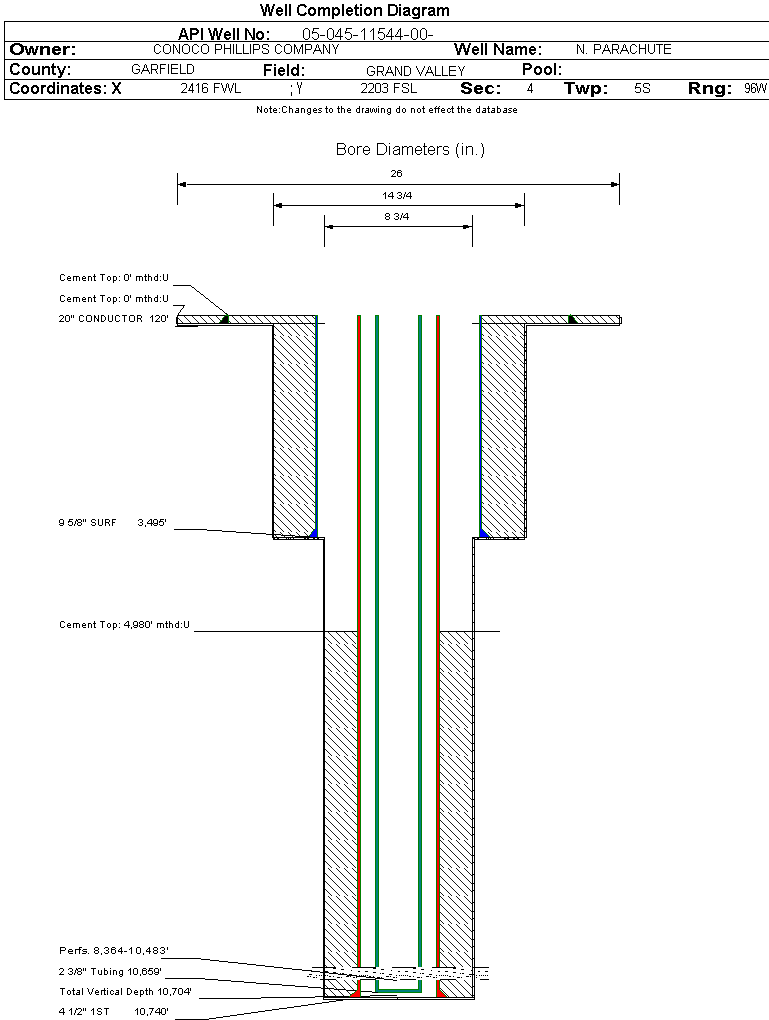

| Wellbore Completed | | Completion Date: | 12/10/2006 | | Spud Date: | 10/31/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 10750 ft. | Measured PB depth: | | | True Vertical TD: | 10704 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:4 Twp: 5S 96W | Footage: 1641 FSL 2361 FEL | | Bottom Hole Location: | Sec:4 Twp: 5S 96W | Footage: 1641 FSL 2361 FEL | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 120 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3495 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 2748, Top: 0 ft., Bottom: 3495 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10740 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 792, Top: 4980 ft., Bottom: 10740 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3172 ft. | | N | N | | WASATCH G | 5326 ft. | | N | N | | OHIO CREEK | 6610 ft. | | N | N | | WILLIAMS FORK | 7000 ft. | | N | N | | CAMEO | 10066 ft. | | N | N | | ROLLINS | 10628 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: SI - 9/1/2025 Interval Top: 8364 ft. Interval Bottom: 10483 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/19/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/11/2007 | | Treatment Summary: | STAGE 1-13: 4092 GAL 13% HCL, 35,714 BBLS SLICKWATER, 203,000# JORDAN-UNIMIN 40/70 SAND, 240,720#S ACFRAC SB EXCEL, 861,080# JORDAN-UNIMIN 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 10659 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/19/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 753 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 753 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1240 | | CASING_PRESS | 225 | | MCF_GAS | 1240 | | TUBING_PRESS | 475 |
| | Perforation Data: | | Interval Top: | 8364 ft. | # Of Holes: | 165 | | Interval Bottom: | 10483 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 26 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.011 |
| Average MCFE per Day | 0.070 |
| Federal Financial Assurance | i | |
|
|
