Wellbore #00 Wellbore Classification: GW Status: SI - 9/1/2025 Measured TD: 12179 ft. Vertical TD: 11940 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 9/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20070004 | Expiration Date: | 1/18/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1650 FSL 1650 FEL | | Bottom Hole Location: | Sec:4 Twp: 5S 96W | Footage: 1650 FSL 1650 FEL | | Proposed Depth/Form: | 10959 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15 , Unit Acreage: , Drill Unit: |
| | |

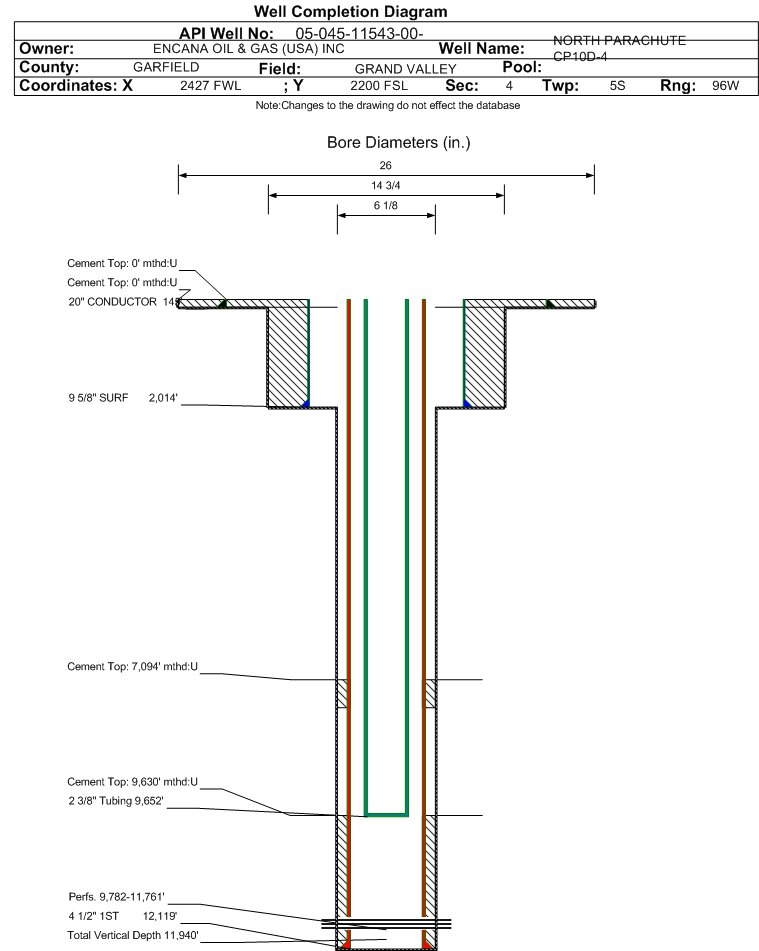

| Wellbore Completed | | Completion Date: | 6/20/2007 | | Spud Date: | 5/15/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 12179 ft. | Measured PB depth: | 11940 ft. | | True Vertical TD: | 11940 ft. | True Vertical PB depth: | 11701 ft. | | Top PZ Location: | Sec:4 Twp: 5S 96W | Footage: 1596 FSL 1658 FEL | | Bottom Hole Location: | Sec:4 Twp: 5S 96W | Footage: 1596 FSL 1658 FEL | | Log Types: | CAL, GR, CEMENT EVAL, ARAY INDUCTION GR/SP,CBL, VDL, GR-CCL-TEMP, MICROLOG GR, SPEC GR | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 145 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 6, Top: , Bottom: 145 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2014 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1407, Top: , Bottom: 2014 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 12119 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 9630 ft., Bottom: 12119 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7620 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 235, Top: 7094 ft., Bottom: 7620 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3162 ft. | | N | N | | WASATCH G | 5382 ft. | | N | N | | OHIO CREEK | 6679 ft. | | N | N | | WILLIAMS FORK | 7036 ft. | | N | N | | CAMEO | 10062 ft. | | N | N | | ROLLINS | 10629 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: SI - 9/1/2025 Interval Top: 9782 ft. Interval Bottom: 11761 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/19/2007 | Choke Size: | 0.500 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/10/2007 | | Treatment Summary: | STAGES 01-10: 190.47 BBLS 7.5% HCL, STAGES 01-10: 30518.7 BBLS SLICKWATER, STAGES 01-10: 1,104,500 LBS 20/40 JORDAN-UNIMIN 60,500 LBS ACFRAC SB EXCEL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9652 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/19/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 469 | | BBLS_OIL | 0 | | BTU_GAS | 0 | | CALC_BBLS_H2O | 469 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 712 | | CASING_PRESS | 0 | | MCF_GAS | 712 | | TUBING_PRESS | 640 |
| | Perforation Data: | | Interval Top: | 9782 ft. | # Of Holes: | 72 | | Interval Bottom: | 11761 ft. | Hole Size: | 0.44 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 33 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.016 |
| Average MCFE per Day | 0.089 |
| Federal Financial Assurance | i | |
|
|
