COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11483		Well Classification: GW Status: PR - 11/22/2005
Well Name/No:CLOUGH #RWF 532-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/22/2005
FacilityID:281567LocationID:335110
County:GARFIELD #045Location:SENE 22 6S94W 6
Field:RULISON - #75400Elevation:5235 ft.
Basin:PICEANCE BASIN
Planned Location:2247FNL  734 FELLat/Long: 39.511719 / -107.867729Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.511751 / -107.867582Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/12/2005             Measured TD: 7827 ft.    Vertical TD: 7681 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/12/2005
Wellbore PermitDIRECTIONAL
Permit #:20053923 Expiration Date:11/21/2006
Proposed Top PZ Location:Sec:22 Twp: 6S 94W Footage: 2530 FNL  1842 FEL
Bottom Hole Location:Sec:22 Twp: 6S 94W Footage: 2530 FNL  1842 FEL
Proposed Depth/Form:7891 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:4/7/2006
Spud Date:3/25/2006Spud Date Is:ACTUAL
Measured TD:7827 ft.Measured PB depth:7670 ft.
True Vertical TD:7681 ft.True Vertical PB depth:
Top PZ Location:Sec:22 Twp: 6S 94WFootage: 2492 FNL  1842 FEL
Bottom Hole Location:Sec:22 Twp: 6S 94WFootage: 2492 FNL  1842 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

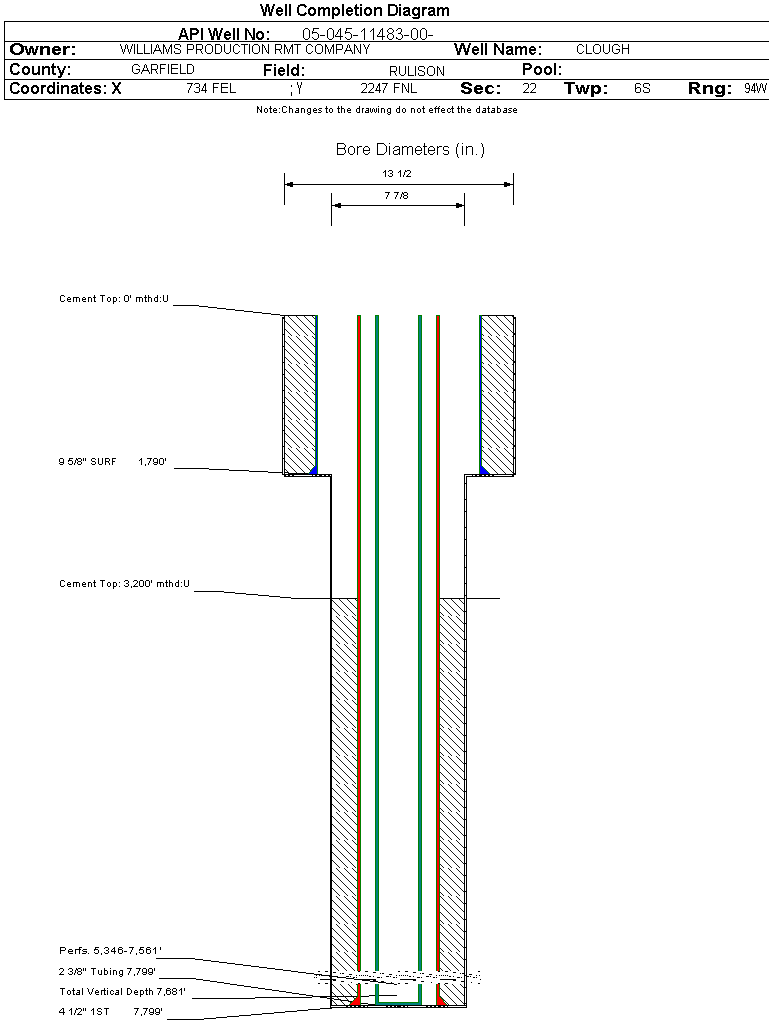

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1790 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 455, Top: 0 ft., Bottom: 1790 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7799 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1635, Top: 3200 ft., Bottom: 7799 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH1456 ft.NN
MESAVERDE4089 ft.NN
CAMEO6930 ft.NN
ROLLINS7793 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/16/2006                 Interval Top: 5346 ft.    Interval Bottom: 7561 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/26/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/25/2006
Treatment Summary:3535 GALS 7 1/2% HCL, 1015 GALS ACID BALLOUT; 746900# 20/40 SAND;18687 BBLS SLICKWAT
Tubing Size:2.375 in.Tubing Setting Depth:7799 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/16/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1629
MCF_GAS 1177
TUBING_PRESS 1445
Perforation Data:
Interval Top:5346 ft.# Of Holes:139
Interval Bottom:7561 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)44
Total Gas Produced (MCF)19802
GOR450045
GOR DeterminationMCFE
Average BOE per Day9.519
Average MCFE per Day55.243

 Federal Financial Assurance  i

 Tribal Well  i No
