COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11476		Well Classification: GW Status: PR - 12/13/2007
Well Name/No:CLOUGH #RWF 534-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/13/2007
FacilityID:281513LocationID:335181
County:GARFIELD #045Location:SWSE 22 6S94W 6
Field:RULISON - #75400Elevation:5216 ft.
Basin:PICEANCE BASIN
Planned Location:759FSL  1959 FELLat/Long: 39.505469 / -107.872059Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.505584 / -107.871928Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/13/2007             Measured TD: 7713 ft.    Vertical TD: 7647 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/13/2007
Wellbore PermitDIRECTIONAL
Permit #:20064798 Expiration Date:10/29/2007
Proposed Top PZ Location:Sec: Twp: Footage: 204 FSL  2526 FEL
Bottom Hole Location:Sec: Twp: Footage: 204 FSL  2526 FEL
Proposed Depth/Form:7653 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:1/11/2007
Spud Date:12/30/2006Spud Date Is:ACTUAL
Measured TD:7713 ft.Measured PB depth:7535 ft.
True Vertical TD:7647 ft.True Vertical PB depth:
Top PZ Location:Sec:22 Twp: 6S 94WFootage: 218 FSL  2520 FEL
Bottom Hole Location:Sec:22 Twp: 6S 94WFootage: 218 FSL  2520 FEL
Log Types:CBL; HRI/SD/DSN; MUDLOG

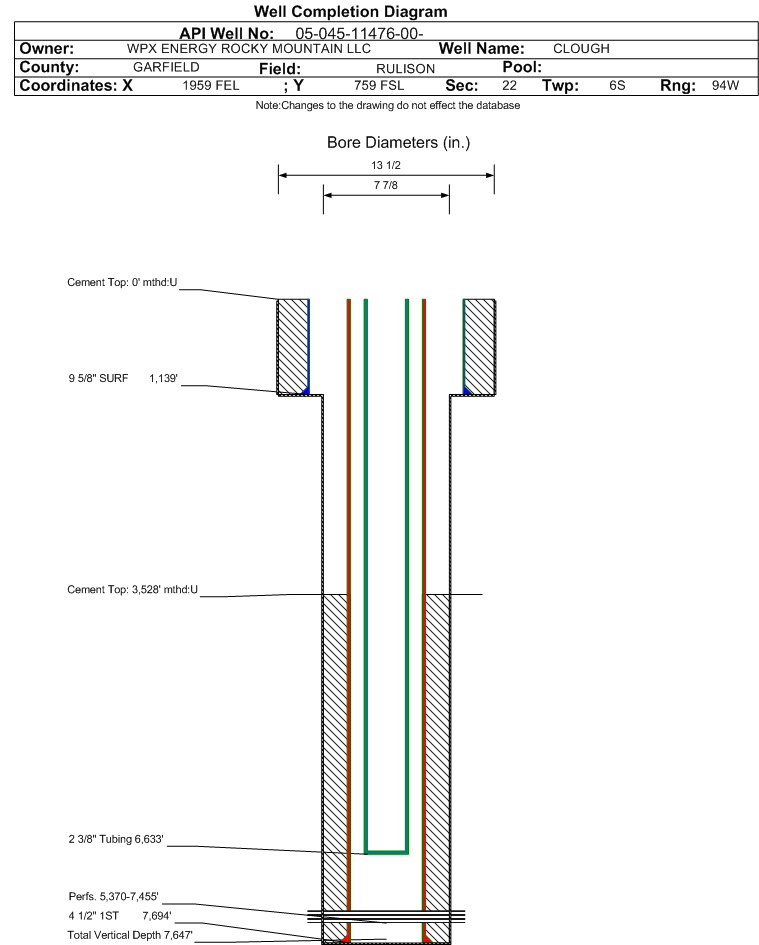

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1139 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 385, Top: 0 ft., Bottom: 1139 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7694 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1263, Top: 3528 ft., Bottom: 7694 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1384 ft.NN
MESAVERDE3911 ft.NN
CAMEO6706 ft.NN
ROLLINS7680 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/13/2007                Interval Top: 5370 ft.    Interval Bottom: 7455 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/5/2007Choke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/3/2007
Treatment Summary:3,003 GALS 7.5% HCL; 699,200# 20/40 SAND; 18,057 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6633 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/17/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CASING_PRESS 1611
MCF_GAS 944
TUBING_PRESS 1404
Perforation Data:
Interval Top:5370 ft.# Of Holes:126
Interval Bottom:7455 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)12909
GOR806812
GOR DeterminationMCFE
Average BOE per Day6.144
Average MCFE per Day35.637

 Federal Financial Assurance  i

 Tribal Well  i No
