COGIS - WELL SCOUT CARD

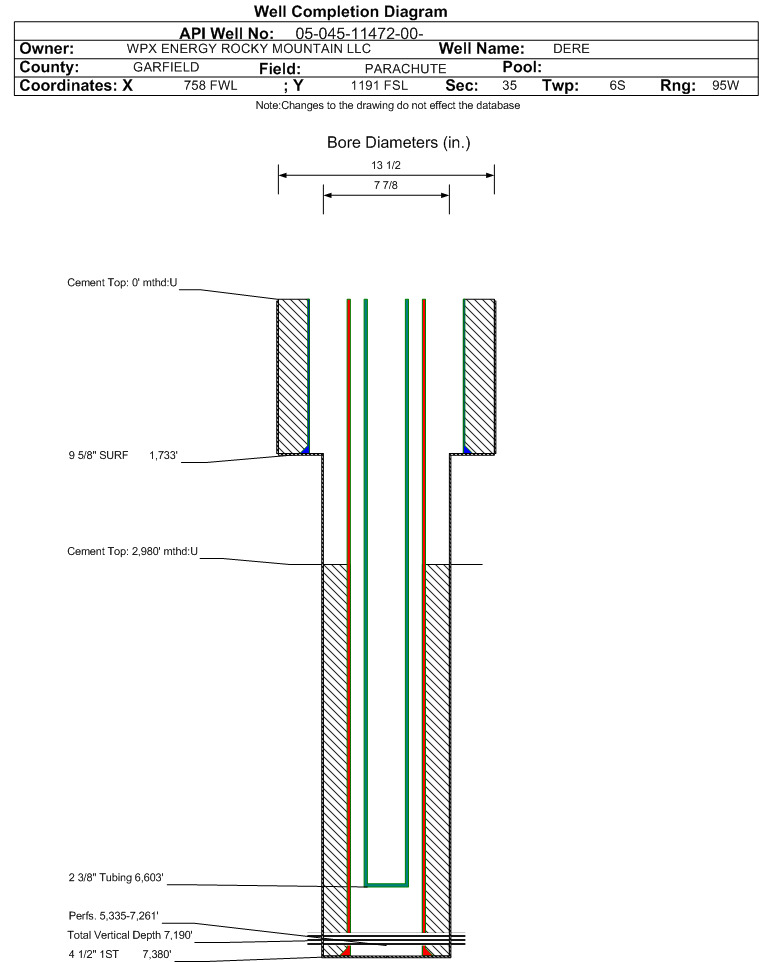

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-11472		Well Classification: GW Status: PR - 4/11/2007
Well Name/No:DERE #PA 23-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/11/2007
FacilityID:281506LocationID:334772
County:GARFIELD #045Location:SWSW 35 6S95W 6
Field:PARACHUTE - #67350Elevation:5122 ft.
Basin:PICEANCE BASIN
Planned Location:1191FSL  758 FWLLat/Long: 39.477149 / -107.972662Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476926 / -107.972515Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/11/2007             Measured TD: 7395 ft.    Vertical TD: 7190 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/11/2007
Wellbore PermitDIRECTIONAL
Permit #:20053912 Expiration Date:11/20/2006
Proposed Top PZ Location:Sec: Twp: Footage: 1598 FSL  2035 FWL
Bottom Hole Location:Sec: Twp: Footage: 1598 FSL  2035 FWL
Proposed Depth/Form:7467 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-28 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:5/7/2006
Spud Date:4/24/2006Spud Date Is:ACTUAL
Measured TD:7395 ft.Measured PB depth:7360 ft.
True Vertical TD:7190 ft.True Vertical PB depth:
Top PZ Location:Sec:35 Twp: 6S 95WFootage: 1596 FSL  2028 FWL
Bottom Hole Location:Sec:35 Twp: 6S 95WFootage: 1596 FSL  2028 FWL
Log Types:CBL; HIGH REOLUTION INDUCTION; SPECTRAL DENSITY/DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1733 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 468, Top: 0 ft., Bottom: 1733 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7380 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 952, Top: 2980 ft., Bottom: 7380 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1459 ft.NN
FORT UNION1827 ft.NN
MESAVERDE3903 ft.NN
CAMEO6659 ft.NN
ROLLINS7366 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 5335 ft.    Interval Bottom: 7261 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/21/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/20/2006
Treatment Summary:3007 GALS 7 1/2% HCL; 630,000# 30/50 SAND; 15,885 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6603 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/19/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CASING_PRESS 1844
MCF_GAS 1464
TUBING_PRESS 1667
Perforation Data:
Interval Top:5335 ft.# Of Holes:107
Interval Bottom:7261 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)13374
GOR835875
GOR DeterminationMCFE
Average BOE per Day6.363
Average MCFE per Day36.913

 Federal Financial Assurance  i

 Tribal Well  i No
