Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-11470		Well Classification: GW	Status: PR - 9/14/2006
Well Name/No:	FEDERAL #RMV 167-17 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	CACOC42346
Facility Status:	PR	Status Date	9/14/2006
FacilityID:	281503	LocationID:	335063
County:	GARFIELD #045	Location:	NWSE 17 6S94W 6
Field:	RULISON - #75400	Elevation:	5680 ft.
Basin:	PICEANCE BASIN
Planned Location:	1682FSL 1855 FEL	Lat/Long: 39.522459 / -107.909441	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.522532 / -107.909504	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 9/14/2006 Measured TD: 8545 ft. Vertical TD: 8345 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 9/14/2006
Wellbore Permit			DIRECTIONAL
Permit #:	20064755	Expiration Date:	10/26/2007
Proposed Top PZ Location:	Sec: Twp:	Footage: 1580 FSL 1905 FWL
Bottom Hole Location:	Sec:17 Twp: 6S 94W	Footage: 1580 FSL 1905 FWL
Proposed Depth/Form:	8504 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: W2
Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED
Cement:	Sacks: 25, Top: 0 ft., Bottom: 45 ft.

Wellbore Completed
Completion Date:	1/20/2007
Spud Date:	12/30/2006	Spud Date Is:	ACTUAL
Measured TD:	8545 ft.	Measured PB depth:	8436 ft.
True Vertical TD:	8345 ft.	True Vertical PB depth:
Top PZ Location:	Sec:17 Twp: 6S 94W	Footage: 1545 FSL 1925 FWL
Bottom Hole Location:	Sec:17 Twp: 6S 94W	Footage: 1545 FSL 1925 FWL
Log Types:	CBL; HIGH RESOLUTION IND/SPECTRAL DEN/ DUAL SPACED NEU; MUDLOG

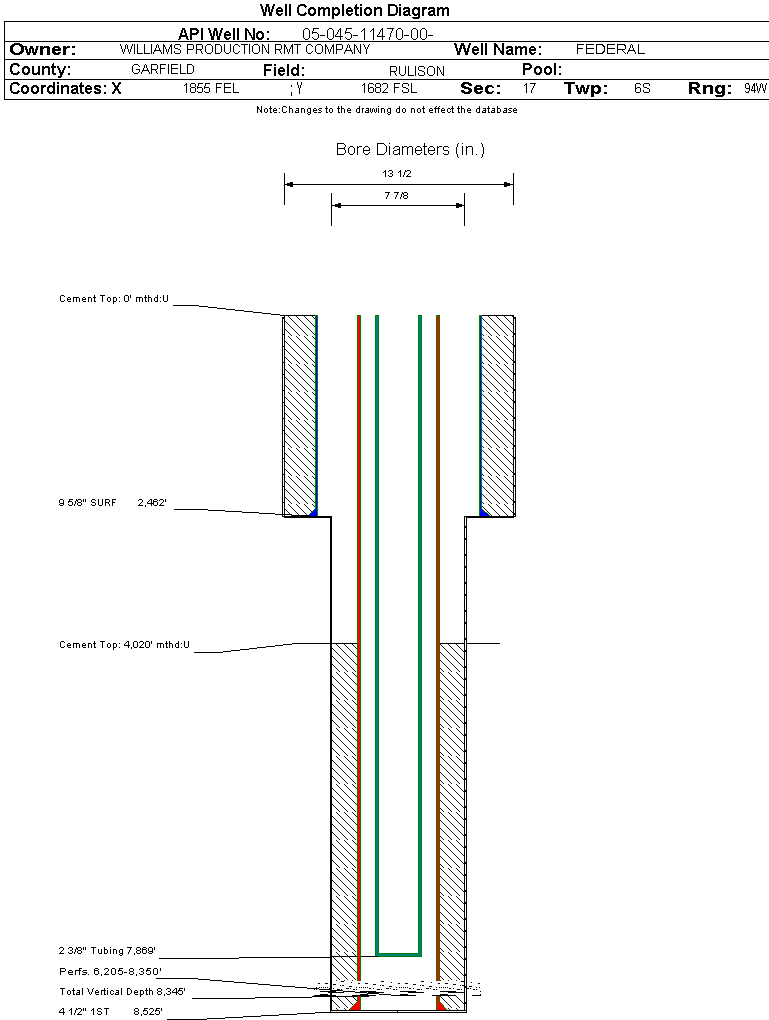

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2462 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:	Sacks: 544, Top: 0 ft., Bottom: 2462 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8525 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 1279, Top: 4020 ft., Bottom: 8525 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2223 ft.		N	N
MESAVERDE	4812 ft.		N	N
CAMEO	7497 ft.		N	N
ROLLINS	8434 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 7/5/2007 Interval Top: 6205 ft. Interval Bottom: 8350 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	5/13/2007	Choke Size:	0.172 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	5/11/2007
Treatment Summary:	3500 GALS 7 1/2% HCL; 822,700# 20/40 SAND; 23,059 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7869 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	7/5/2007	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
CASING_PRESS	2229
MCF_GAS	1211
TUBING_PRESS	2055

Perforation Data:
Interval Top:	6205 ft.	# Of Holes:	132
Interval Bottom:	8350 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	34
Total Gas Produced (MCF)	16550
GOR	486764
GOR Determination	MCFE
Average BOE per Day	7.918
Average MCFE per Day	45.929

Federal Financial Assurance

Tribal Well
