Wellbore #00 Wellbore Classification: GW Status: PR - 10/11/2005 Measured TD: 8667 ft. Vertical TD: 8465 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/11/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20053903 | Expiration Date: | 11/20/2006 | | Proposed Top PZ Location: | Sec:17 Twp: T6S R94W | Footage: 2117 FNL 1895 FEL | | Bottom Hole Location: | Sec:17 Twp: T6S R94W | Footage: 2117 FNL 1895 FEL | | Proposed Depth/Form: | 8552 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: E/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. |
| | |

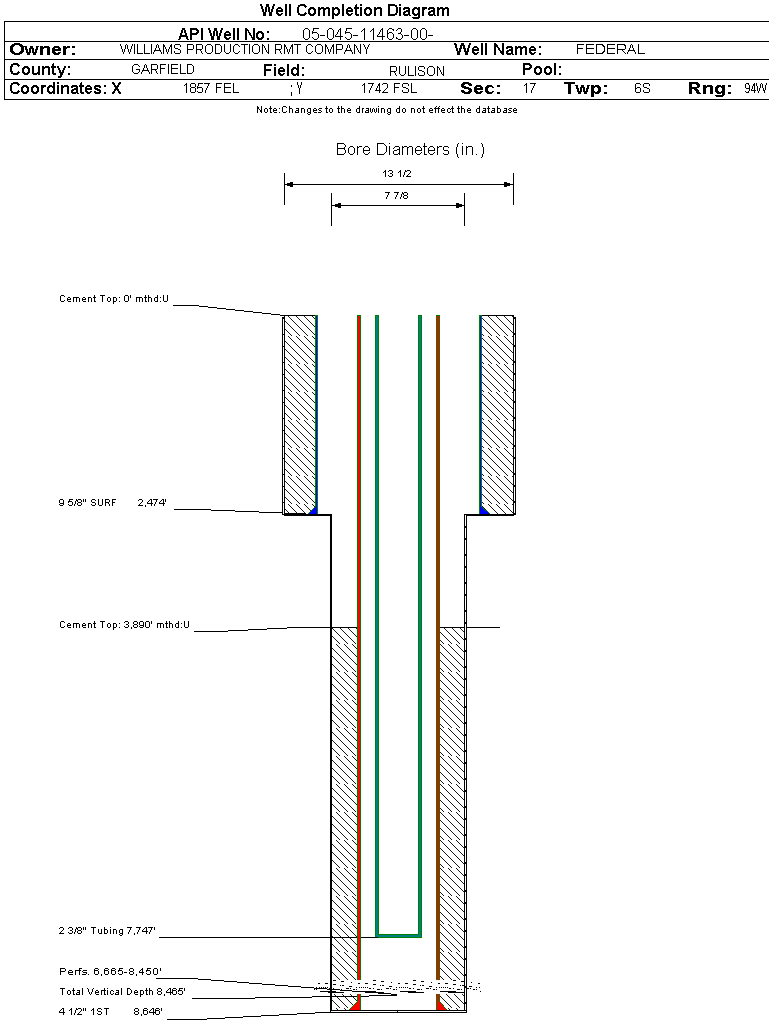

| Wellbore Completed | | Completion Date: | 10/9/2006 | | Spud Date: | 7/22/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8667 ft. | Measured PB depth: | 8613 ft. | | True Vertical TD: | 8465 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:17 Twp: 6S 94W | Footage: 2031 FNL 1891 FEL | | Bottom Hole Location: | Sec:17 Twp: 6S 94W | Footage: 2031 FNL 1891 FEL | | Log Types: | CBL; HRI/SD/DSN; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2474 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 551, Top: 0 ft., Bottom: 2474 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8646 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1097, Top: 3890 ft., Bottom: 8646 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2224 ft. | | N | N | | MESAVERDE | 4814 ft. | | N | N | | CAMEO | 7564 ft. | | N | N | | ROLLINS | 8492 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/16/2007 Interval Top: 6665 ft. Interval Bottom: 8450 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/5/2006 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/4/2006 | | Treatment Summary: | 3000 GALS 7 1/2% HCL; 663,800# 20/40 SAND; 17,966 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7747 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/16/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 1544 | | MCF_GAS | 974 | | TUBING_PRESS | 1412 |
| | Perforation Data: | | Interval Top: | 6665 ft. | # Of Holes: | 109 | | Interval Bottom: | 8450 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 53 |
| Total Gas Produced (MCF) | 18102 |
| GOR | 341547 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.694 |
| Average MCFE per Day | 50.426 |
| Federal Financial Assurance | i | Y |
|
|
