Wellbore #00 Wellbore Classification: GW Status: PR - 4/10/2006 Measured TD: 6778 ft. Vertical TD: 6681 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/10/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20053611 | Expiration Date: | 11/2/2006 | | Proposed Top PZ Location: | Sec:3 Twp: 7S 92W | Footage: 495 FNL 1980 FEL | | Bottom Hole Location: | Sec:3 Twp: 7S 92W | Footage: 495 FNL 1980 FEL | | Proposed Depth/Form: | 6744 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: , Drill Unit: |
| | |

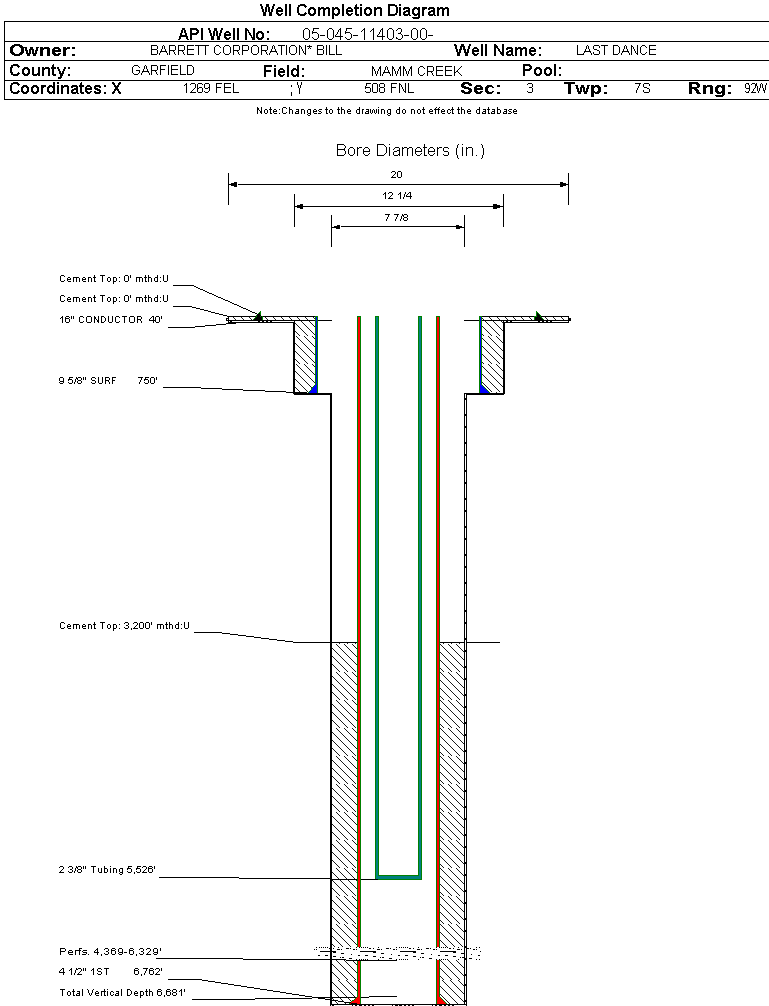

| Wellbore Completed | | Completion Date: | 2/27/2006 | | Spud Date: | 12/19/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6778 ft. | Measured PB depth: | 6719 ft. | | True Vertical TD: | 6681 ft. | True Vertical PB depth: | 6621 ft. | | Top PZ Location: | Sec:3 Twp: 7S 92W | Footage: 260 FNL 1989 FEL | | Bottom Hole Location: | Sec:3 Twp: 7S 92W | Footage: 260 FNL 1989 FEL | | Log Types: | HALLIBURTON SD/DSN/HRI/MICROLOG & PREC,CBL/TEMP LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 750 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6762 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 3200 ft., Bottom: 6762 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 2739 ft. | | N | N | | ROLLINS | 6459 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/10/2006 Interval Top: 4369 ft. Interval Bottom: 6329 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 4/2/2006 | Choke Size: | 0.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/31/2006 | | Treatment Summary: | 27,508 BBLS OF FR WATER, 1,245,738# OF 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5526 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/10/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 53 | | BBLS_OIL | 13 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 53 | | CALC_BBLS_OIL | 13 | | CALC_GOR | 275412 | | CALC_MCF_GAS | 3674 | | CASING_PRESS | 1700 | | MCF_GAS | 3674 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 4369 ft. | # Of Holes: | 162 | | Interval Bottom: | 6329 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 14 |
| Total Gas Produced (MCF) | 9350 |
| GOR | 667857 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.452 |
| Average MCFE per Day | 25.849 |
| Federal Financial Assurance | i | |
|
|
