 Surface Location
 API# 05-045-11378		Well Classification: GW Status: PR - 12/1/2010
Well Name/No:CHEVRON #NG 444-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2010
FacilityID:280841LocationID:335634
County:GARFIELD #045Location:SESE 8 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5620 ft.
Basin:PICEANCE BASIN
Planned Location:792FSL  826 FELLat/Long: 39.533837 / -108.124117Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.533838 / -108.124072Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2010             Measured TD: 7390 ft.    Vertical TD: 7377 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2010
Wellbore PermitDIRECTIONAL
Permit #:20053487 Expiration Date:10/23/2006
Proposed Top PZ Location:Sec: Twp: Footage: 1045 FSL  620 FEL
Bottom Hole Location:Sec: Twp: Footage: 1045 FSL  620 FEL
Proposed Depth/Form:7409 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-28 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:2/9/2006
Spud Date:1/29/2006Spud Date Is:ACTUAL
Measured TD:7390 ft.Measured PB depth:7135 ft.
True Vertical TD:7377 ft.True Vertical PB depth:
Top PZ Location:Sec:8 Twp: 6S 96WFootage: 1049 FSL  594 FEL
Bottom Hole Location:Sec:8 Twp: 6S 96WFootage: 1049 FSL  594 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

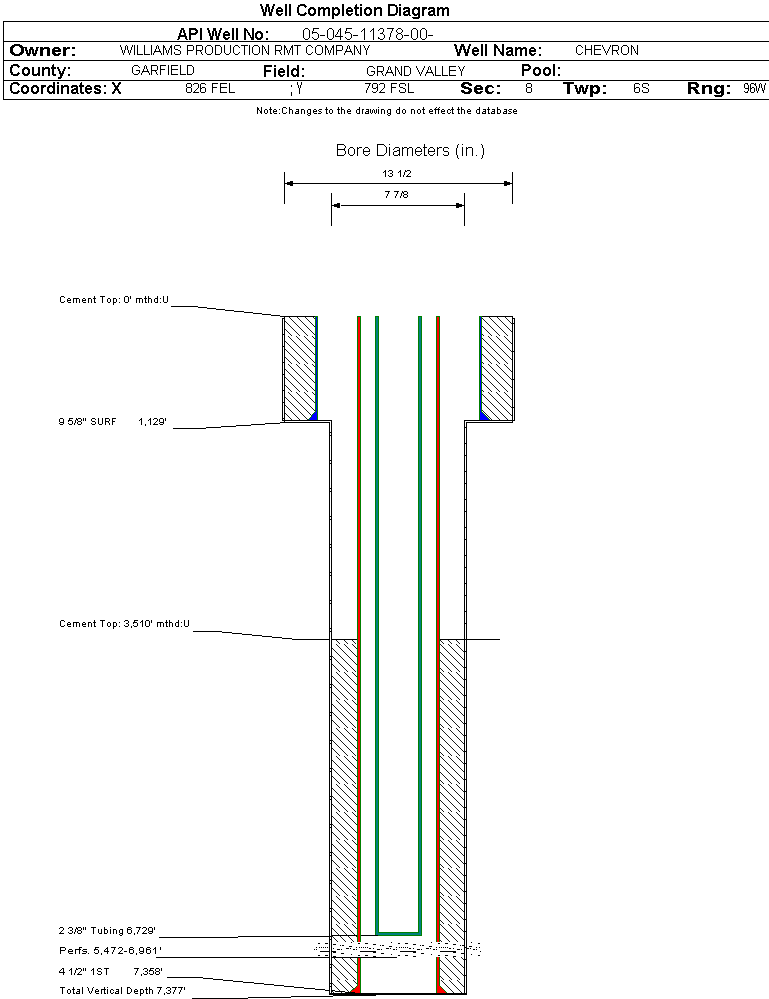

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1129 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7358 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 960, Top: 3510 ft., Bottom: 7358 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2238 ft.NN
FORT UNION2544 ft.NN
MESAVERDE4032 ft.NN
CAMEO6748 ft.NN
ROLLINS7249 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 5472 ft.    Interval Bottom: 6961 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/28/2006Choke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/24/2006
Treatment Summary:1,943 GALS 7.5% HCL; 597,100# 30/50 SAND; 14,047 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6729 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/15/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1106
CASING_PRESS 1049
MCF_GAS 1106
TUBING_PRESS 902
Perforation Data:
Interval Top:5472 ft.# Of Holes:96
Interval Bottom:6961 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)10090
GOR504500
GOR DeterminationMCFE
Average BOE per Day4.816
Average MCFE per Day27.966

 Federal Financial Assurance  i

 Tribal Well  i No
