Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2023 Measured TD: 8966 ft. Vertical TD: 8855 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20053318 | Expiration Date: | 10/20/2006 | | Proposed Top PZ Location: | Sec:30 Twp: 6S 93W | Footage: 292 FNL 1383 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 93W | Footage: 292 FNL 1383 FEL | | Proposed Depth/Form: | 9000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CMEO , Formation: CAMEO , Order: 139-47 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-47 , Unit Acreage: 640, Drill Unit: ALL |
| | |

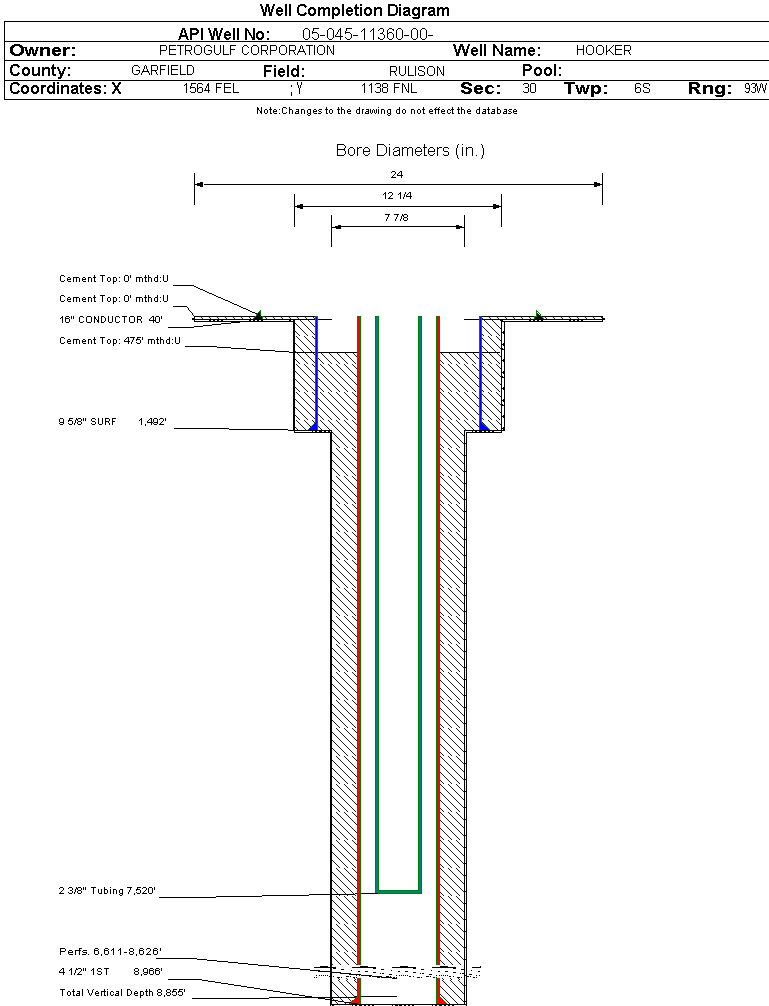

| Wellbore Completed | | Completion Date: | 2/2/2006 | | Spud Date: | 1/16/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8966 ft. | Measured PB depth: | 8966 ft. | | True Vertical TD: | 8855 ft. | True Vertical PB depth: | 8855 ft. | | Top PZ Location: | Sec:30 Twp: 6S 93W | Footage: 292 FNL 1383 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 93W | Footage: 292 FNL 1383 FEL | | Log Types: | CBL/TEMP, PLATFORM EXPRESS TRIPLE COMBO PRESENTATION, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 24, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1492 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 775, Top: 0 ft., Bottom: 1492 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8966 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1595, Top: 475 ft., Bottom: 8966 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4949 ft. | 7922 ft. | N | N | | CAMEO | 7923 ft. | 8744 ft. | N | N |
Formation WFCMC Formation Classification: GW Status: PR - 12/1/2023 Interval Top: 6611 ft. Interval Bottom: 8626 ft.| Completed Information for Formation WILLIAMS FORK-CAMEO COAL | | 1st Production Date: | 6/18/2006 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK-CAMEO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/9/2006 | | Treatment Summary: | SEE ATTACHMENT |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7520 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/18/2006 | Test Method: | ACTUAL FLOW | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 95 | | BBLS_OIL | 3 | | BTU_GAS | 1171 | | CASING_PRESS | 1400 | | MCF_GAS | 1864 | | TUBING_PRESS | 1150 |
| | Perforation Data: | | Interval Top: | 6611 ft. | # Of Holes: | 510 | | Interval Bottom: | 8626 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 61 |
| Total Gas Produced (MCF) | 15639 |
| GOR | 256377 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.549 |
| Average MCFE per Day | 43.775 |
| Federal Financial Assurance | i | |
|
|
